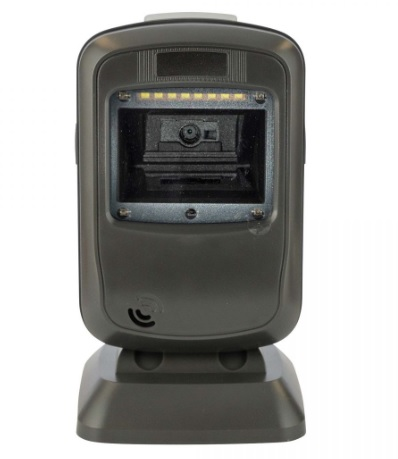

Star Micronics BSD-FR4080
The pictures shown are general images for product BSD-FR4080 and may not be applicable to all part numbers
BSD-FR4080 Presentation Barcode Scanners
The Star Micronics BSD-FR4080 is nearing end of life. It will soon be replaced by the Star Micronics BSD-40U.
The BSD-FR4080 is Star Micronic's entry intro the presentation scanner game. This scanner is capable of reading a variety of barcodes, from 1D barcodes to high-volume 2D barcodes on a screen covered with protective film. Built for efficiency, the switch at the top of the scanner allows users to quickly toggle between normal mode and high-motion-tolerance mode. The scanner’s featured IR sensor enables speedy capture of barcodes, increasing throughput and productivity. Durable and built to last, the scanner’s IP52-rated design protects it from dust, water, and other contaminants. The scanner can also withstand multiple 1.2m drops to concrete.
Highlighted Features- Quick Switch Mode: Effortlessly toggle between normal and high-motion-tolerance modes.
- Superior Motion Tolerance: 2.5m/s motion tolerance and large field of view (horizontal 51°, vertical 32°).
- Infrared Sensor: Automatic scanning increases productivity and speed in dark environments or when distance to the barcode changes.
- IP52-Rated Design: Protected from dust, water, and more.
Can Plug Directly into Star’s mCollection Products (mC-Print2/3 & mPOP®).
| Product Specifications | |
|---|---|
| Image Sensor | 1280×800 CMOS |
| Resolution | ≥3m |
| Depth of Field | EAN-13 10-210mm (13mil), QR Code 10-180mm (15mil) |
| Motion Tolerance | 2.5m/s |
| Reading Angle | Pitch: ±50°, Roll: 360°, Skew: ±45° |
| Imager Field of View | Horizontal 51°, Vertical 32° |
| Dimensions (W x D x H) | 83(W)×81(D)×148(H)m |
| Weight | 293g |
| Drop Specification | 1.2m drops to concrete (for six sides, one drop per side |
| Sealing | IP52 |
| Interfaces | USB |
Star Micronics BSD-FR4080 Reviews
Customer Reviews
| Downloads |
|---|
| BSD-FR4080 Data Sheet Please Call for File |
| Star Presentation Scanner User Guide |
