Elo TouchSystems Elo Pay 10 inch

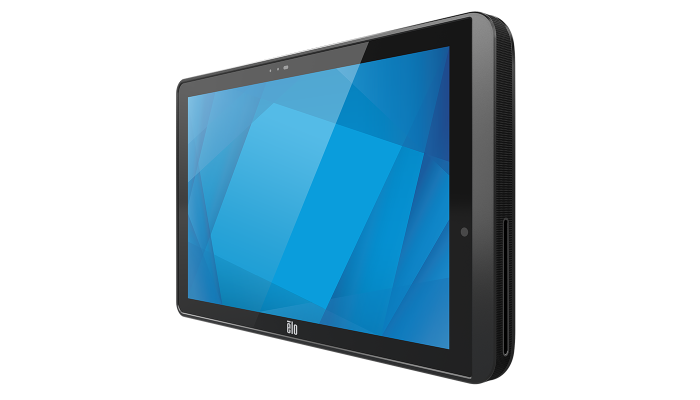

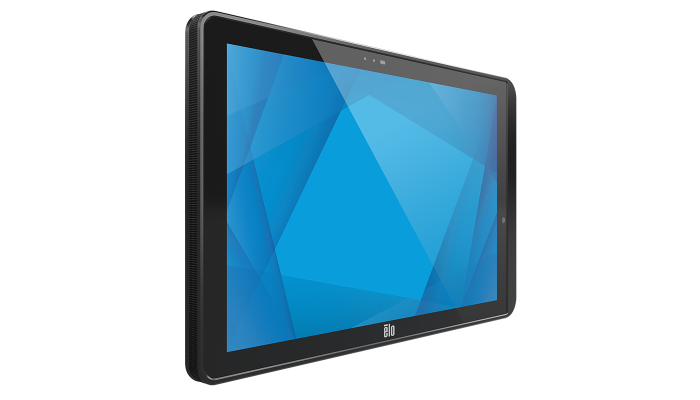

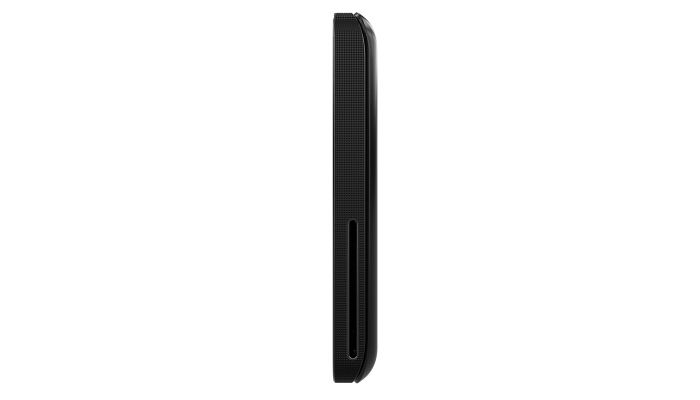

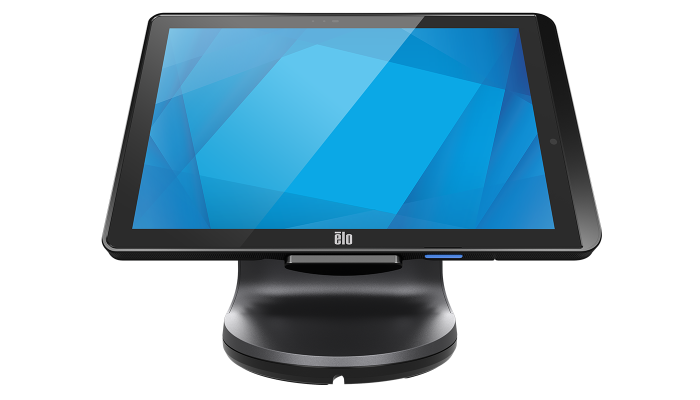

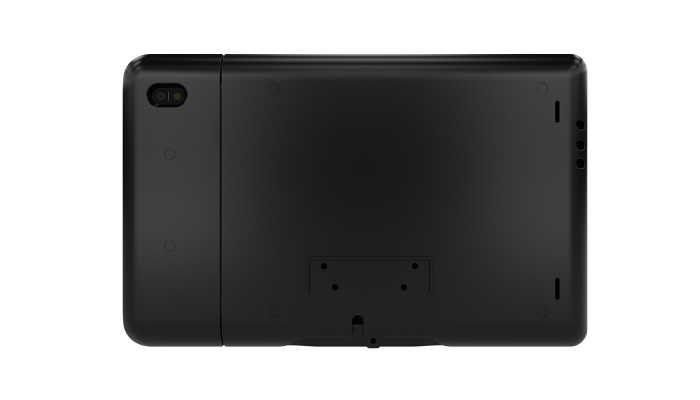

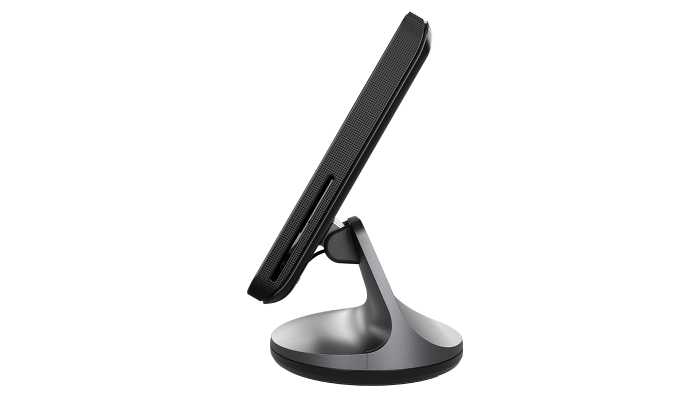

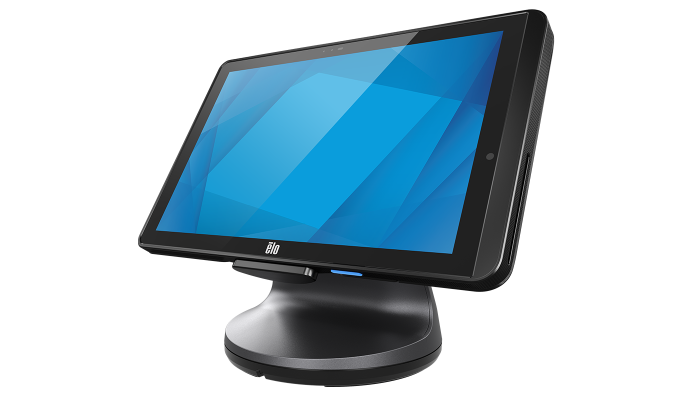

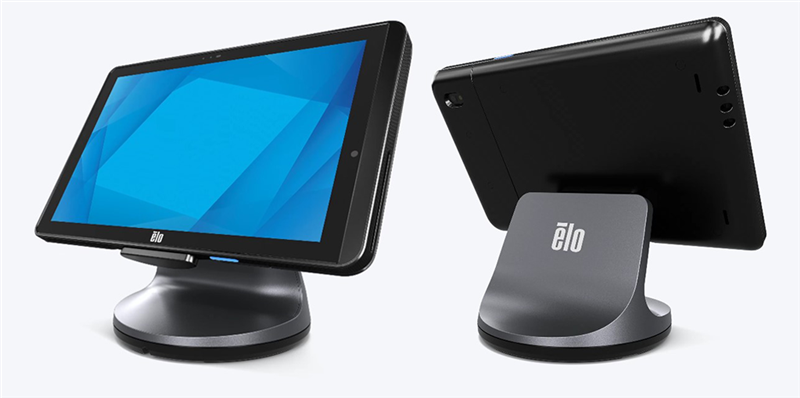

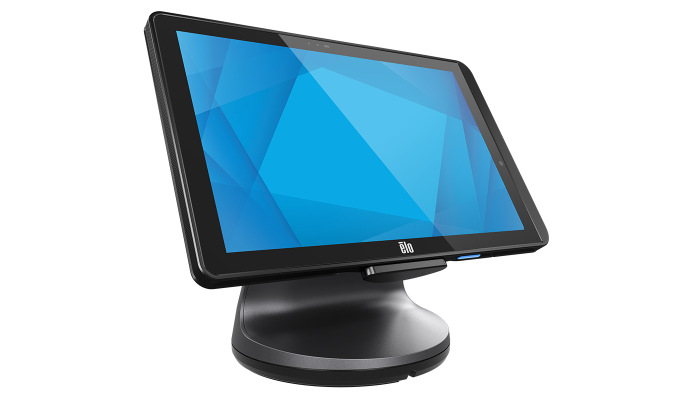

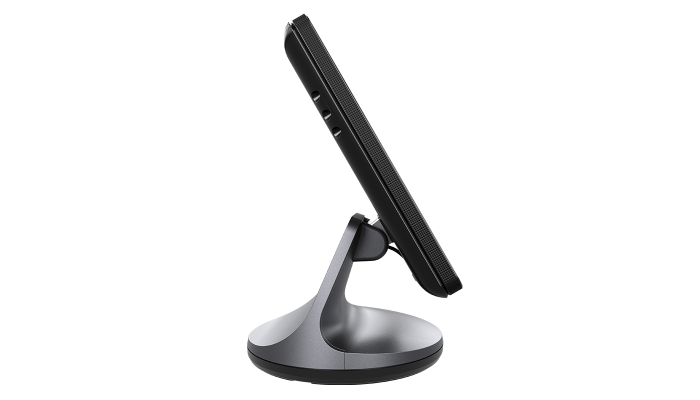

The pictures shown are general images for product Elo Pay 10 inch and may not be applicable to all part numbers
Elo Pay 10 inch POS Computers
Elo Pay 10" integrated payment solution. Featuring a 10.1-inch FHD scratch-resistant touch display, Android 12 OS, and Qualcomm SD660 processor, the Elo Pay 10" delivers unmatched quality, speed, and reliability. With advanced EMV and NFC technologies complemented by PCI/PTS 6.2 certified pin-on-glass functionality, the Elo Pay system simplifies your POS operations, offering efficiency and security for retailers and merchants.
Enjoy the convenience of integrated payment.
Whether your customers have a physical card or contactless via their mobile phone, the Elo Pay 10" POS Terminal accepts all forms of payment.
- EMV - Insert cards with chips.
- NFC - Tap with contactless payments.
- Pin on Glass - Enter your pin directly on the screen.

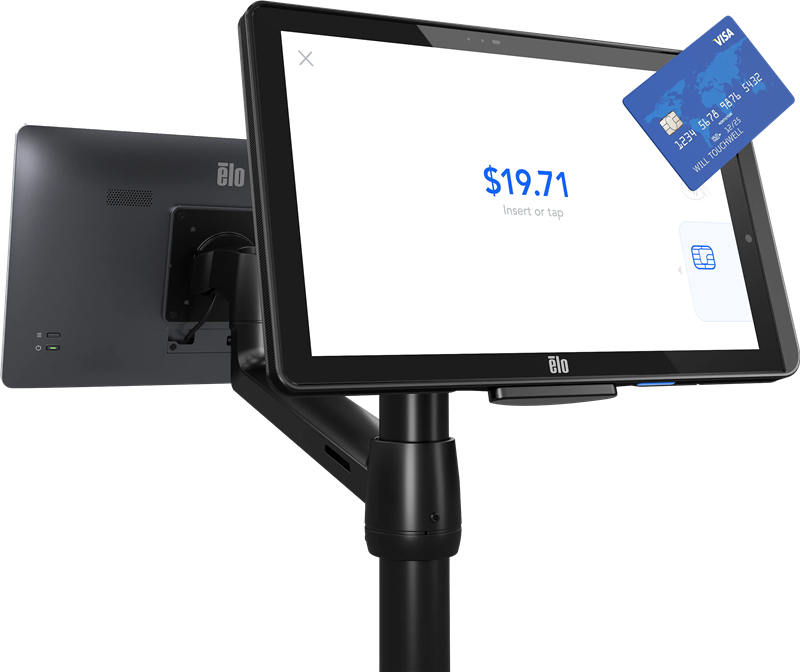

Create a customer-facing interactive payment terminal.
Engineered for commercial use.
The fully integrated Elo Pay 10" POS system is purpose-built to endure commercial environments with features including:
- Chemically Strengthened Glass
- IP54 Rating
- 50,000 MTBF
Get peace of mind with EloCare.
From advance unit replacement to OS 360, EloCare delivers service and support from the people who know your Elo products best.
- Advance Unit Replacement
- Accidental Damage Protection
- Extended Warranty
- OS 360
Quality that is built to last.
We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us - and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.
| Product Specifications | |
|---|---|
| Enclosure Color | Black |
| Processor | Qualcomm Snapdragon 660 2.2GHz Octa-Core Processor |
| Memory (RAM) | 4GB |
| Storage | 64GB |
| Expansion Options | MicroSD card supports up to 1TB SDXC |
| OS | Android 12 with GMS (AOSP Capable)
Planned upgrade to Android 14 available with OS 360 subscription |
| Display | 10.1" Optically Bonded FHD |
| Touchscreen | Projective capacitive with Corning Gorilla Glass
Water rejection Anti-Fingerprint Coating |
| Sensor | Light sensor (automatically adjust backlight brightness)
Accelerometer |
| Resolution | 1920 x 1200 |
| Brightness (typical) | 500 nits |
| Contrast Ratio | 900:1 |
| I/O Ports | USB Type-C: Support display and data |
| Camera | Rear Camera: 8MP Auto-Focus with Flash LED and Flashlight (torch)
Front Camera: 5MP Fixed-Focus with Face Authentication |
| Payment | EMV Contactless ISO 14443-A/B, MiFare, ISO-18092
EMV Chip Card Reader (chip and pin-on-glass) |
| Certifications | PCI-PTS 6.2 (PCI Approval Number: 4-30551) EMV L1 & L2 Visa PayWave Mastercard PayPass Amex Express Pay Discover D-PAS EFTPOS JCB Unionpay Quickpass Interac Mastercard TQM Apple Pay™ Google Pay™ Samsung Pay™ |
| Wireless | IEEE 802.11 a/b/g/n/ac, 2x2 MU-MIMO |
| Bluetooth | Bluetooth 5.0 |
| LED | 1x combination Green/Amber LED for user programmable
1x combination Blue/Red LED for scan, error, or user programmable |
| Keyboard | On screen keyboard |
| Audio | Dual microphone with noise cancellation
Dual speakers |
| Buttons | 2x Programmable buttons
Power button Volume up/down buttons |
| Dimensions | E369331: 10.06" x 8.45" x 7.87" / 255.5 mm x 214.7 mm x 200 mm
E931600: 10.06" x 6.38" x 0.54" / 255.5 mm x 162 mm x 13.7 mm |
| Shipping Box Dimensions | E369331: 14.06" x 10.84" x 11.30" / 357 mm x 275 mm x 287 mm
E931600: 12.68" x 8.54" x 2.91" / 322 mm x 217 mm x 74 mm |
| Weight (Unpackaged) | E369331: 2354g
E931600: 625g |
| Weight (Packaged) | E369331: 5550g
E931600: 1307g |
| Operating Temperature | 0°C to 40°C / 32°F to 104°F |
| Storage Temperature | -20°C to 60°C / -4°F to 140°F |
| Humidity | 5% to 95% non-condensing |
| Regulatory approvals and declarations | UL, FCC (US) - Class B
cUL, IC (Canada) CB (International safety) CE (Europe) - Class B |
| ESD | Class B: 8kV contact, 15kV air |
| Warranty | 1-year |
| OS Support | Bi-monthly Android security updates available with Elo OS 360 |
| What's in the Box | Elo Pay 10" POS Dock and Base Plate (E369331 only) USB Type C Charger (US. EU and UK plugs) 1.8m USB-C Cable (E931600 only) Quick Install Guide |
| Optional Accessories | Stylus - Elo P/N: E120625 Large Hub -Elo P/N: E815235 Small Hub - Elo P/N: E815044 Fixed VESA Mount - Elo P/N: E119228 |
