DataLogic Heron

The pictures shown are general images for product Heron and may not be applicable to all part numbers

Heron Barcode Scanner

The DataLogic Heron has reached end of life. It has been replaced by the DataLogic Heron 3130.

The Heron has been developed by Datalogic in order to satisfy all requirements at the POS, providing high performance and an innovative design suitable for small retail POS applications. The Heron, based on the "INSTINCTIVE READING DISTANCE" concept (from near contact to over 20 cm), includes the "green spot" (Datalogic patent application), which provides "good reading" feedback directly on the code, where the user usually tends to be looking. The stand included in the package allows the reader to be used in hands-free mode. If placed correctly in the stand, the reader beeps and automatically switches to hands-free mode. The green spot remains on to show the operator where to position the code under the Heron for quick and intuitive reading.

  • High first pass rate
  • Intuitive aiming in hands-free applications
  • Datalogic Green Spot technology

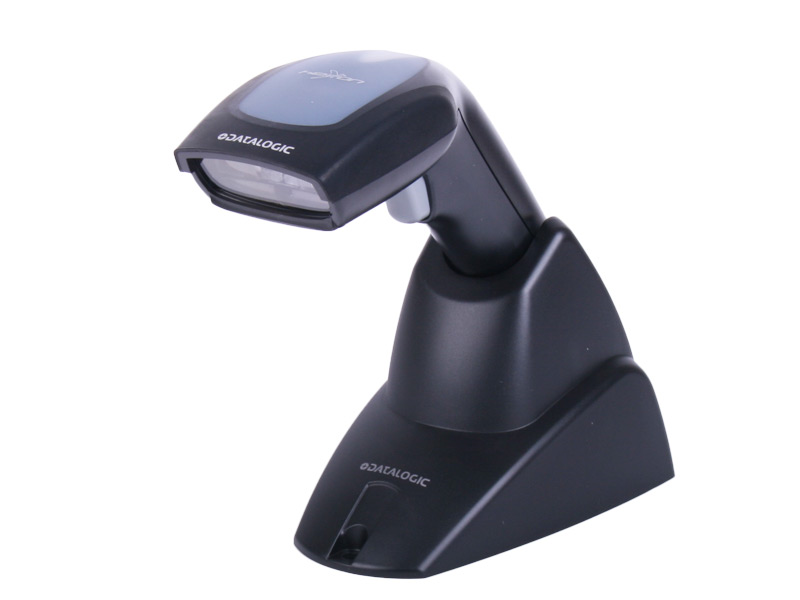

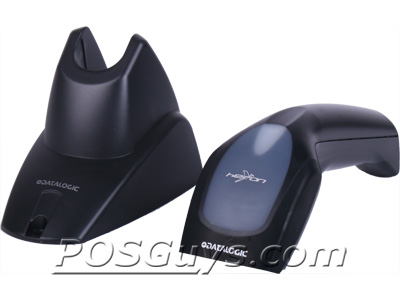

  • Stand included with package
  • Complete data formatting & data editing
  • RSS-14 decoding capability
  • Sunrise 2005 Compliant
  • 5 Year Warranty

  • Product Specifications
    Dimensions 15.2 x 15.3 x 6.8 cm / 6.0 x 6.0 x 2.7 in
    Weight 160.0 g / 5.6 oz
    Color Options Dark Grey
    Interfaces Available RS232
    Keyboard Wedge
    Scan Method CCD Solid State Scanner
    Decoding Capabilities Standard 1D Barcode; RSS Variants
    Mobility/Range Corded
    Scan Rate (Maximum) 256 scans/sec
    Reading Angle Pitch: 75°
    Roll: 30°
    Skew: 70°
    Print Contrast (Min.) 15%
    Typical Depth of Field 5 mils: 3.0 to 11.0 cm / 1.2 to 4.3 in
    7.5 mils: 1.0 to 14.0 cm / 0.4 to 5.5 in
    10 mils: 0.5 to 18.0 cm / 0.2 to 7.0 in
    13 mils: 1.0 to 22.5 cm / 0.4 to 8.8 in
    Indicators LED
    Good Read Spot
    Auto Sense Mode Yes, In Stand
    Operating Temperature 0 °C to 55 °C
    Drop Specification Withstands drops of 1.8 m onto a concrete surface
    Environmental Sealing IP30
    Ambient Light (Max) Up to 100,000 lux
    Warranty 5 Year Warranty
