DataLogic QS6500

The pictures shown are general images for product QS6500 and may not be applicable to all part numbers

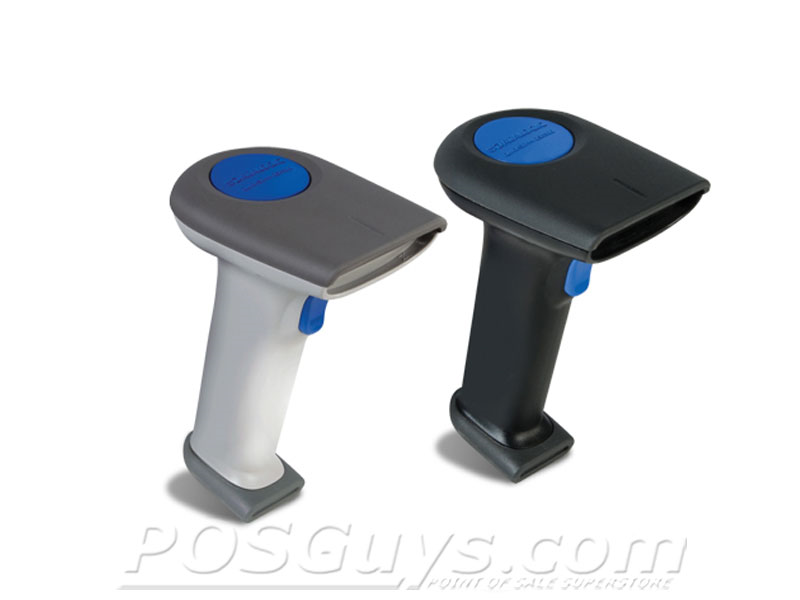

QS6500 Barcode Scanner

The DataLogic QS6500 has reached end of life.

Formerly from PSC, the Datalogic QuickScan 6500 handheld barcode scanner series utilizes the latest linear imaging technology to decode all major barcode symbologies including RSS-14, PDF-417, and UPC.

With outstanding depth of field ranges for scanning mid-density labels and a maximum rate of up to 450 scans per second, the QS6500 delivers outstanding speed and performance at the point of sale.

PSC's QS6500 is available in both 1D and PDF-417 models and all scanners feature interface interchangability with the swap of a cable for easy integration into existing point of sale or PC-based tracking systems.

Product Specifications
Dimensions 6.0 x 2.9 x 3.9" (16.5 x 7.4 x 9.9cm)
Weight 6.4oz (181.4g)
Color Options Black
Light Grey
Interfaces Available USB
Keyboard Wedge
Scan Method Linear Imager
Decoding Capabilities Standard 1D Barcodes; RSS Composites; PDF-417; Micro-PDF
Mobility/Range Corded
Scan Rate (Maximum) 450 scans/sec max
Reading Angle +/-60° Pitch; +/-55° Skew
Print Contrast (Min.) 30% or greater
Typical Depth of Field: 1D Models 5 mil Linear 2.0 - 5.0" / 5.1 - 12.7 cm
7.5 mils: 1.0 - 7.0in / 2.5 - 17.8 cm
10 mils: 0 - 12in/ 0 - 30.5 cm
13 mils / 100% UPC: 0 - 15in/ 0 to 38 cm
20 mils: Up to 24in / 61.0 cm; 40 mils: Up to 40in / 101.6 cm
Typical Depth of Field: PDF Models 5 mil Linear: 2.0 - 4.5" / 5 - 11.4 cm
7.5 mils: 1.0 - 6.0" / 2.5 - 16.2 cm
10 mils: 0 - 10.5" / 0 - 26.7 cm
13 mils: 0 - 13" / 0 - 33 cm
20 mils:Up to 21" / 53.3 cm; 40 mils: Up to 35" / 89 cm

DataLogic QS6500 Reviews

POSGuys Rating:

The QS6500 boasts a read range of 0-12 inches for 10-13 mil label densities, the most flexible among the PSC QuickScan series.

Customer Reviews

Recommended Models

QS6500 PDF Imager, Color: Black with 12 ft Cable and Stand, USB Interface
Please Call

Additional Models

QS6500 1D Imager, Color: Light Grey with 12 ft Cable, and Stand, PS/2 Keyboard Wedge Interface
Please Call
QS6500 PDF Imager, Color: Light Grey with 12 ft. Cable and Stand, USB Interface
Please Call
Color:LIght Grey
QS6500 1D Imager, Color: Light Grey with USB Cable 8-0481-08, and RoHS, (See Accessories for required 4004-0794 Power Supply), USB Interface
Please Call
Color:Light Grey


Hands free stand for QS6500, Color: Black
Please Call Add to Cart
Holder for the QS6500, Color: Grey
Please Call Add to Cart
Holder for the QS6500, Color: Black
Power Supply 110V
110/120VAC Power Supply (Wall Mount) for the PowerScan Series Scanners
