Honeywell 4600g

The pictures shown are general images for product 4600g and may not be applicable to all part numbers

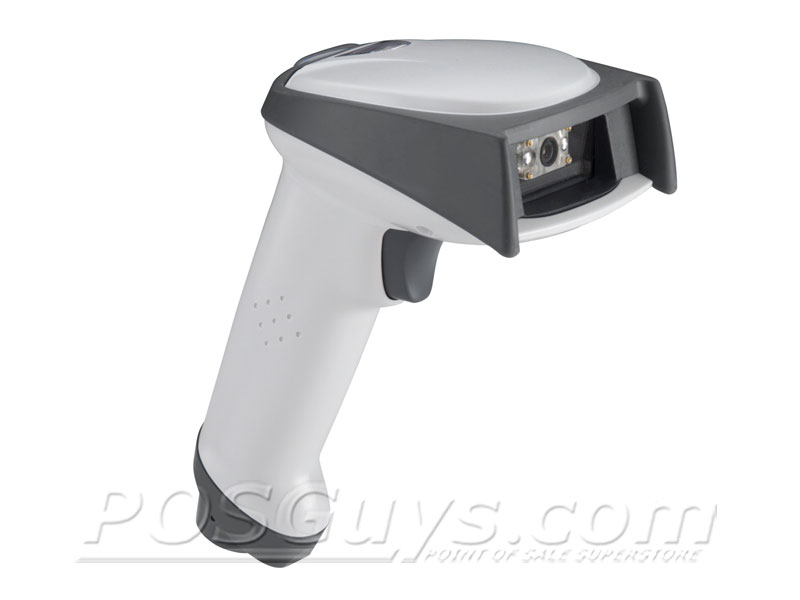

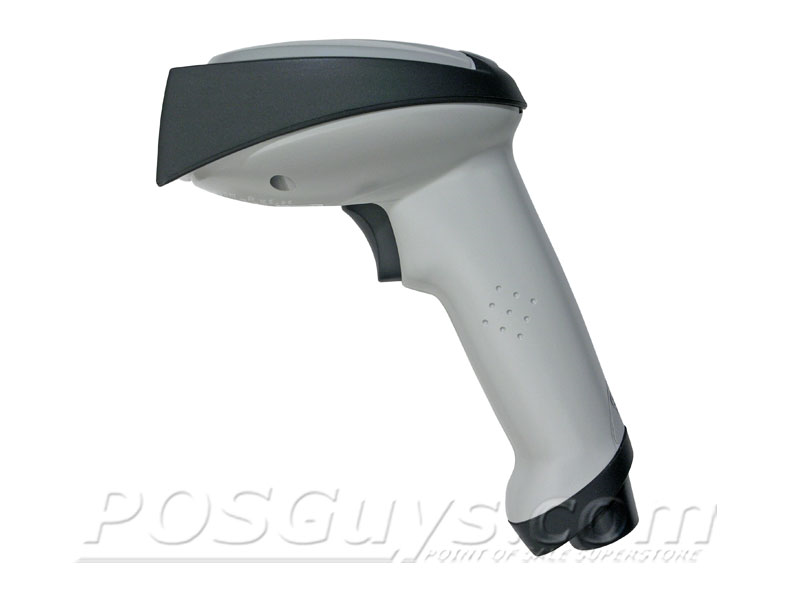

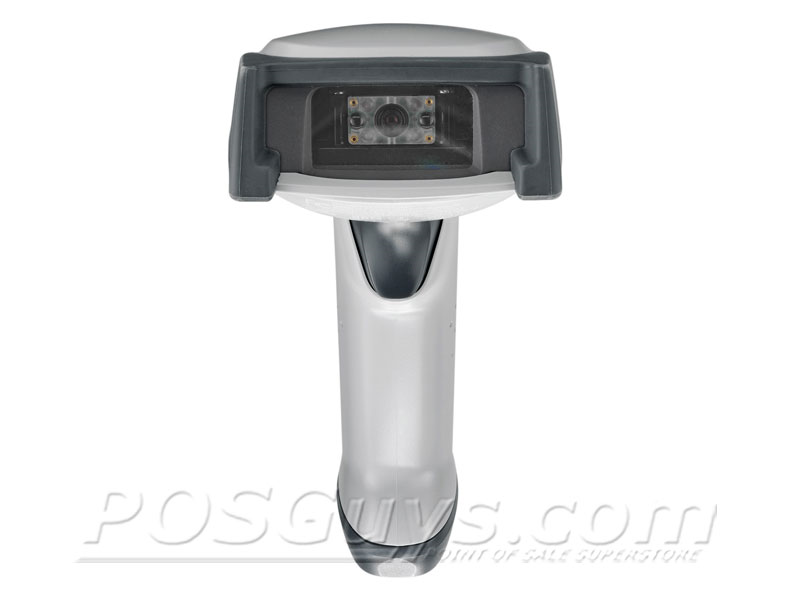

4600g Barcode Scanner

The Honeywell 4600g has reached end of life.

The 4600g 2D area imager from Hand Held Products combines the versatility of area imaging with the speed and cost of linear scanning for a wide range of applications. The 4600 2D is full featured, fast, and cost effective.

Current and future retail and commercial applications will involve much more than linear bar codes. The omnidirectional reading capability of the 4600g allows fast and easy reading. Simply point and shoot. There is no need to align a scan line or wait for a raster beam to open up.

With no moving parts the 4600g is as durable as it is versatile. HHP has a reputation for products that are tough as nails and the 4600g is no exception, and will provide years of service at a low cost.

Product Specifications
Dimensions 135 mm x 81 mm x 157 mm (5.3½ x 3.2½ x 6.2½)
Weight 184 g (6.5 oz)
Color Options LIght Grey
Interfaces Available USB
TTL level RS232
Keyboard Wedge
IBM 46xx (RS485)
Light Pen (Wand) Emulation
Scan Method Area Imager
Decoding Capabilities Reads standard 1D, stacked, 2D and postal symbologies; limited OCR font reading
Mobility/Range Corded
Motion Tolerance Standard: 10 cm/s (4 in/s); Streaming Presentation: 50 cm/s (20 in/s) with 13 mil UPC at optimal focus
Reading Angle 40° Pitch
40° Skew
Print Contrast (Min.) 20% minimum reflectance difference
Typical Depth of Field Standard Range:
8.3 mil 76 mm - 180 mm (3.0 - 7.1")
13 mil UPC 41 mm - 323 mm (1.6 - 12.7")
6.6 mil PDF 102 mm - 145 mm (4.0 - 5.7")
15 mil PDF 46 mm - 246 mm (1.8 - 9.7")
35 mil MC 38 mm - 318 mm (1.5 - 12.5")
Indicators Adjustable Good Read Beep
Auto Sense Mode Yes, In Stand
Image Capture Yes
Drivers License Data Parsing No
Mobile Phone Scanning Capabilites n/a
Healthcare Specific Model 4600GHDH051C-0F00E Yes, with Disinfectant Ready Housing Model
Operating Temperature 0°C to 50°C (32°F to 122°F)
Drop Specification Designed to withstand 50 drops from 1.8 m (6´)
Environmental Sealing IP41
Ambient Light (Max) 100,000 Lux
Stand Yes, Optional
Warranty 5 year factory warranty

Honeywell 4600g Reviews

POSGuys Rating:

“The Handheld Products 4600g imager is our most popular 2D scanner. This scanner can read any variety of barcode be it 1D or 2D. It has a great ergonomic feel and we gave this scanner a 5 star rating based on its durability (no moving parts), ease of use, and functionality (variety of barcodes it can scan).”
