Zebra DS3600-KD

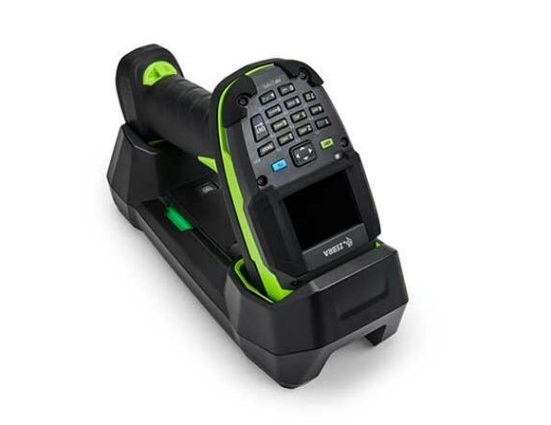

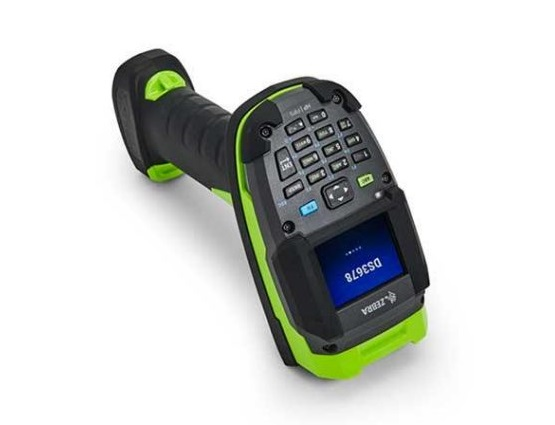

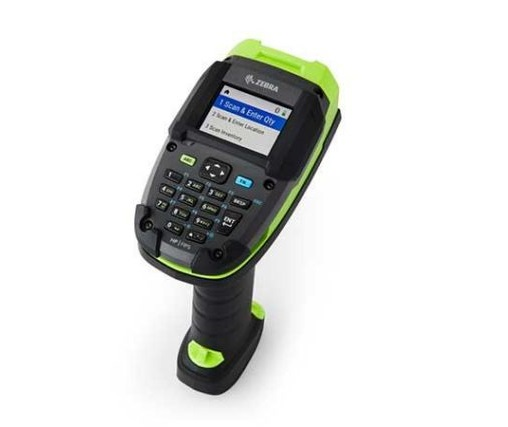

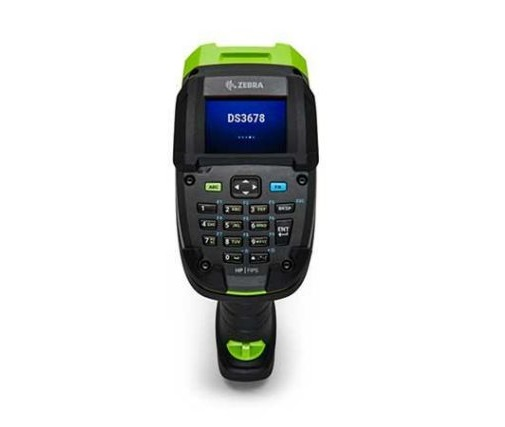

DS3600-KD Product Image

The pictures shown are general images for product DS3600-KD and may not be applicable to all part numbers

DS3600-KD Industrial Barcode Scanner


Part of Zebra’s ultra-rugged family, the DS3600-KD combines unstoppable performance with the versatility of a keypad and color display. Everyday picking, inventory and replenishment tasks can be completed faster and more accurately, as workers can easily key in data, such as adding quantity and location to any scanned barcode. If workers need to pick or ring up multiple quantities, they simply need to scan the item once, then key in the quantity on the keypad. The ergonomic keypad is designed for easy one-handed operation, while the color display offers the modern and intuitive experience that today’s users expect. Five pre-built applications are ready to use right out of the box. Built for your toughest environments, the nearly indestructible DS3600-KD is dust proof, waterproofed to IP65/IP68, can be hosed down and survive 10 ft./3 m drops to concrete. Workers can capture virtually any 1D or 2D barcode, even damaged and dirty barcodes, as fast as they can pull the trigger, from as far as 7 ft./2.1 m away. And that’s not all. This versatile scanner captures photos, intelligently de-skews and optimizes images, automatically parses GS1 label data and captures up to 20 barcodes in a single scan. The PowerPrecision+ battery can power the longest, toughest shifts – capturing over 60,000 barcodes per charge. Zebra’s Virtual Tether helps prevent downtime caused by a misplaced scanner. The AutoConfig cradle lets you instantly switch workflows without having to manually change scanner settings. And Zebra’s unrivaled tools make staging and everyday management easier than ever.
Product Specifications
Dimensions H x W x D 7.5 in. H x 3.1 in. W x 5.6 in. D
Weight 18 oz./510 g (includes battery pack)
Display 2.0 in. QVGA (320 x 240) color display; Corning Gorilla Glass
Keypad Backlit 19-key alpha-numeric, with blue and green shift-key functions
Supported Host Interfaces USB, RS232, Keyboard Wedge Industrial Ethernet: EtherNet/IP, Profinet, Modbus TCP and Std TCP/IP
Battery PowerPrecision+ 3100 mAh Li-Ion rechargeable battery
Scans per Full Charge 60,000+
Imager Field of View Horizontal: 31°, Vertical: 23°
Image Sensor 1,280 x 960 pixels
Skew/Pitch Roll Tolerance +/- 60°; +/- 60°; 0-360°
Decode Ranges See Spec Sheet
Operating Temperature -4° F to 122° F/-20° C to 50° C
Drop Specification Withstands multiple 10.0 ft./3.0 m drops to concrete at room temperature Withstands multiple 8.0 ft./2.4 m drops to concrete at -4° F to 122° F/-20° C to 50° C
Tumble Specifications 7500 3.3 ft./1.0 m tumbles
Environmental Sealing Scanner: IP65 and IP68 per applicable IEC sealing specifications FLB cradle: IP65
Electrostatic Discharge (ESD) Per EN61000-4-2, ±25 KV air discharge, ±10 KV direct discharge, ±10 KV indirect discharge
Radio Range Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)

Zebra DS3600-KD Reviews

POSGuys Rating: Not Rated

Customer Reviews

Recommended Models

DS3600-KD: Keypad and Display, High Performance. Cradle Kit. Includes DS3678-HP2F003VKWW Scanner, CBA-U42-S07PAR Shielded USB Cable, STB3678-C100F3WW Cradle,, PWR-BGA12V50W0WW Power Supply,, CBL-DC-451A1-01 DC Cord, & 23844-00-00R A/C Cord.
$1395.87 Add to Cart
DS3600-KD: Keypad and Display, High Performance. Scanner Only.

Accessories

Shielded Powered USB Cable for Zebra Barcode Scanner: Series A Connector, 7ft. Straight. Filter Adapter Cable (CBL-36-453A-01) required if using DC Line Cord (CBL-DC-375A1-01) or legacy PWRS-14000-148R power supply on STB/FLB cradles
Standard Bluetooth Cradle for 3678 Family Scanners. Cradle Only. Order Power Supply & Line Cords Separately (PWR-BGA12V50W0WW, 23844-00-00R, and CBL-DC-375A1-01)
Power Supply, Requires DC Line Cord CBL-DC-388A1-01 & AC Line Cord 23844-00-00R, Replaces PWRS-14000-148R (Presentation Cradle). EM45 use CBL-DC-388A2-01 for DC Line Cord.
DC Line Cord for Zebra DS3600 Barcode Scanners. 1.5 Meters. Used along with Power Supply PWRBGA12V50W0WW. Not compatible for charging 4-Slot Battery Charger
7.5ft. AC Line Cord, For Use with PWRS-14000-148R and PWR-BGA12V50W0WW
Spare Battery For Zebra 36XX Family Scanners. 3150 mAh. PowerPrecision Plus. Batteries Must be Shipped via Ground Shipping.
DS3600 Series 5 Year, Zebra Onecare Essential. Includes Comprehensive Coverage
DS3600 Series 3 Year, Zebra Onecare Essential. Includes Comprehensive Coverage. Includes Coverage For Cradles.
