ID Tech MiniMag
The pictures shown are general images for product MiniMag and may not be applicable to all part numbers

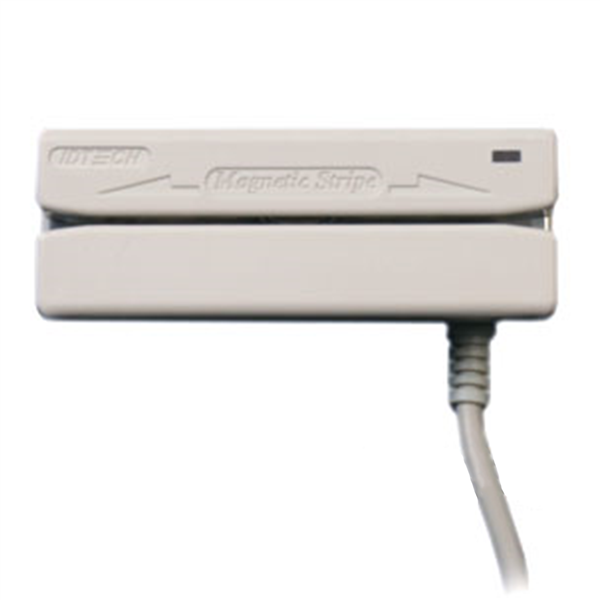

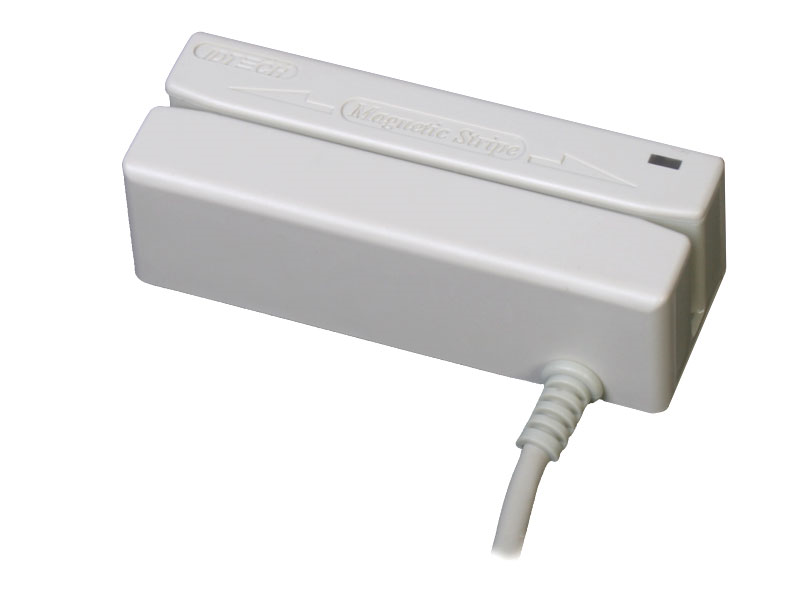

MiniMag Magnetic Card Readers
The MiniMag is a fully intelligent swipe reader that can be programmed to divide, rearrange, edit, and validate fields of entered data. It can also automatically distinguish AAMVA and CA DMV formats. The MiniMag reads up to three tracks of information with a single swipe in either direction. Its standard-length slot makes it easy to use. Both beeper and LED indicators signal a successful read. The MiniMag Intelligent Swipe Reader delivers exeptional functionality and value in the smallest possible package. It can be used as a free-standing unit, or permanently mounted with threaded inserts on the bottom of the reader. TTL, RS-232, keyboard wedge, and USB/Keyboard interfaces are available.
| Product Specifications | |
|---|---|
| Color Options | Black, Beige |
| Interface | Keyboard (PS/2), RS-232, RS-232 Port Powered, USB keyboard, USB HID, USB CDC |
| Track Numbers | Tracks 1-2-3 |
| Programmability | fully programmable (parses data, inserts control characters, adds prefix/suffix characters while maintaining data integrity through vertical and longitudinal error checking) |
| Weight | 4.6 oz |
| Dimensions | 3.54 (l) x 1.34 (w) x 1.1 (h) in. - 90 x 34 x 28 mm |
| Mounting Options | threaded inserts or Velcro - cable exits through side or bottom |
| Warranty | Two Years - Parts and labor |
ID Tech MiniMag Reviews

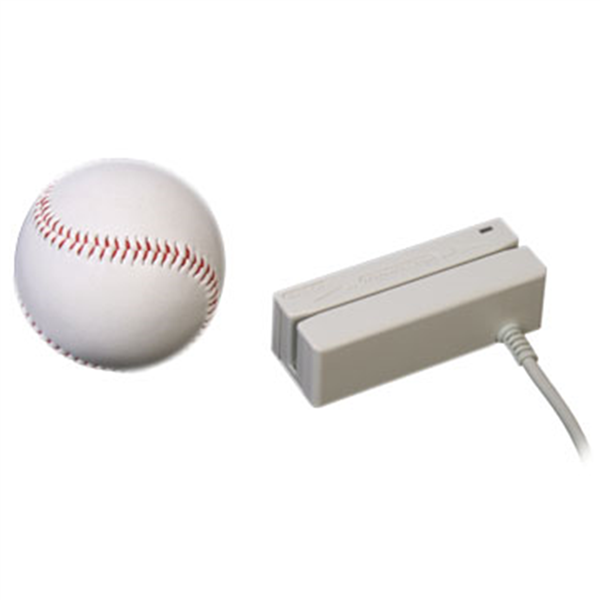

The compact size makes it the best option in a limited space enviroment.
Customer Reviews
| Downloads |
|---|
| Data Sheet |
| Manual |
| Configuration Utility |
| OPOS Driver - Serial Interface |
| OPOS Driver - Keyboard Wedge Interface |
| OPOS Driver- USB Interface |
Frequestly Asked Questions
Recommended Models
MiniMag Swipe Reader, Color: Black with Tracks 1 & 2, USB Interface, Keyboard Emulation
$66.69 Add to Cart
Color:Black
Interface:USB
Tracks:2
MiniMag Swipe Reader, Color: Black with Tracks 1,2 & 3, USB Interface, Keyboard Emulation
$72.79 Add to Cart
Color:Black
Interface:USB
Tracks:3
Additional Models
MiniMag Swipe Reader, Color: Beige with Tracks 1 & 2, Keyboard Wedge Cable
$67.39 Add to Cart
Color:Beige
Interface:PS/2
Tracks:2
MiniMag Swipe Reader, Color: Black with Tracks 1 & 2, Keyboard Wedge Cable
$63.00 Add to Cart
Color:Black
Interface:PS/2
Tracks:2
MiniMag Swipe Reader, Color: Beige with Tracks 1 & 2, USB Interface, Keyboard Emulation
$65.39 Add to Cart
Color:Beige
Interface:USB
Tracks:2
MiniMag Swipe Reader, Color: Beige with Tracks 1 & 2, Power Supply, RS232 Serial Cable
$63.00 Add to Cart
Color:Beige
Interface:Serial
Tracks:2
Accessories:Power Supply
MiniMag Swipe Reader, Color: Black with Tracks 1 & 2, Power Supply, RS232 Serial Cable
$67.00 Add to Cart
Color:Black
Interface:Serial
Tracks:2
Accessories:Power Supply
MiniMag Swipe Reader, Color: Beige with Tracks 1, 2 & 3, Power Supply, RS232 Serial Cabe
$71.40 Add to Cart
Color:Beige
Interface:Serial
Tracks:3
Accessories:Power Supply
MiniMag Swipe Reader, Color: Black with Tracks 1,2 & 3, Keyboard Wedge Cable
$67.00 Add to Cart
Color:Black
Interface:PS/2
Tracks:3
MiniMag Swipe Reader, Color: Beige with Tracks 1,2 & 3, Keyboard Wedge Cable
$71.40 Add to Cart
Color:Beige
Interface:PS/2
Tracks:3
MiniMag Swipe Reader, Color: Beige with Tracks 1, 2 & 3, USB Interface, Keyboard Emulation
$71.40 Add to Cart
Color:Beige
Interface:USB
Tracks:3
MiniMag Swipe Reader, Color: Black with Tracks 1, 2 & 3, Power Supply, RS232 Serial Cable
$67.00 Add to Cart
Color:Black
Interface:Serial
Tracks:3
Accessories:Power Supply
MiniMag Swipe Reader, Color: Black with Track 2, USB Interface, Keyboard Emulation
$63.00 Add to Cart
Color:Black
Interface:USB
Tracks:2
MiniMag Duo (Keyboard Emulation, Tracks 1, 2 and 3, Black)
$64.40 Add to Cart
Color:Black
Interface:Keyboard Emulation
Tracks:3
MiniMag 2 Swipe Reader, Color: Beige with Tracks 1,2 & 3, USB-CDC Interface (Serial Comm Port Emulation - Special Order)
$71.40 Add to Cart
Color:Beige
Interface:USB
Tracks:3
IDMB-336133 MiniMag 2 Swipe Reader, Color: Black with Tracks 1,2 & 3, USB-CDC Interface (Serial Comm Port Emulation - Special Order)
$67.00 Add to Cart
Color:Black
Interface:USB
Tracks:3
MiniMag Swipe Reader, Color: Black with Track 2, USB-CDC Interface (Serial Comm Port Emulation - Special Order)
$73.39 Add to Cart
Color:Black
Interface:USB-CDC
Tracks:2
Previously Available Models
