Opticon PX-20

The pictures shown are general images for product PX-20 and may not be applicable to all part numbers

Buy it now
Lifetime Support
No Returns
PX-20 Features
6ft Drops
2D / QR

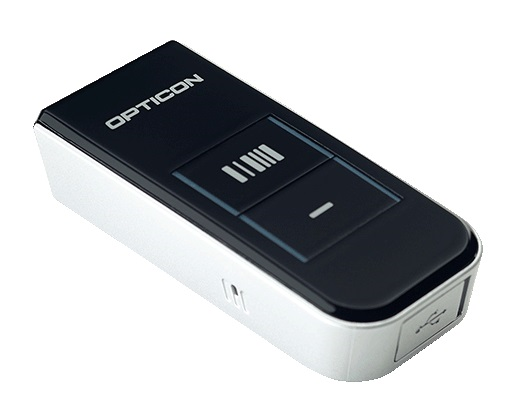

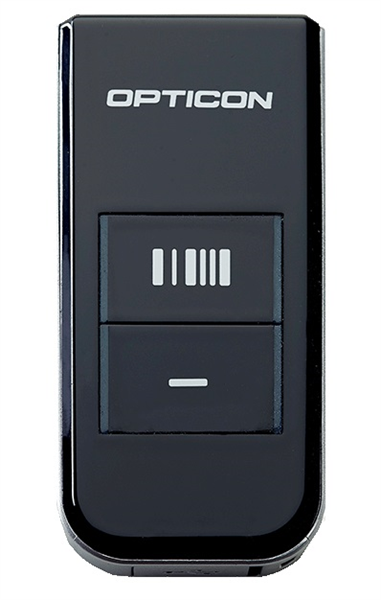

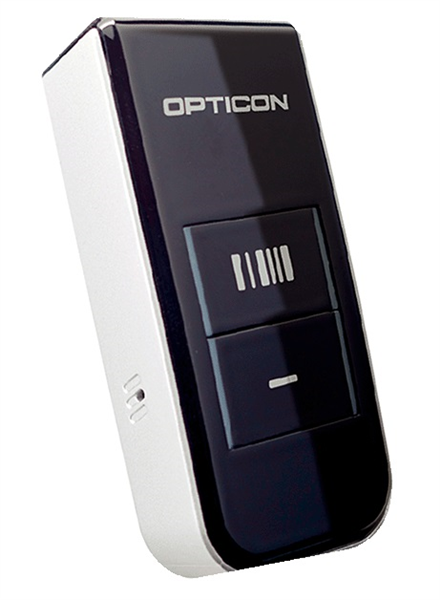

PX-20 Mobile Barcode Scanner

It’s small, it’s durable & it’s reliable

The Opticon PX-20 Bluetooth Companion Scanner (2D Imager) enables real-time barcode scanning into any Bluetooth ready device including Android, Apple iOS and Windows. The PX-20 scanner is extremely small, easily sliding into a pocket or on a keychain making it an ideal solution for field sales and service, retail point-of-sale (POS), inventory management, asset tracking and many more.

Even though it features one of the industry’s most technically advanced 2D CMOS imager scan engines, the PX-20 comes at a very affordable price point that enables any business to integrate barcode scanning into mobile applications. When fully charged, the PX-20 provides an operating time of up to 35 hours, and on occasions where Bluetooth is not available, the USB port enables (cabled) data transfer to any USB device. PX-20 product highlights include:

    Features - PX-20 Bluetooth Companion Scanner (2D)

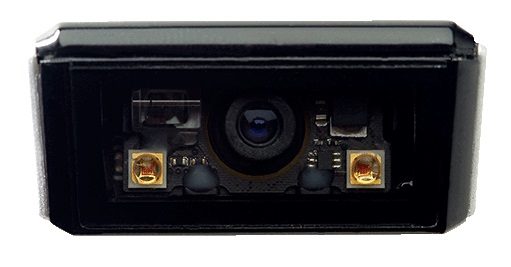

  • 2D CMOS Imager
    Rapidly scans and decodes 1D and 2D barcodes.
  • Compatibility
    Compatible with Android, Apple and Windows host devices.
  • Flexible Connectivity
    Supports Secure Simple Pairing (SSP), Serial Port Profile (SPP) and Human Interface Device (HID) Bluetooth profiles for added flexibility. BT 4.2 and Bluetooth Low Energy (BLE) compliant.
  • A Durable Design
    IP54 rating against dust and moisture, survives multiple 6’ drops to concrete.
Product Specifications
Dimension (W x H x D): 1.34 x 2.8 x 0.59 in (34 x 71 x 15 mm)
Weight Ca. 1.4 oz (40 g) (incl. battery)
Interface Bluetooth 4.2 & MicroUSB
Scan Method CMOS area sensor
Scan Rate (Maximum) Up to 60 fps
Decode Capability 1D, 2D, Postal
Operating Time 20 hours (1 scan/minute including Bluetooth communication), 35 hours (1 scan/minute, Bluetooth not activated)
Battery high capacity Lithium-Ion battery
Drop Specifications 6 ft (1.8 m) drop onto concrete surface
Operating Temperature 14 to 122 ˚F (-10 to 50 ˚C)
Environmental Sealing IP 54
Warranty 2 Years
