MagTek iDynamo 6

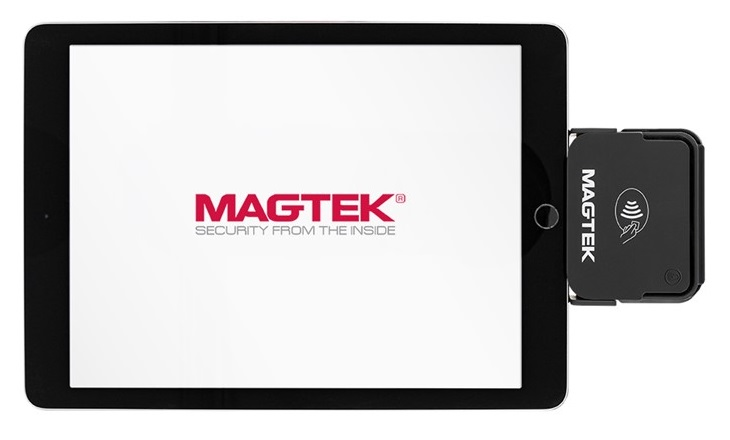

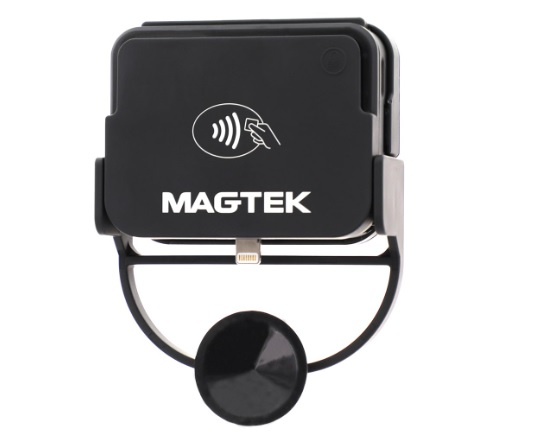

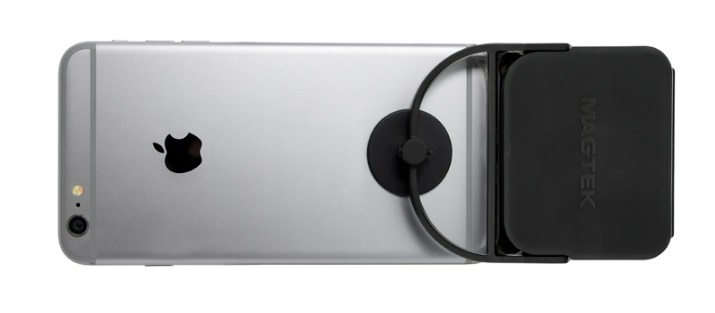

The pictures shown are general images for product iDynamo 6 and may not be applicable to all part numbers
iDynamo 6 Mobile Card Reader
Please Note: This unit requires special encryption and a member of our sales team will reach out for additional information at time of purchase. After encryption, these units are non-cancellable and non-returnable.

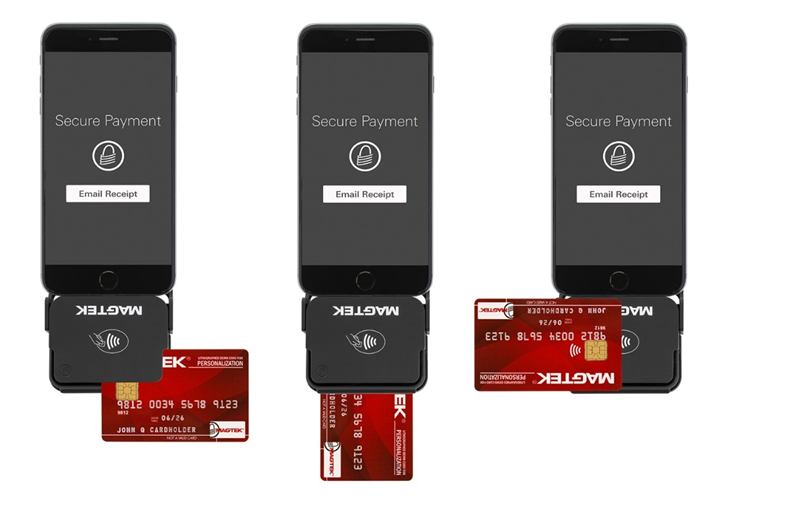

Cafés and restaurants, boutiques and large retailers benefit from iDynamo 6, the next generation of MagTek secure card reader authenticators (SCRAs). iDynamo6 accepts EMV Contactless, NFC payments including enabled mobile wallets including Samsung Pay, Google Pay, Apple VAS, and Apple Pay, magstripe, and EMV Contact Chip transactions. The rechargeable battery pack or connection to a USB 3.0 host, makes all of these transaction types possible. As long as the device is receiving enough power, the battery pack can be removed if needed, to perform the wide variety of transactions. iDynamo 6 delivers a smart solution for companies that need the most flexibility in the smallest form-factor at a great price.
Operating Systems
iDynamo 6 is flexible and is the perfect choice for solutions that run on Windows, Android, or iOS host-devices, with Lightning or USB C connectors depending on the host and operating system. iDynamo 6 has two separate connector configurations to select from:
iDynamo 6 USB-C - Direct mount or cabled connection to Android hosts with USB C port and USB On-The-Go (OTG), to iOS hosts with USB C connector, and to Windows hosts with USB C connector.
iDynamo 6 Lightning - Made for iPhone 12 Pro Max, iPhone 12 Pro, iPhone 12, iPhone 12 mini, iPhone 11 Pro Max, iPhone 11 Pro, iPhone 11, iPhone XS Max, iPhone XS, iPhone XR, iPhone X, iPhone 8 Plus, iPhone 8, iPhone 7 Plus, iPhone 7, iPhone 6s Plus, iPhone 6s, iPhone 6 Plus, iPhone 6, iPad Pro 10.5-inch, iPad Pro 12.9-inch (2nd generation), iPad Pro 9.7-inch, iPad Pro 12.9-inch (1st generation), iPad Air 2, iPad Air, iPad mini 4, iPad mini 3, iPad (5th and 6th generation)
Supported Processors (See Downloadable Datasheet for more information)
| Product Specifications | |
|---|---|
| MSR | Triple Track (TK1/2/3); Bidirectional read; ISO 7810, 7811; AAMVA driver licenses |
| EMV Chip Contact | EMVCo L1 and L2 ISO/IEC 7816 / Terminal type 21 and 24 |
| EMV Contactless | EMVCo L1 and L2, EMV Level 1 /C-2/C-3/C-4/ ISO/IEC 14443 (Type A/B) |
| NFC Contactless / Mobile Wallets | ISO/IEC 14443 |(Type A, Type B)C-6 EMV Contactless, Apple Pay®, Apple VAS®, D-PAS®, ExpressPay®, Google Pay, PayPass™ payWave®, Samsung Pay® |
| MTBF | MSR Swipes - 200k EMV Inserts - 200k |
| Supported Operating Systems | iOS, Android, Windows |
| CPU | Cortex M3 |
| Memory | 1MB |
| Interface | USB Type C with high current USB 2.0 |
| Main battery | Lithium Polymer (LiPo) |
| Power Drawn | Power via USB or Battery. USB: 5 VDC |
| Dimensions (L x W x H): | 2.75 x 2.1 x 0.73 in. without battery pack (70.0 x 53.9 x 18.75 mm) without battery pack 2.8 x 2.24 x 1.3 in. with battery pack (72.72 x 57.8 x 33.0 mm) with battery pack |
| Weight | 1.68 oz (47.6 grams) with battery pack 0.90 oz. (25.4 grams) without battery pack |
| Temperature | 32°F to 113°F (0°C to 45°C) |
