Honeywell Dolphin 7600

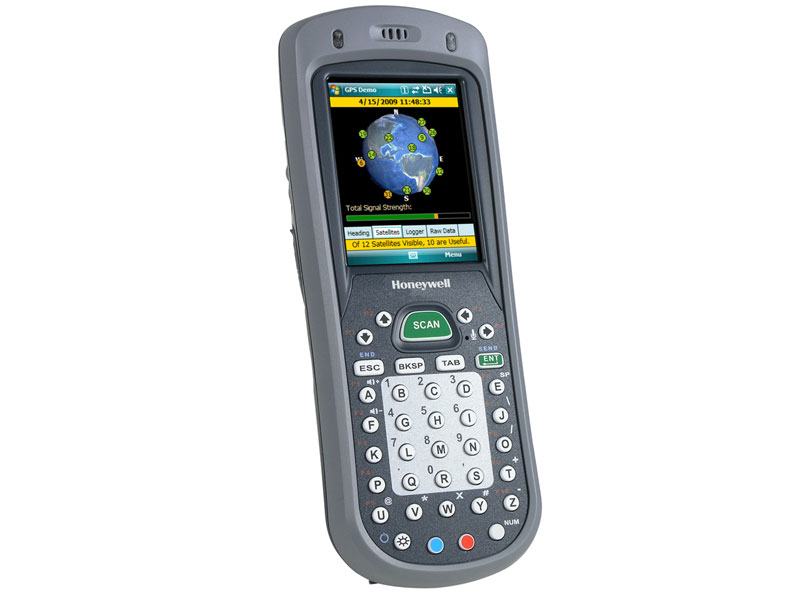

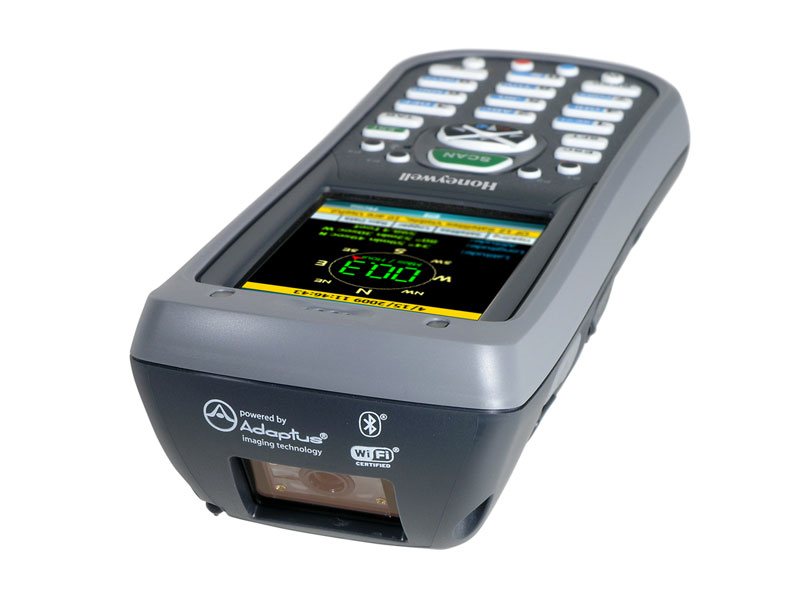

Dolphin 7600 Product Image

The pictures shown are general images for product Dolphin 7600 and may not be applicable to all part numbers

Dolphin 7600 Mobile Computers


The Honeywell Dolphin 7600 has reached end of life. It has been replaced by the Honeywell Dolphin 9700.

The Honeywell Dolphin 7600 mobile computer combines Honeywell's Adaptus imaging technology with world class communications methods, giving any mobile field crew a premier data management solution. The Adaptus 5300SR area imager easily reads common 1D and 2D barcodes, as well as various composite codes, OCR, and postal codes. Communication is key in the field, and Honeywell packed the Dolphin 7600 with the technologies necessary to stay connected. Available with 802.11b/g WLAN, BlueTooth, or even Quad Band GSM/EDGE cellular communications capabilities, the Dolphin 7600 can keep both your field crews and home office up to date on the fly.

Honeywell designed the Dolphin 7600 for minimal downtime, constructing the unit from high impact ABS plastic with a magnesium alloy internal chassis. The durable housing protects it from multiple drops of five feet to concrete, keeping the equipment safe from getting knocked off trucks or knocked out of hands. Sporting an IP54 seal, the Dolphin 7600 is sealed against windblown dust and splashes of water.

Features
  • Windows CE 5.0 or Windows Mobile 6, depending on model
  • 400 MHz Samsung 2440 processor
  • 128 MB RAM, 128 MB Flash, SD/microSD expansion slot available
  • Optional Quad Band: GSM 850/900/1800/1900MHz, GSM release 99, EDGE multi-slot class 12, GPRS multi-slot class 12 Radios
  • Operates in temperatures as low as 14° F

    The Dolphin 7600 comes with charging cable. We recommend 7600-COMM-KIT for a combined charging and communications method.
  • Product Specifications
    Weight 11.7 oz (332 g)
    Dimensions 7L x 2.7W x 1.7D in (178 x 69 x 42 mm)
    Operating System Windows CE 5.0, Windows Mobile 6 Classic or Pro
    Processor 400 MHz Samsung 2440
    Memory 128 MB RAM, 128 MB Flash ROM
    Screen 2.8" TFT LCD at 240 x 320 (QVGA)
    Seal Specification IP54
    Battery Standard: 3.7 V 2200 mAh, Extended: 3.7 V 3240 mAh
    Interface USB, Bluetooth, 802.11a/b/g
    Cellular Radio Quad Band: GSM, GSM release 99, EDGE, GPRS
    Expansion BT & BT/WLAN models: SD slot, GSM models: MicroSD slot
    Operating Temperature 14° to 122° F
    Humidity 5% to 95% non-condensing
    Drop Specification Withstands 5-foot drops to concrete
    Keyboard 29-key numeric or 38-key alpha keyboard
    Scan Method 2D Imager (Adaptus 5300R)
    Color Options Grey

    Honeywell Dolphin 7600 Reviews

    POSGuys Rating:

    Customer Reviews

    Accessories

    Dolphin 7600 Extended Battery (Batteries must be shipped via ground shipping)
    Dolphin 7600 Standard battery (Batteries must be shipped via ground shipping)
    Dolphin 7600 Homebase Charging Cradle with Serial Communication, Includes Power Cables
    6-Foot USB 2.0 Cable: White, A to B
    Dolphin 7600 USB Communications Kit, Includes Charging/Communications Cradle, Power Cables, Interfaces Cable (Part #´s 7600-HBE, 243-006)
    Custom Programming - Asset Management, Inventory Solutions, Route Accounting and Mobile POS
    Please Call
    Stock Manager Mobile Inventory Software Kit - Includes one desktop and one device license.
    Dolphin 7600 - 5-Year Warranty, 3-day turnaround, comprehensive coverage.
    Dolphin 7600 - 1-Year Extended Warranty
    Dolphin 7600 - 3-Year Warranty, 3-day turnaround, comprehensive coverage.
    Dolphin 7600 HomeBase/ChargeBase/NetBase - 3-Year Warranty, 3-day turnaround, comprehensive coverage.
    Dolphin 7600 HomeBase/ChargeBase/NetBase - 5-Year Warranty, 3-day turnaround, comprehensive coverage.
    Please Call
    Dolphin 7600 HomeBase/ChargeBase/NetBase - 1-Year Extended Warranty
    Please Call
    Dolphin 7600 - 2-Year Warranty, 3-day turnaround, Renewal of SMS.
    Please Call

    Previously Available Models

    Previously Available Accessories
