Janam Technologies XG100

XG100 Mobile Computers

The Janam Technologies XG100 has reached end of life. It has been replaced by the Janam Technologies XP Series.

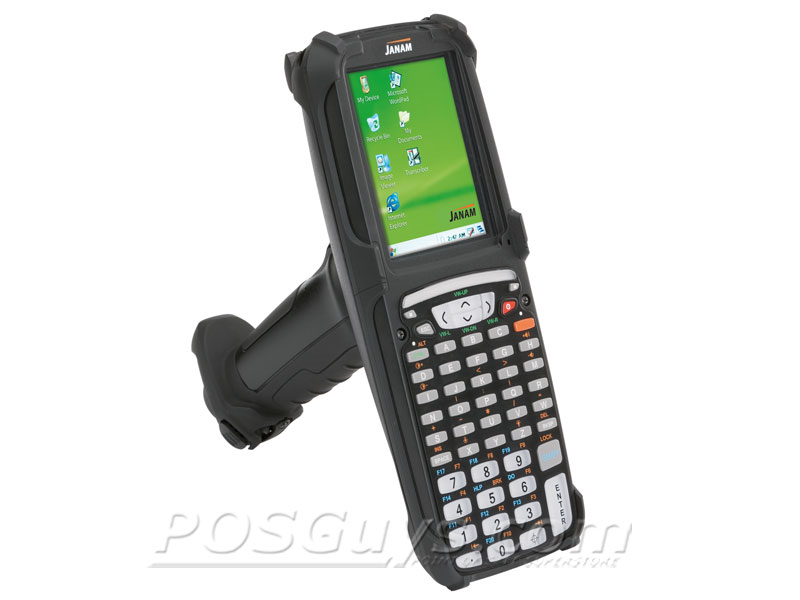

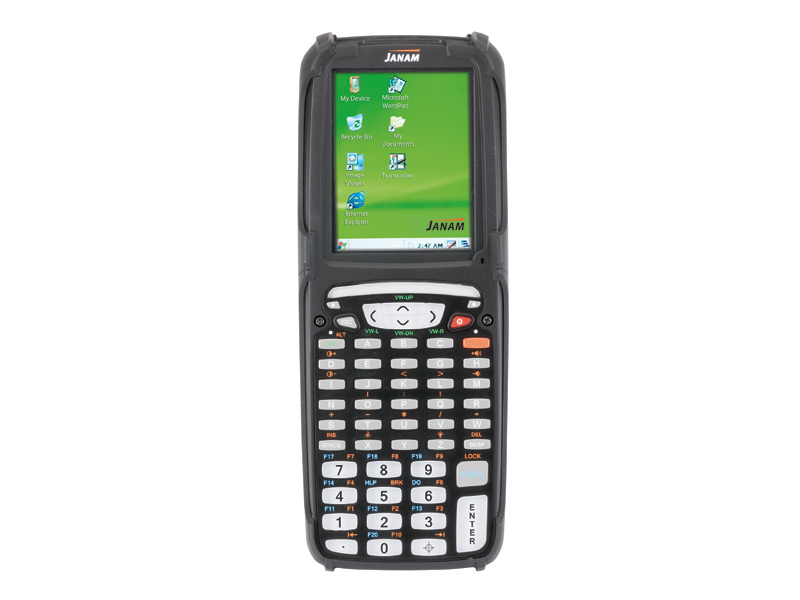

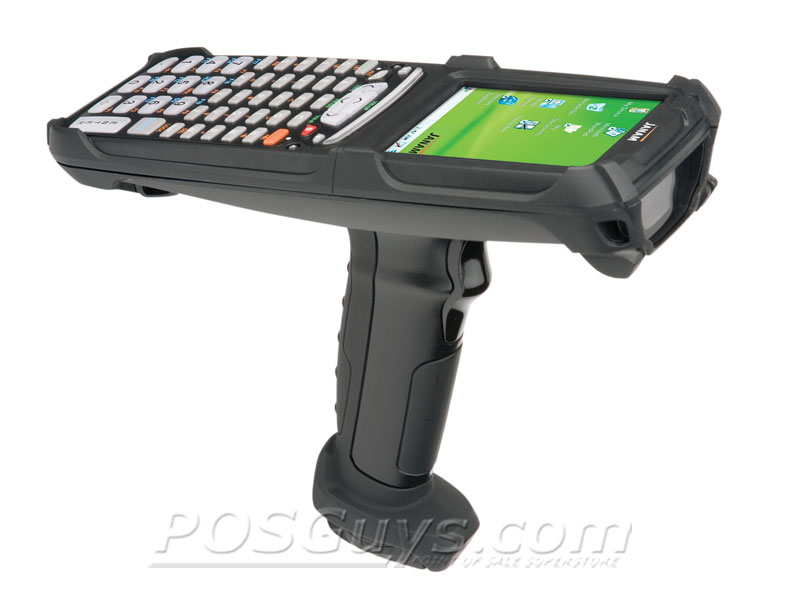

The Janam XG100 mobile computer gives any warehouse or field crew a rugged and low cost solution. One of the thinnest mobile computers on the market, the XG100's battery is stored in the gun-style handle assembly, shifting balance into your hand and giving a better ergonomic feel. The rugged design allows the XG100 to resist multiple 6-foot drops to concrete as well as temperatures as low as 14° F during operation. Designed with Honeywell's Adaptus barcode scanner technology, the XG100 can read 1D and 2D barcodes easily and aggressively, and the LEDs on the head and tail of the unit provide quick visual cues for successful scans while in loud environments.

Features

624 MHz Marvell XScale PXA320 processor

Windows CE 6.0

256 MB RAM, 256 MB Flash ROM

3.7" QVGA LCD Display

Available with 42-key and 52-key layouts, including terminal emulation keypads (5250, 3270, VT)

The XG100 does not ship with charging or communications cables. We recommend purchasing XG100-COMM-KIT.

Product Specifications
Weight	24.3 oz (689 g) - including battery
Dimensions	7.24H x 3.51W x 9.07L in (183.78 x 89.05 x 230.44 mm)
Operating System	Windows CE 6.0 Windows Mobile 6.1
Processor	624 MHz Marvell PXA320
Memory	256 MB RAM, 256 MB Flash
Screen	3.7" TFT LCD at 240 x 320 (QVGA)
Seal Specification	IP64
Battery	7.4 V, 2500 mAh Li-ion
Interface	USB Bluetooth 802.11b/g
Expansion	MicroSD Slot
Operating Temperature	14° to 122° F
Humidity	5% to 90% non-condensing
Drop Specification	Withstands 6-foot drops to concrete
Keyboard	42-key, 52-key, or terminal emulation (5250, 3270, VT)
Scan Method	Linear Imager or 2D Imager
Color Options	Black
