Elo TouchSystems 2770L
The pictures shown are general images for product 2770L and may not be applicable to all part numbers
2770L POS Touch Screen Monitor
The Elo 2770L 27-inch Full HD touchscreen monitor delivers a commercial-grade interactive solution with a minimalistic design to fit any space. Backed by a three-year warranty, the compact 2770L offers a durable, energy efficient TouchPro® PCAP touchscreen with clear or anti-glare scratch resistant glass surface options, increased viewing comfort with low blue light and flicker free features, dual built-in speakers, VGA, DP and HDMI video connectors. With a clean design aesthetic available in black and white and flexible mounting options, the 2770L touchscreen is well-suited for POS, interactive digital signage, self-service, document signing and more.

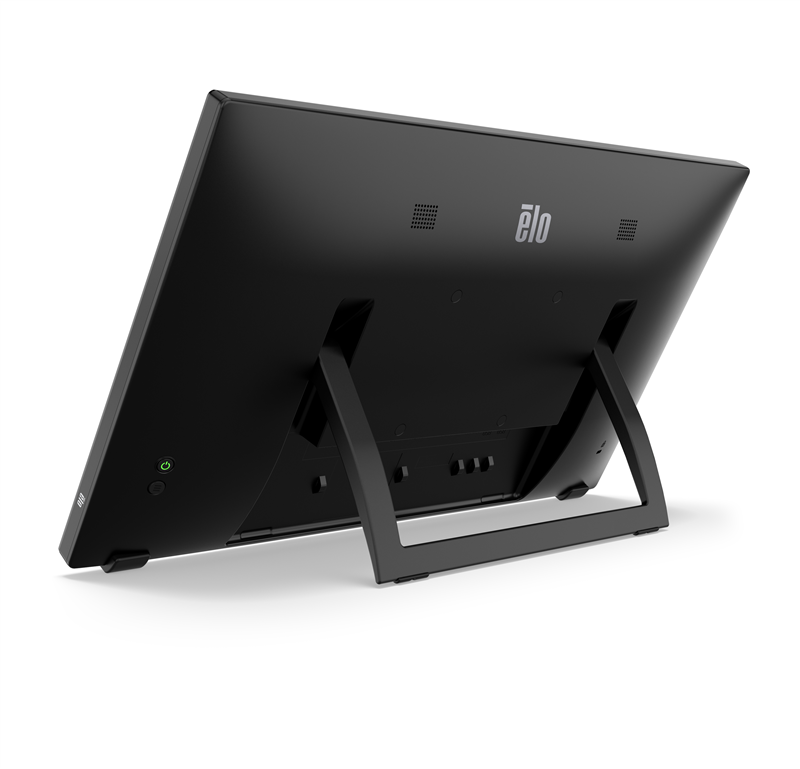

Features- Flexible stand - from 20 to 70°, place the display at the angle you want or collapse for VESA mounting.
- Durable IK07 design with scratch resistant surface.
- Up to 70% reduction in bezel width compared to similar models.
- Narrow border touchscreen with edge-to-edge glass
- Low blue light & Flicker free
- Energy Star 8.0 certified power efficiency
| Product Specifications | |
|---|---|
| Diagonal Size | 27" / 685.8 mm |
| Touch Technology | TouchPro PCAP |
| Aspect Ratio | 16:9 |
| Active Area | 23.54" x 13.24" / 597.888 mm x 336.312 mm |
| Display Resolution | 1920 x 1080 @ 50, 60Hz More Supported. See Spec Sheet for more. |
| Viewing Angle | Horizontal: 89°/89° or 178° total; Vertical: 89°/89° or 178° total |
| Brightness | Panel: 300 nits; with TouchPro PCAP: 270 nits |

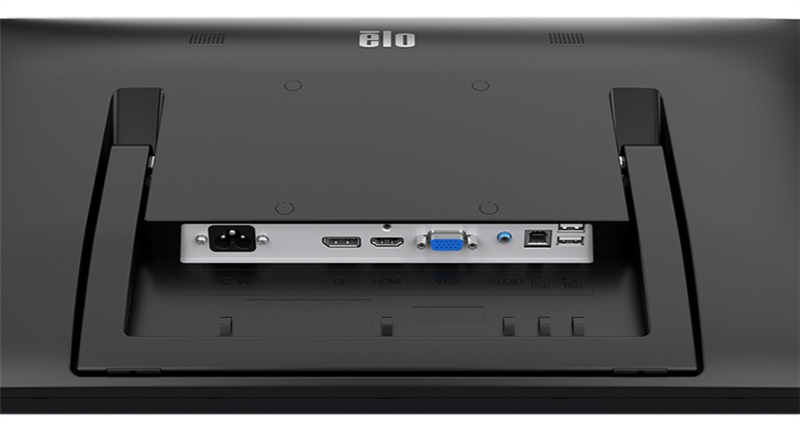

| IO Ports | AC Input (IEC60320 C6), Audio in/out, VGA, HDMI, DisplayPort, USB 2.0 Type B, 2x USB 2.0 Type A |
| Dimensions | 24.65" x 14.68" x 1.72" / 626.2 mm x 372.8 mm x 43.8 mm |
| Weight | 13.89 lbs / 6.3 kg |
| Operating Temperature | Operating: 0° C to 40° C / 32°F to 104°F, Storage: -20° C to 60° C / -4°F to 140°F |
| MTBF | 50,000 hours demonstrated |
| Mounting Options | VESA 4-hole 100mm mounting interface on rear of unit |
| Warranty | 3 years |
| Impact Protection | IK07 |
| What's In the Box | 2770L Touchmonitor
Quick Install Guide HDMI cable Touch USB cable NA Power cable EU Power cable EEI Label (EU) 2x EEI Label (UK) 2x Replace foot cover 5x Cable tie |
