MicroTouch Mach Series
The pictures shown are general images for product Mach Series and may not be applicable to all part numbers

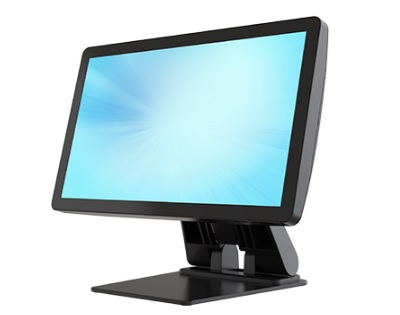

Mach Series POS Touch Screen Monitor
The Mach Series of desktop touch monitors are designed to bridge the gap between consumer aesthetics and the next generation of interactive commercial technologies. Available in a 15-inch, 21-inch and 24-inch screen size, the Mach Series is engineered for durability and performance.
New to the Mach Series is an optically bonded touch screen. This drives industry leading optical clarity, picture quality and touch targeting while increasing durability. With the screen's advanced etched anti-glare process, you'll benefit from improved light dispersion and wear overtime. Ranging from bright retail environments to harsh industrial applications, this display has the versatility and performance that sets the standard. Featuring 4 x USB-C peripheral connections and a versatile I/O design, this display is a perfect fit for a variety of applications.
Highlighted Features
- Size: 15.6" / 21.5" / 23.8" TFT LCD
- Maximum Resolution: 1920 x 1080
- Aspect Ratio: 16:9
- Video Port: 1 x HDMI (up to 1920 x 1080 @60Hz)
- Touch Interface: USB-HID (Type C)
Product Specifications | |
---|---|
Touch Screen | Projected Capacitive |
Touch Interface | USB-HID (Type C) |

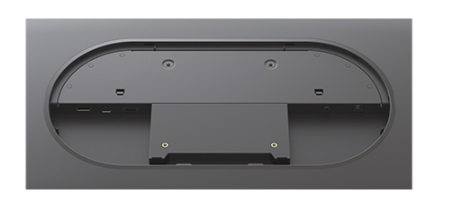

USB Ports | 1 x USB-C (ALT mod for DP video/power acceptance), 4 x USB-C (peripheral connection), 1 x USB 3.1 Type A |
Video Port | 1 x HDMI (up to 1920 x 1080 @60Hz) |
Power Supply | 60W External AC Power Adaptor (100VAC ~240VAC, 50/60Hz) |
Construction | Plastic, Glass, SECC Metal |
Environmental seal | IP65 – Front only |
Dimensions (H x W x D) | 15.6" - 14.88″ x 8.95″ x 1.26″ (monitor only) 21.5" - 20.29″ x 12.08″ x 1.61″ (monitor only) / 20.29″ x 12.08″ x 4.39″ (with stand) 23.8" - 22.51″ x 13.44″ x 1.66″ |
VESA Mount Capable | 100 x 100 mm |
Operating Temperature | 0˚C ~ 40˚C, 20% ~ 80% RH. Non-Condensing |
