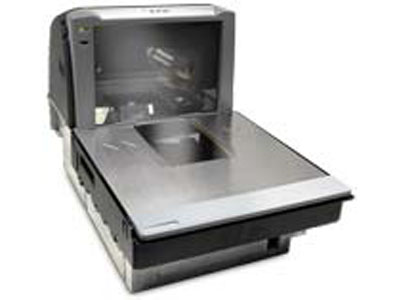

DataLogic Magellan 8500

Magellan 8500 Presentation Barcode Scanners

The DataLogic Magellan 8500 has reached end of life.

The Datalogic Magellan® 8500 is the highest performing scanner/scanner-scale available for large volume point-of-sale applications. It is the first scanner to use Datalogic's new, ground breaking SurroundScan™ technology to aggressively scan all 6 sides of an item. Competitive dual-plane scanners can only read 4 or 5 sides at once but the Magellan® 8500 can simultaneously read the bottom, top, and all four sides of store items. With SurroundScan, a bar code in virtually any orientation can be read with the first pass. It has never been easier, faster, or more ergonomic to scan at the POS!

The Magellan® 8500 also incorporates FirstStrike™, Datalogic's most advanced decoding software. It enables the reading of torn, poorly printed, and disfigured labels of all types. FirstStrike also supports all of the most popular symbologies, including Reduced Space Symbology (RSS) and is able to autodiscriminate all supported symbologies for added flexibility.

Click Here for Additional Warranty Information

Product Specifications
Dimensions Length:
8500 Short Scanner: 16.5 in (421.9 cm)
8501 Long Scanner: 20.0 in (50.8 cm)
8502 Long Scanner/Scale: 20.0 in (50.8 cm)

All Models: 11.5 (29.2 cm) W x 7.0 (17.8 cm) H (Above Counter) x 5.0 (12.7 cm) D (Below Counter)
Weight 8500 Short Scanner: 18.0 lbs (82 kg)
8501 Long Scanner: 20 lbs (9.1 kg)
8502 Long Scanner/Scale: 26.0 lbs (11.8 kg)
Color Options Grey
Interfaces Available IBM 46XX
Scan Method Omni-Directional 6-Sided Laser Scanning
Decoding Capabilities Standard 1D Barcodes
Mobility/Range In-Counter Scanner
Scan Rate (Maximum) 6,400 lines/sec.
Reading Angle 360° 6 Sided Reading
Scale Capacity 30.0 lbs. / 9.99 kg or 15 kg (host dependent)
Scale Max Static Weight 150 lbs. / 68 kg
Scale Minimum Legal Weight .01 lb. / 0.005 kg
Indicators LED
Auto Sense Mode Yes
Operating Temperature 50° to 104° F / 10° to 40° C
Storage Temperature -40° to 158° F / -40° to 70° C
Warranty 1 Year Manufacturer

DataLogic Magellan 8500 Reviews

POSGuys Rating:

Customer Reviews

Add a customer product review

Recommended Models

Magellan 8500 Scanner/Scale. Color: Grey with Long DLC Glass, Power Supply, and RS232 Interface with Cable. No Display.
Please Call
  • color: Grey
  • interface: RS-232
Magellan 8500 Scanner/Scale. Color: Grey with Long LLT Glass, Power Supply, and IBM & USB Interface with Cable.
Please Call
  • color: Grey
  • interface: USB IBM
Magellan 8500 Scanner Only. Color Grey with Long Sapphire Glass, Power Supply, IBM & USB Interface. No Display, No Cable.
Please Call
  • color: Grey
  • interface: USB IBM


E-M8500W/S-2 Magellan 2-Year Extended Warranty (must be purchased within 15 days of scanner purchase)
Please Call
E-M8500W/S-3 Magellan 3-Year Extended Warranty (must be purchased within 15 days of scanner purchase)
Add to Cart
Q-M8500W/S-2 Magellan 2-Year Quick Replacement (Next Day Turnaround) Warranty (must be purchased with 15 days of scanner purchase)
Please Call
8-0730-04 RS232 Serial Cable, 15 Feet, DB9 Female, PC D-SUB 9-Pin for the Magellan
Add to Cart
8-0731-02 Port 9B/IBM Cable, 4 Pin, ROHS (15 Feet)
Add to Cart
8-0863-02 Magellan USB Interface Cable, 15 Feet, Requires Power Supply 11-0286
Add to Cart
11-0286 US Power Supply Kit for Magellan 8400 (Includes Power Supply and Line Cord)
Add to Cart

Previously Available Accessories

7-0751 Power Supply and A/C Line Cord
Please Call
8-0732-01 USB Cable Assembly, IBM, USB and E/P, ROHS (15 Feet)
Please Call
