Zebra DS457

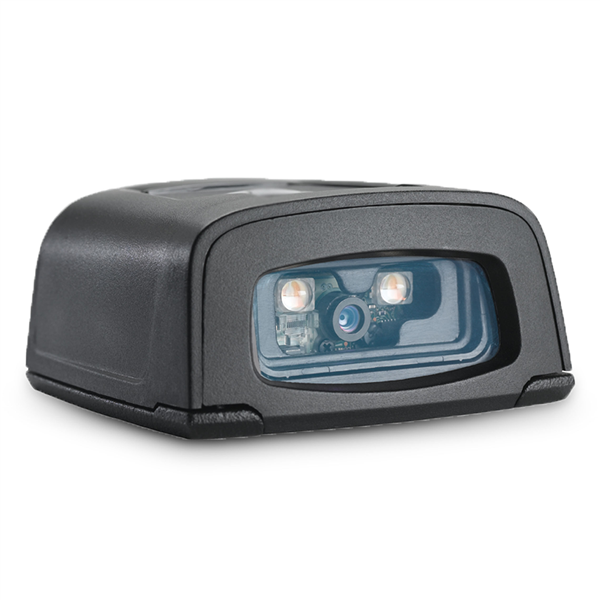

DS457 Product Image

The pictures shown are general images for product DS457 and may not be applicable to all part numbers

Buy it now
Lifetime Support
15 Day Return Period
DS457 Features
2D / QR
Color Options

Dark Grey

DS457 Presentation Barcode Scanners

The Motorola DS457 barcode scanner offers aggressive 2D imaging in a tiny design, ideal for airport check-in, fast paced retail, or manufacturing environments. Available as a standard range, high density, or drivers license parsing imager, the DS457 has a model uniquely designed to meet your needs.

The DS457 can be triggered either via autosense mode, a button on the top of the scanner, or optional trigger jack, giving you the freedom to mount the barcode scanner virtually anywhere. The DS457 is a slight 2.3" x 2.44", easily mounted without detracting from your day-to-day operations.

The DS457 is built on Motorola's Blockbuster SE4500 scan engine, ensuring fast scanning of any barcode. With the ability to scan retail barcodes from up to 15.3" away, the DS457 is a fantastic choice for keeping retail lines moving smoothly. Motorola's blockbuster scan engine can also read barcodes off LCD displays, making the DS457 great for airport check in or mobile couponing. If you are looking to future proof your business's data collection, the DS457 is right barcode scanner for you.

  • Available in Standard Range, Drivers License Parsing, or High Density versions
  • Bright central dot improves aiming
  • Can scan in direct sunlight
  • IP54 seal protects from dust & water
    Part Number Breakdown
  • DS457-SR: Standard Range Imager, 1.5" to 15.3" scan range for 100% UPC-A
  • DS457-DL: Drivers License Parsing, 1.5" to 15.3" scan range for 100% UPC-A
  • DS457-HD: High Density Scanning, 1.7" to 8.3" scan range for 100% UPC-A
Product Specifications
Dimensions 2.44" x 2.3" x 1.15"
Weight 3.9 oz
Color Options Dark Grey
Interfaces Available USB
RS-232 Serial
Scan Method 2D Imager
Decoding Capabilities Reads standard 1D, PDF, 2D, Postal and OCR symbologies
Mobility/Range Corded
Typical Depth of Field 5 mil (1D): 1.3 – 8.1 in
7.5 mil (DataMatrix): 2 – 6 in
10 mil (DataMatrix): 1.5 – 8.4 in
13 mil (1D): 1.5 – 15.3 in
Indicators LED
Auto Sense Mode Yes
Image Capture Yes
Mobile Phone Scanning Capabilities Yes
Ambient Light (Max) 96,000 Lux
Drivers License Data Parsing Yes, On Select Models
Operating Temperature -4° to 122° F
Storage Temperature -40° to 158° F
Drop Specification Withstands 30-inch drops
Environmental Sealing IP54
Warranty 3 Year Warranty
