Star Micronics SP500 Series

The pictures shown are general images for product SP500 Series and may not be applicable to all part numbers

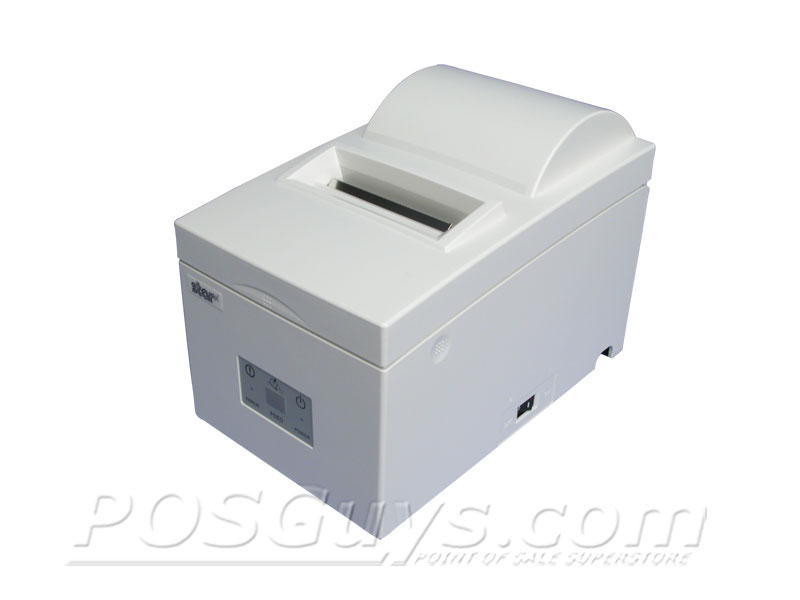

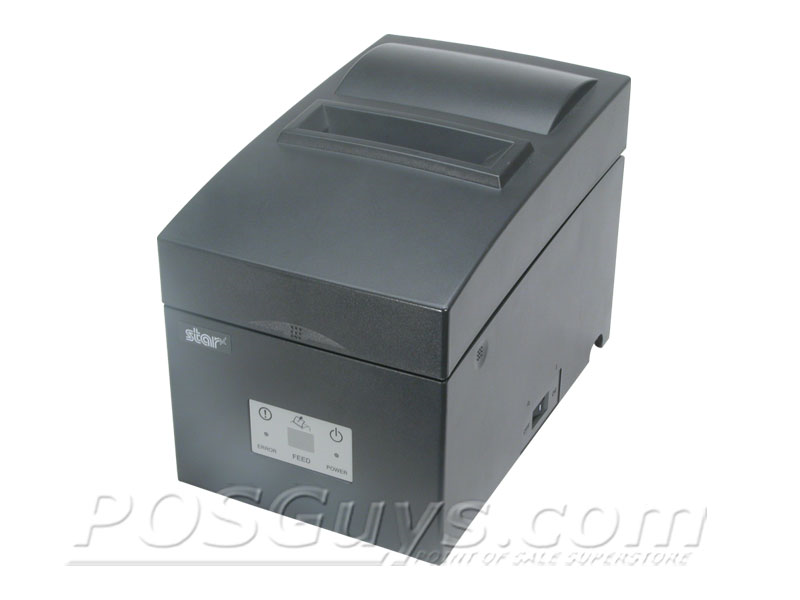

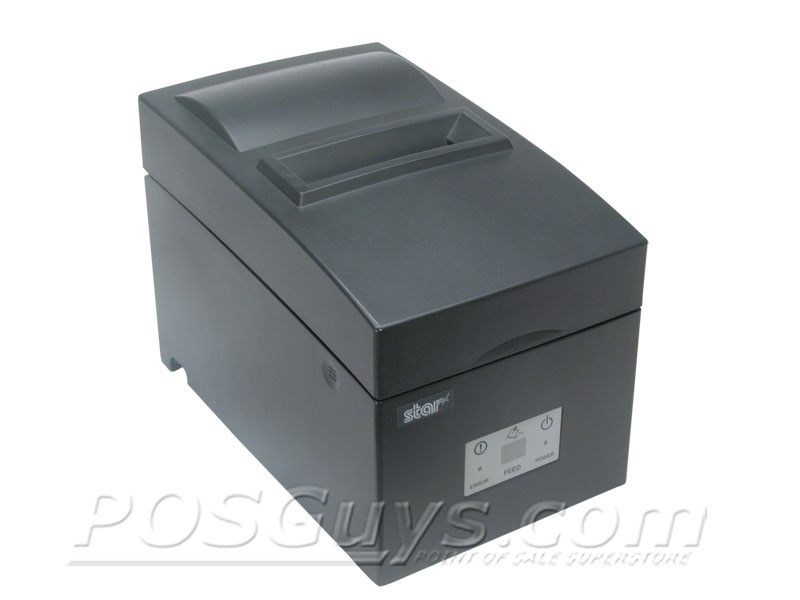

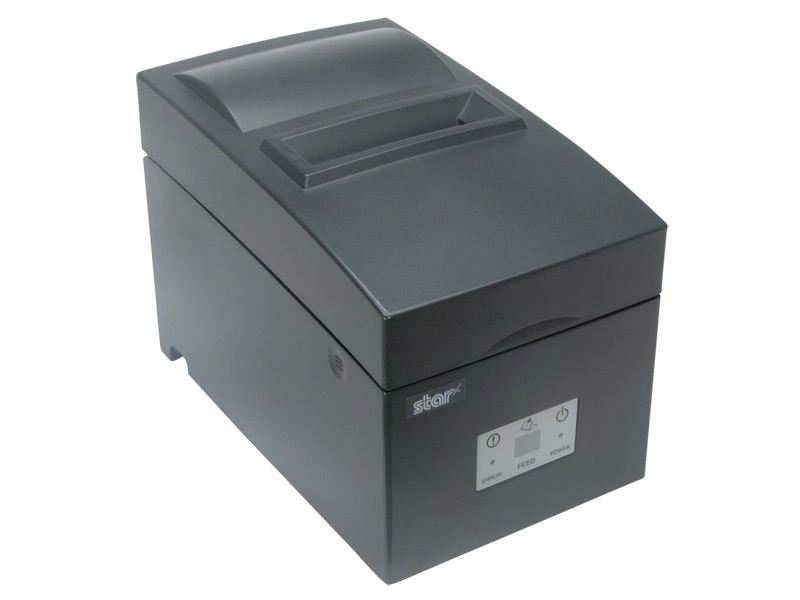

SP500 Series Receipt Printer


The Star Micronics SP500 Series has reached end of life. It has been replaced by the Star Micronics SP700.

This product replaces the older Star Micronics DP8340.

The compact-sized SP500 single color receipt printer is ideal for retail point of sale, restaurants and kiosks.

Available in two models, the Star SP500 features a standard tear bar and a convenient auto cutter. Choose from two popular interface choices, parallel (IEEE1284) or serial (RS232C), and two exterior colors, charcoal gray or putty. All models have an internal UPS.

Among the fastest dot matrix receipt printers on the market, the SP500 Series sports print speeds at over 4 lines per sec (at 42 columns per line) and includes an advanced print head for increased reliability over the long haul.


Click Here for Additional Warranty Information
Product Specifications
Dimensions 140W x 225D x 163H mm
Weight Tear bar model: 2.0 kg - Auto cutter model: 3.2 kg
Color Options Dark Grey, Light Grey
Interface Serial, parallel, USB, ethernet
Print Method 9-pin, serial impact dot-matrix
Print Speed 4.2 Lines per second (40 columns)
Emulation Star Mode, ESC/POS™
OPOS Compatible Yes
Character Set 95 Alphanumeric, 46 International, 128 x 40 Graphic
Character/Line 16.9 / 14.1 cpi (character per inch)
Graphics Printing Yes
Operating Temperature 32°F - 104°F (0°C - 40°C)
MCBF 22,000,000
Print Head Life 100 Million characters
Auto Cutter Lifespan 300,000 cuts
Paper Dimensions 76 mm standard width (57 mm with paper guide), 85 mm maximum diameter
Paper Thickness 0.07 to 0.010 mm
Two Color Printing Capabilities No
Sensors paper out, paper low, cover open, black mark
Auto Cutter Optional
Mac Compatible No
In The Box Ribbon Cartridge, User Manual, Paper Guide, Power Switch Cover, Power Cable, Ferrite Core (Ethernet Model)

Star Micronics SP500 Series Reviews

POSGuys Rating:

Customer Reviews

Frequestly Asked Questions

Recommended Models

Star SP512MU42-120 GRY Impact Printer, Color: Grey with Tear Bar and Power Supply, USB Interface
Please Call
Color:Grey
Interface:USB
Autocutter:No
Star SP542MU42-120 GRY Impact Printer, Color: Grey with Auto Cutter and Power Supply, USB Interface
Please Call
Color:Grey
Interface:USB
Autocutter:Yes
Star SP512MC42 GRY Impact Printer, Color: Grey with Tear Bar and Power Supply, Parallel Interface
Please Call
Color:Grey
Interface:parallel
Autocutter:No
Star SP512MD42 GRY Impact Printer, Color: Grey with Tear Bar and Power Supply, Serial Interface
Please Call
Color:Grey
Interface:Serial
Autocutter:No
Star SP542MC42 GRY Impact Printer, Color: Grey with Auto Cutter and Power Suppy, Parallel Interface
Please Call
Color:Grey
Interface:parallel
Autocutter:Yes
Star SP542MD42 GRY Impact Printer, Color: Grey with Auto Cutter and Power Supply, Serial Interface
Please Call
Color:Grey
Interface:Serial
Autocutter:Yes

Additional Models

Star SP512MU42-120 Impact Printer, Color: Putty with Tear Bar and Power Supply, USB Interface
Please Call
Color:Putty
Interface:USB
Autocutter:No
Star SP512MC42 Impact Printer, Color: Putty with Tear Bar and Power Supply, Parallel Interface
Please Call
Color:putty
Interface:parallel
Autocutter:No
Star SP542MC42-120R GRY Impact Printer, Color: Grey with Auto Cutter, Power Supply, Journal Take-up, Parallel Interface
Please Call
Color:Grey
Interface:parallel
Autocutter:Yes
