Brother TD-2

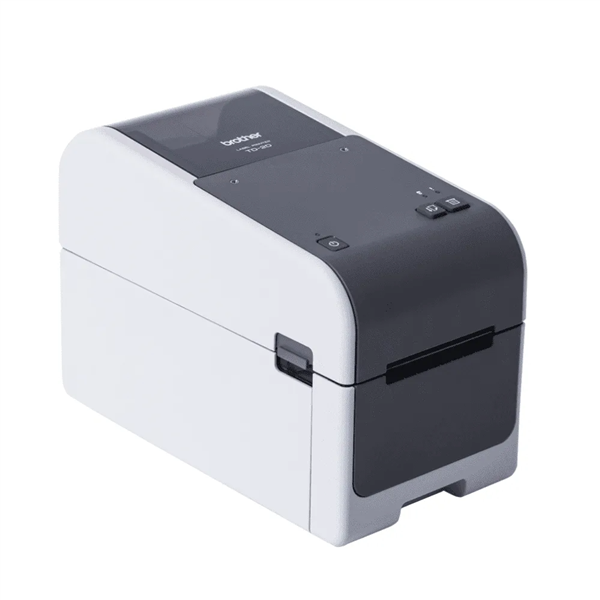

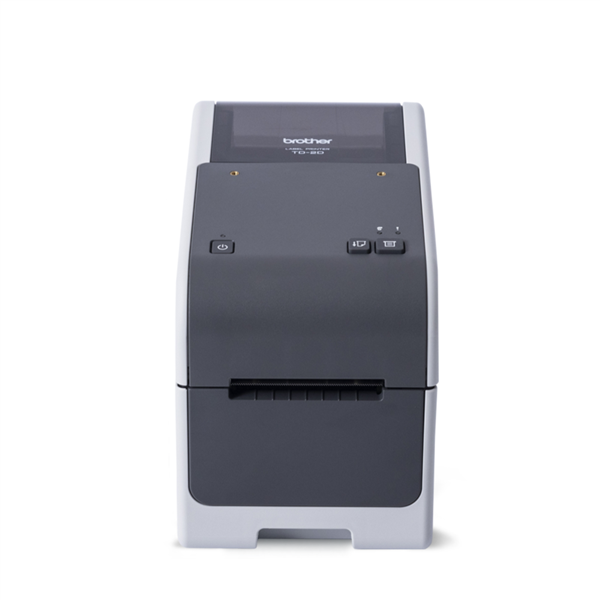

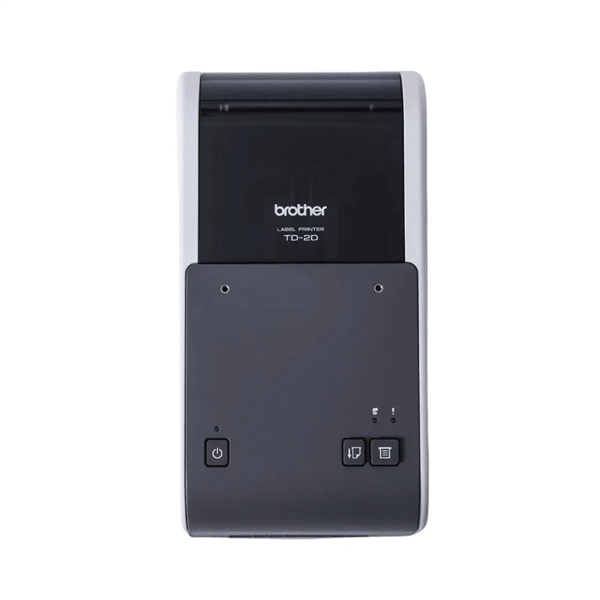

TD-2 Product Image

The pictures shown are general images for product TD-2 and may not be applicable to all part numbers

TD-2 Barcode Printers


2-inch Label, Tag, & Receipt Printing Solutions

The three styles of the TD-2 arrayed next to eachother.

Key Features - Brother TD-2

  • Flexible: Customize your printer with the media, connectivity, and features your business needs.
  • Durable: Sealed LCD/keypad & sturdy metal parts prevent damage from spills and enhance durability.
  • Efficient: Built-in emulations, compact size & optional tablet mounts to work with your existing systems and space.
  • Reliable: Brother is “at your side” with a 2-year bumper-to-bumper warranty and lifetime support.
A cup of water is poured onto the printer.

Rock-solid Reliability, Ultimate Flex.

Leave printing worries behind. The Brother TD 2300 series of thermal desktop printers offer the feature variety you need, in the space you have, using the media you want. Plus, the durable design stands up to the toughest shift. Rely on a trusted partner for lifetime technical support and a 2-year warranty to keep business moving.

Industry Applications

No matter where you deploy the TD 2300 series, you can count on this capable, simple, and versatile solution to print what you need, when you need it. And options for connectivity and portability lets you design the printer that your operation needs.

Retail

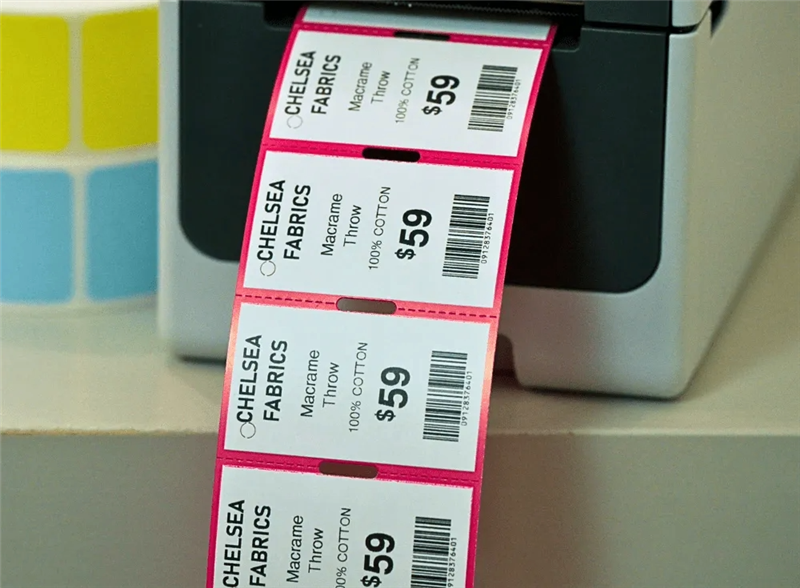

  • Product labels & tags
  • Shelf-edge labels & tags
  • Return & markdown labels
  • Item price labels
  • Online order/in-store pickup labels

Warehouse/Manufacturing

  • Box labels
  • Item marking labels
  • Pick labels
  • Work-in-progress labels
  • Barcode labels
  • Bin labels
  • Rack labels

Food Service

  • Ingredient labels
  • Nutrition labels
  • Food safety labels
  • Item price labels
  • Fresh & prepared food labels
  • Food order labels
  • eGrocery labels
  • Online order/delivery labels

Box Contents

  • Printer
  • AC Adapter
  • Power Cord
  • Documents
Product Specifications
Dimensions (W x H x L) 4.3in x 6.8in x 8.5in (110mm x 172mm x 215mm)
Weight 20.7 lbs (9.4 kg)
Power Specifications External AC Adapter (Input: 100-240VAC 50/60 Hz, 2.1A, Output: 25VDC 6A)
Printer Memory 16MB Flash (6MB for Templates/Databases), 32MB SDRAM
Control panel TD-2020A
  • 3 Buttons, 2 LEDs

  • TD-2125N, TD-2125NWB, TD-2135N, TD-2135NWB
  • 3 Buttons, 2 LEDs, Optional Touch Panel & LCD Display
  • Real Time Clock TD-2020A
  • None

  • TD-2125N, TD-2125NWB, TD-2135N, TD-2135NWB
  • Optional, with touch panel & LCD
  • Label Designer P-Touch Editor to design labels and connect to databases
    Label Peeler TD-2020A
  • None

  • TD-2125N, TD-2125NWB, TD-2135N, TD-2135NWB
  • Optional
  • Operating Systems TD-2020A
  • Windows® 11/10/8.1

  • TD-2125N, TD-2125NWB, TD-2135N, TD-2135NWB
  • Windows Server 2022/2019/2016/2012R2/2012, Windows 11/10/8.1
  • SDK Support Windows (b-PAC), iOS®, Android™
    Device Management TD-2020A
  • None

  • TD-2125N, TD-2125NWB, TD-2135N, TD-2135NWB
  • BRAdmin Professional 4
  • Printer Languages Raster Graphics, ZPL II, CPCL, ESC P, Text (template/ form printing) Printer
    Temperature/Humidity Operating: 41° F to 104° F (5° C to 40° C) / 20% to 80% non condensing
    Storage: -4° F to 140° F (-20° C to 60° C) / 20% to 80% non condensing
    Print Technology Direct Thermal
    Print Head Resolution TD-2020A, TD-2125N, TD-2125NWB
  • 203dpi (8 dots/mm)

  • TD-2135N & TD-2135NWB
  • 300dpi (12 dots/mm)
  • Print Engine Speed Up to 6ips (152.4mm/sec)
    Media/Print Width 2.5in (63mm) / 2.2in (56mm)
    Resident Barcodes
  • Linear: Code39, Code93, Code128, ITF, UPC-A/E, EAN8/13, GS1-128 (UCC/EAN-128), GS1 DataBar (RSS), MSI, Industrial 2of5, Postnet
  • 2D: PDF417/MicroPDF417, Data Matrix, Maxicode, QR Code/Micro QR Code, Aztec
  • Printer Sensors TD-2020A
  • Top Cover, Gap, Black Mark (Edgeto-Edge Adjustable)

  • TD-2125N, TD-2125NWB, TD-2135N, TD-2135NWB
  • Top Cover, Gap, Black Mark (Edgeto-Edge Adjustable)
  • Media Type Brother RD roll or fanfold, die cut or continuous label, continuous receipt, tag and wristband
    Media Roll Size Up to 5in (127mm) OD Roll Media, All Core Sizes

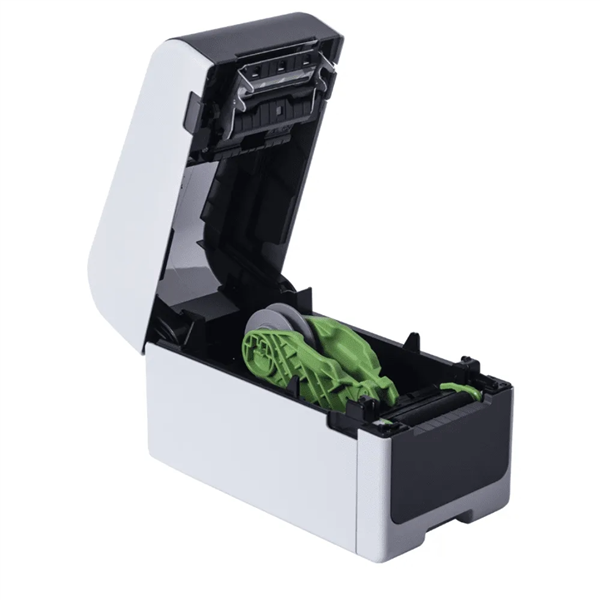

    Media Loading Drop-In Spindle-Less Design | Rear Feed (External Roll or Fanfold)
    Media Specifications
  • Width: 0.8in to 2.5in (19 to 63mm)
  • Thickness: 2.3 to 11mil (0.06-0.28mm)
  • Length: 0.23in to 0.39in (6mm-1,000mm)
  • Standard Interfaces TD-2020A
  • USB 2.0 (Full Speed), RS-232C Serial

  • TD-2125N & TD-2125NWB
  • TD2125N: Ethernet LAN (10/100Base-TX), USB 2.0 (Full Speed), Host USB, RS-232C Serial
  • TD2125NWB: Ethernet LAN (10/100Base-TX), USB 2.0 (Full Speed), Host USB, RS-232C Serial, Wi-Fi (802.11a/b/g/n), Bluetooth® Ver5.2 (Classic and LE)

  • TD-2135N & TD-2135NWB
  • TD2135N: Ethernet LAN (10/100Base-TX), USB 2.0 (Full Speed), Host USB, RS-232C Serial
  • TD2135NWB: Ethernet LAN (10/100Base-TX), USB 2.0 (Full Speed), Host USB, RS-232C Serial, , Wi-Fi (802.11a/b/g/n), Bluetooth® Ver5.2 (Classic and LE)
  • Security Protocols TD-2020A
  • None

  • TD-2125N, TD-2125NWB, TD-2135N, TD-2135NWB
  • LAN: 802.1x (LEAP, EAP-FAST, PEAP, EAP-TLS, EAP-TTLS)
  • Wireless Security TD-2020A
  • None

  • TD-2125N & TD-2125NWB
  • TD-2125N: None
  • TD-2125NWB: Infrastructure: WEP 64/128bit, WPAPSK (TKIP / AES), WPA2-PSK (AES)

  • TD-2135N & TD-2135NWB
  • TD-2135N: None
  • TD-2135NWB: Infrastructure: WEP 64/128bit, WPAPSK (TKIP / AES), WPA2-PSK (AES)
  • Bluetooth Profiles TD-2020A
  • None

  • Serial Port(SPP), Object Push(OPP), Hard Copy Cable Replacement(HCRP - Classic), Generic ATTribute Profile(GATT - LE), iAP Protocol
  • Brother TD-2 Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Recommended Models

    TD 2, Direct Thermal 2", 203 DPI, USB-C, USB Host, Serial
    DPI:203
    Interface:USB-C, USB Host, Serial
    TD 2, Direct Thermal 2", 203 DPI, USB-C, USB Host, Serial, LAN
    DPI:203
    Interface:USB-C, USB Host, Serial, LAN
    TD 2, Direct Thermal 2", 300 DPI, USB-C, USB Host, Serial, LAN
    DPI:300
    Interface:USB-C, USB Host, Serial, LAN
    TD 2, Direct Thermal 2", 300 DPI, USB-C, USB Host, Serial, LAN, WiFi, Bluetooth, LCD
    DPI:300
    Interface:USB-C, USB Host, Serial, LAN, WiFi, Bluetooth
    LCD:LCD
    TD 2, Direct Thermal 2", 300 DPI, USB-C, USB Host, Serial, LAN, WiFi, Bluetooth, Color Touch LCD
    DPI:300
    Interface:USB-C, USB Host, Serial, LAN, WiFi, Bluetooth
    LCD:Color Touch LCD
    TD 2, Direct Thermal 2", 203 DPI, USB-C, USB Host, Serial, LAN, WiFi, Bluetooth, Color Touch LCD
    DPI:203
    Interface:USB-C, USB Host, Serial, LAN, WiFi, Bluetooth
    LCD:Color Touch LCD
    TD 2, Direct Thermal 2", Cutter, 300 DPI, USB-C, USB Host, Serial, LAN
    DPI:300
    Cutter:Cutter
    Interface:USB-C, USB Host, Serial, LAN
    TD 2, Direct Thermal 2" Linerless, Cutter, 203 DPI, USB-C, USB Host, Serial, LAN, WiFi, Bluetooth, LCD
    DPI:203
    Cutter:Cutter
    Linerless:Linerless
    Interface:USB-C, USB Host, Serial, LAN, WiFi, Bluetooth
    LCD:LCD

    Additional Models

    TD 2, Direct Thermal 2", 203 DPI, USB-C, USB Host, Serial, LAN, WiFi, Bluetooth, LCD
    DPI:203
    Interface:USB-C, USB Host, Serial, LAN, WiFi, Bluetooth
    LCD:LCD
    TD 2, Direct Thermal 2", Cutter, 300 DPI, USB-C, USB Host, Serial, LAN, WiFi, Bluetooth, LCD
    DPI:300
    Cutter:Cutter
    Interface:USB-C, USB Host, Serial, LAN, WiFi, Bluetooth
    LCD:LCD

    Accessories

    Serial Interface (DB9) Adapter for TD 2 Series
    Brother PA-RH-001 - External Media Roll Holder, 8IN OD Roll w 3IN Core (for use with all TD desktop printers)
    Brother PA-TDU-001 - TD-21XX TOUCH PANEL&LCD DISPLAY. Touch Panel & LCD Display Kit (for use with TD2120N, TD2130N & TD2130NHC Desktop Printers)
    Brother PA-LP-001 - TD-21XX LABEL PEELER. Label Peeler Kit (for use with TD2120N & TD2130N Desktop Printers)
