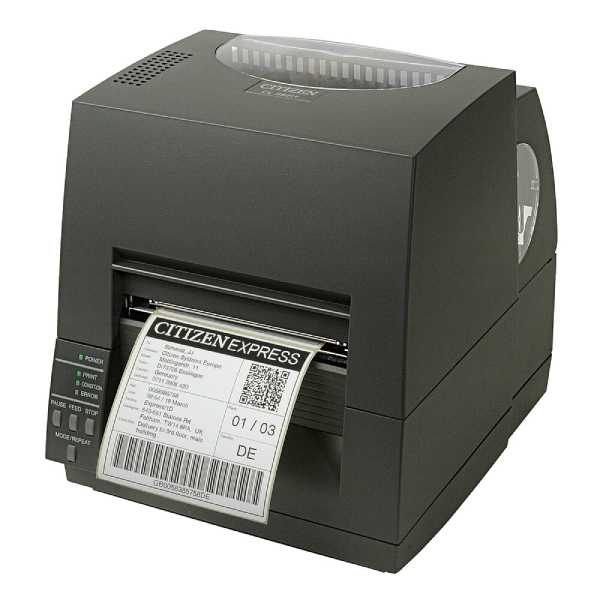

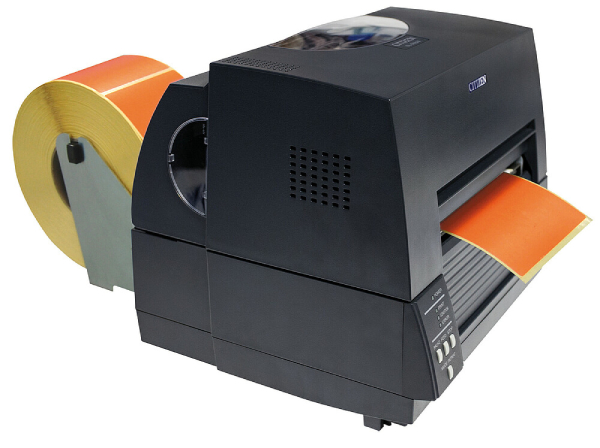

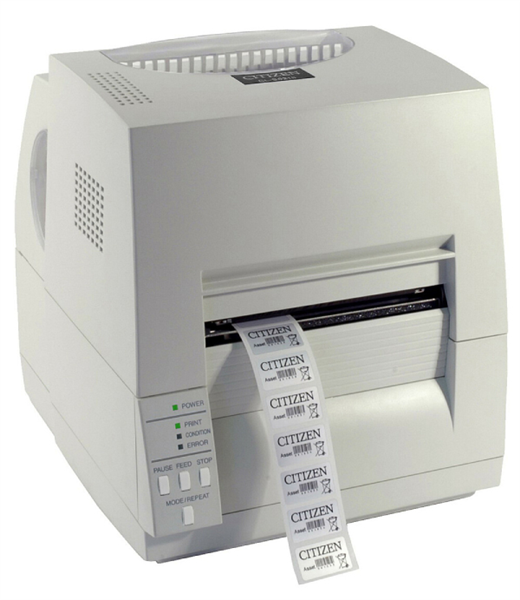

Citizen CL-S621II/CL-S631II
The pictures shown are general images for product CL-S621II/CL-S631II and may not be applicable to all part numbers
CL-S621II/CL-S631II Barcode Printers
The Desktop Printer That Makes Life Easy
The CL-S621II is a precision engineered, fast and easy-to-use unit that includes all the capabilities of the CL-S521II plus the option to print in both direct thermal and thermal transfer modes. The printer also features Citizen’s Hi-Lift™ metal mechanism and the innovative ARCP™ anti-wrinkle and automatic tensioning system.
- Cross-Emulation™ enables automatic recognition of Zebra®, ZPL® and Datamax®
- Internal Power Supply
- Easy media loading
Featured Specs
- Paper width: Variable paper width - 0.5 inches (12.5 mm) – 4.6 inches (118.1 mm)
- Paper load: Durable design - Citizen's proven Hi-Lift™ all-metal mechanism
- Printing Speed: Fast print out - 6 inches per second (150 mm per second)
- Media support: Large media capacity - holds rolls up to 5 inches (127 mm)
- Ribbon options: Wide range of ribbon options - Uses up to 360 metres inside and outside wound ribbons
Paper thickness: Paper thickness up to 0.250mm - Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
- No more unreadable labels - the ARCP™ ribbon control technology assures clear prints.
- Low space requirement - integrated power supply enables clean work station
- Energy: Internal power supply for reliability
- Media sensor: Black mark sensor, Adjustable media sensor, Label gap sensor
- Tear bar: Standard tear-bar for perforated tags
Looking for Compatible Labels or Ribbon?
We offer a selection of labels and ribbon to meet any need. Having trouble finding the label you need? Give our Label Selector Tool a try or give us a call! We have people ready to help.
Product Specifications | |
---|---|
Printing Technology | Thermal Transfer + Direct Thermal |
Resolution | 203 dpi |
Print Speed (maximum) | 6 inches per second (150 mm/s) |
Print Width (maximum) | 4 inches (104 mm) |
Media Width (min to max) | 0.5 - 4.6 inches (12.5 - 118 mm) |
Media Thickness (min to max) | 63.5 to 254 µm |
Media Length (min to max) | 0.25 to 99.99 inches (6.35 to 2539.74mm) |
Roll Size (max), Core Size | Inside diameter 5 inches (125 mm) External diameter 8 inches (200mm) Core size 1 inch (25mm) |
Ribbon size | 2.9 inches (74mm) maximum outside diameter. 360 metres length. 1 inch (25mm) core |
Ribbon winding & type | Ink side in or out, switch selectable. Wax, Wax/Resin or Resin Type |
Ribbon system | ARCP™ automatic ribbon tension adjustment |
Mechanism | Hi-Lift™ metal mechanism with wide opening head |
Media Sensor | Fully adjustable gap, notch and reflective black mark |
Main Interface | Dual Interface Serial (RS-232C), USB (version 2.0, full speed) |
Optional interfaces |
|
Case | Hi-Open™ industrial ABS case with safe close |
Control panel | 4 buttons and 4 LEDs |
Flash (Non-Volatile Memory) | 16 MB total, 4MB available for user |
RAM (standard Memory) | 32MB total, 8MB available for user |
Drivers and software | Free-of-charge on CD with printer, including support for various platforms |
Emulations (Languages) | |
Size (W x D x H) and Weight | 231 x 289 x 270 mm, 4.5 Kg |
Warranty | 2 years on printer. 6 months or 50 Kms printhead |
Cutter | Guillotine type, Dealer Installable |
