Citizen CL-S703III

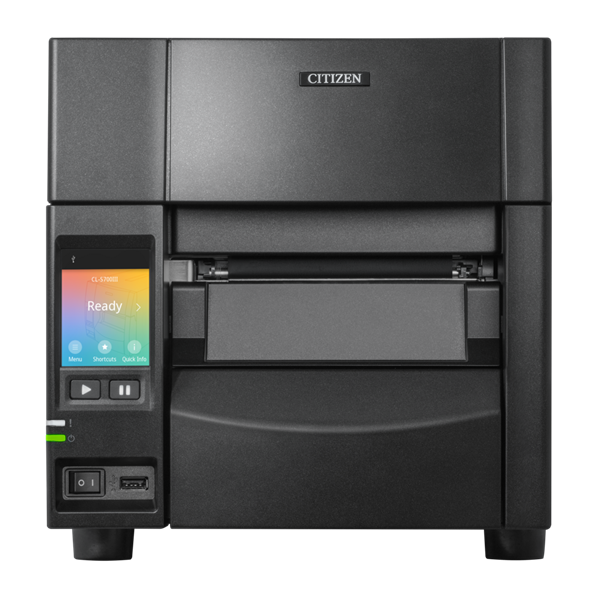

The pictures shown are general images for product CL-S703III and may not be applicable to all part numbers

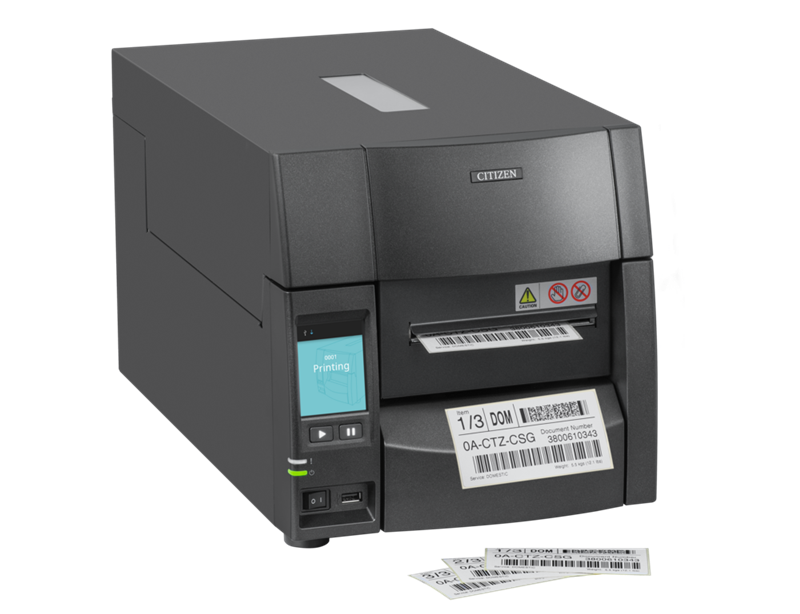

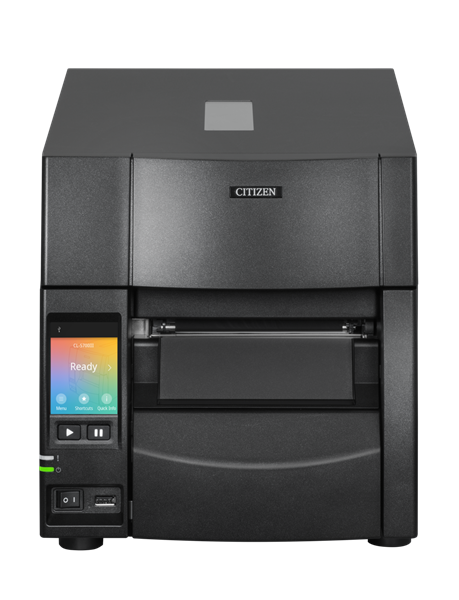

CL-S703III Barcode Printers
Citizen The CL-S703III is engineered to provide an unparalleled user experience while printing outstanding high-resolution labels. Featuring cross-emulation, the CL-S703III can automatically switch between Zebra® and Datamax® emulations – making integration fast and easy. Complete with 300dpi printhead, color LCD touchscreen, ARCP technology, set up wizard, print previews, and shortcuts – printing scannable and long-lasting labels is now even simpler.
High Resolution PrintheadEquipped with a 300dpi resolution printhead ideal for fine, detailed and complex labelling.

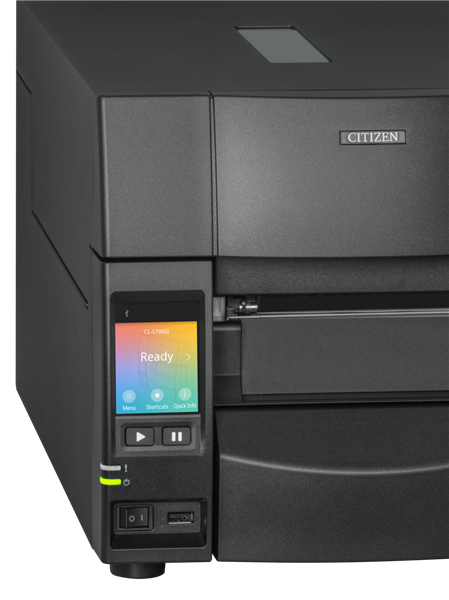

Enhanced User Experience with Set up WizardThe set-up wizard shows you set up instructions with illustrations – perfect for training new users as well as reminding existing users without the need for a manual or online support. Additionally, when an error occurs the set up wizard will display the corresponding solution methods, making troubleshooting simple.
Print wirelessly with Standalone FormsFor customers who wish to print labels without a desktop, they’ll love the CL-S703III’s Standalone Forms feature. Standalone Forms allows you to print specifically formatted labels with variable data you can share with the printer through it’s USB host connector. This allows users to create labels of their choosing.
Features & Benefits- Paper exit: Front exit - prevents damage from moisture or foreign objects

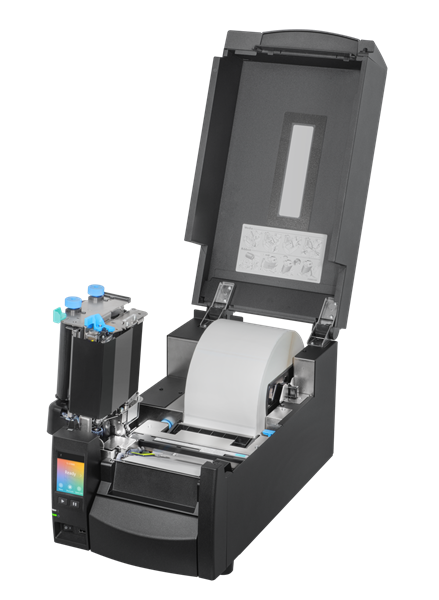

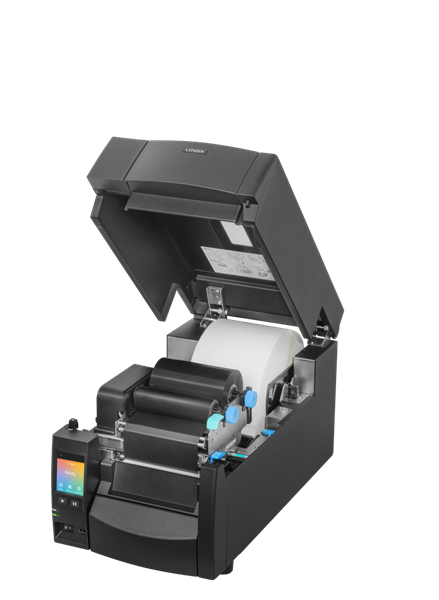

- Paper load: Front access for all operations including media and ribbon changing
- Printing Speed: Ultra fast print out - up to 250mm per second (10 inches per second)
- Media support: Very large media capacity - holds rolls up to 8 inches (200 mm)
- Ribbon options: Wide range of ribbon options - Uses up to 450 metres inside and outside wound ribbons Display: Colour LCD panel with touch control, plus two buttons

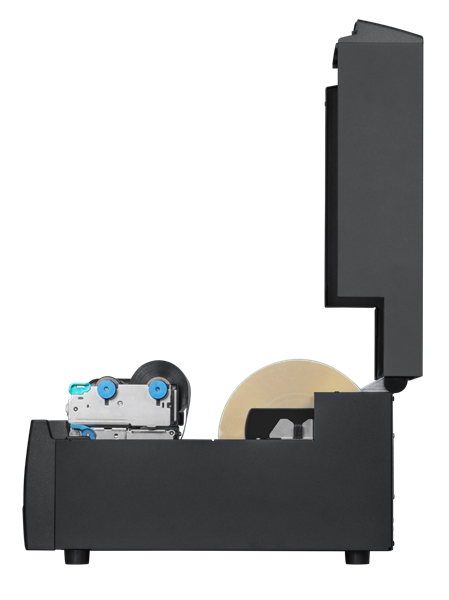

- Hi-Open™ case for vertical opening, no increase in footprint and safe closing.
- No more unreadable labels - the ARCP™ ribbon control technology assures clear prints.
- Basic peeler
- Warranty 2 years on printer. 6 months or 50 Kms printhead
BOX CONTENTS
- Quick Start Guide
- Power Cord
- Ribbon Holder
- Paper Core (for ribbon)
- Media Holder Guide
- Media Holder Bar
Product Specifications | |
---|---|
Printing Technology | Thermal Transfer + Direct Thermal |
Resolution | 300 dpi |
Print Width (maximum) | 4 inches (104 mm) |
Media Width (min to max) | 1 - 4.6 inches (25.4 - 118 mm) |
Roll Size (max), Core Size | Outside diameter 8 inches (200mm) Core size 1 to 3 inches (25 to 75 mm) |
Media Thickness (min to max) | 63.5 to 254 µm |
Media Length (min to max) | 0.25 to 64 inches (6.35 to 1625.6 mm) |
Media Sensor | Fully adjustable gap, notch and reflective black mark |
Main Interface | Triple interface: USB and Ethernet built-in plus interface card slot for optional card |
Optional interfaces | Wireless LAN 802.11b and 802.11g standards, 100 metres, 64/128 bit WEP, WPA, up to 54Mbps, Premium Wireless LAN, Serial (RS232C compliant), Parallel (IEEE 1284 compliant), Ethernet (10/100 BaseT) |
Ribbon size | 3.4 inches (86.5 mm) maximum outside diameter. 450 metres length. |
Ribbon winding & type | Ink side in or out, automatically sensing. Wax, Wax/Resin or Resin Type |
Ribbon system | ARCP™ automatic ribbon tension adjustment |

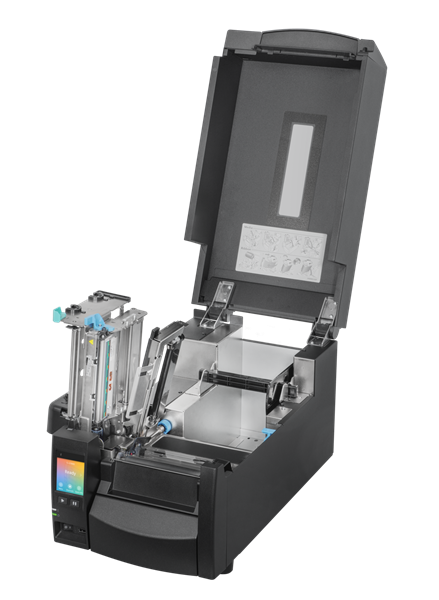

Mechanism | Hi-Lift™ metal mechanism with wide opening head |
Control panel | 2 buttons, colour LCD panel with touch control |
Emulations (Languages) | Datamax® DMX, Cross-Emulation™ - autoswitch between Zebra® and Datamax® emulations, Zebra® ZPL2® , BASIC interpreter for data stream processing and ticketing emulations , Eltron® EPL2® , CBI™ BASIC Interpreter |
Drivers and software | Free-of-charge from website, including support for various platforms |
Size (W x D x H) and Weight | 255 x 490 x 265 mm, 13.3 Kg |
Warranty | 2 years on printer. 6 months or 50 Kms printhead |
