CognitiveTPG Advantage DLX

Advantage DLX Barcode Printers

The CognitiveTPG Advantage DLX has reached end of life. It has been replaced by the CognitiveTPG DLXi.

This product replaces the older CognitiveTPG Del Sol LX.

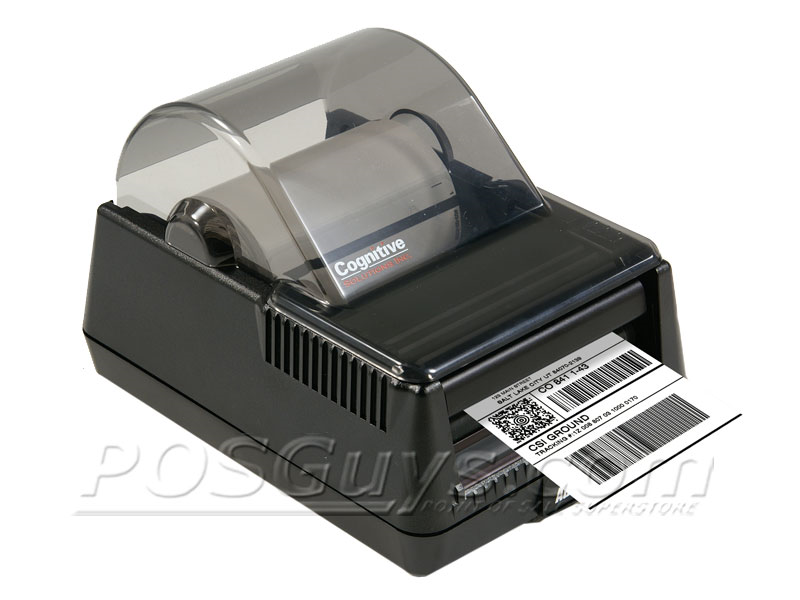

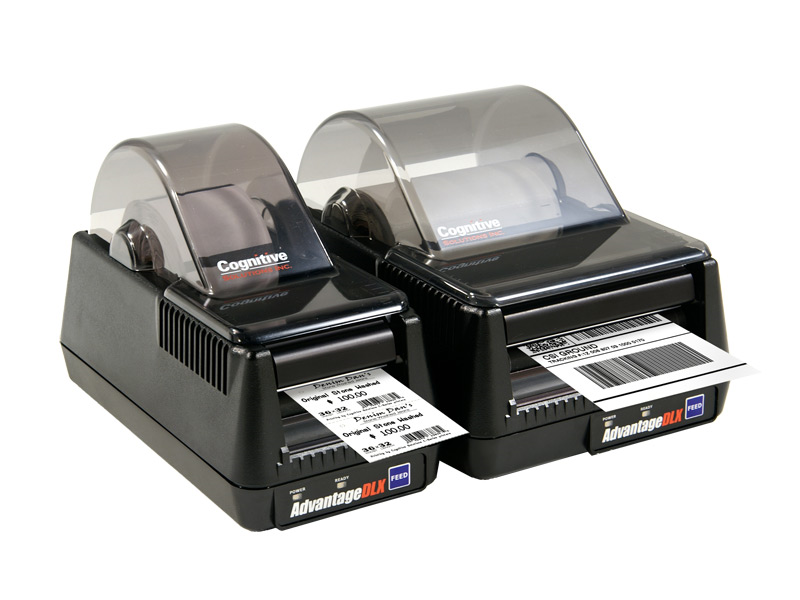

The Cognitive Advantage DLX barcode printer prints labels at 5 inches per second, an impressive clip only enhanced by the incredibly quick first label out speed. Available in 2.4" or 4.25" as well as thermal transfer and direct thermal models, the Advantage DLX can easily meet the needs of any desktop barcode printing environments. To improve longevity and resistance to the rough and tumble lifestyle of more hazardous environments, the printer features an all-metal chassis and printing mechanism, making the Cognitive Advantage DLX an excellent choice for demanding label printing needs.

Features

USB standard on all devices

Optional Serial, Parallel, and Ethernet interfaces

2,000,000 line print head life: That's 31 miles of labels!

Driver support for Windows 2000 and XP

These printers do not ship with labels. Labels and ribbons can be ordered here.

Product Specifications
Color Options	Black
Interface	Standard: USB Optional: Ethernet (internal), serial, parallel
Print Method	Direct thermal or thermal transfer
Print Speed	127 mm / second (5 ips)
Print Resolution	Standard: Selectable 101 or 203 dpi DBT42-2085 Models: Selectable 150 or 300 dpi (optional)
Maximum Print Area	DBD24-2085 and DBT24-2085 Models Width: 2.1 in (53.8 mm) Length: 322 in (8179 mm) DBD42-2085 and DBT42-2085 Models Width: 4.1 in (104 mm) Length: 322 in (8179 mm)
Paper Dimensions	DBD24-2085 and DBT24-2085 Models Width: 1 to 2.4 in (25 to 61 mm) Roll Diameter: 4.7 in (119 mm) DBD42-2085 and DBT42-2085 Models Width: 4.7 in (119 mm) Roll Diameter: 4.7 in (119 mm)
Resident Fonts	Bitmapped: 7 styles with up to 10 x 10 magnification, variable boldness and spacing International AGFA Fonts: Sans-serif font in 7 pt. sizes, up to 4 x 4 magnification, variable boldness and spacing Scalable Smooth Fonts: 3 Ultra Font styles for smooth characters in any size and boldness Rotations: 0°, 90°, 180°, 270°
Barcodes Supported	29 standard bar codes, including: Add2, Add5, Codabar, Code39, Code93, Code128A/B/C, D2of5, I2of5, S2of5, EAN8/8+, EAN13/13+, EAN128, Maxicode, MSI/I1, PDF417, Plessey, Postnet, UPCA/A+/E/E1, DataMatrix, Aztec, QR Code, RSS
Graphics Printing	Ability to upload and recall. PCX and BMP formats
Memory	8 MB Flash, 16 MB RAM
Two Color Printing Capabilities	No
Auto Cutter	No
Peeler / Presenter	Optional - label dispenser
Internal Rewind	No
LCD Display	No
Weight	DBD24-2085 and DBT24-2085 Models Direct Thermal: 3.1 lb (1.41 kg) Thermal Transfer: 3.9 lb (1.77 kg) DBD42-2085 and DBT42-2085 Models Direct Thermal: 3.9 lb (1.77 kg) Thermal Transfer: 4.4 lb (2.0 kg)
Dimensions	DBD24-2085 and DBT24-2085 Models Direct Thermal: 4.7W x 6.1H x 9.4D in (119 x 155 x 238 mm) Thermal Transfer: 5W x 6.1H x 9.4D in (127 x 155 x 238 mm) DBD42-2085 and DBT42-2085 Models Direct Thermal: 6.8W x 6.1H x 9.4D in (173 x 155 x 238 mm) Thermal Transfer: 6.8W x 6.1H x 9.4D in (173 x 155 x 238 mm)
Wall Mountable	No
Operating Temperature	41°F - 104°F (5°C - 40°C)
Software Included	Windows drivers, NiceLabel label design software
In The Box	Printer, start-up guide, power supply, CD including: Windows drivers, programmers guide, NiceLabel label design software, required cable for specific unit (USB, serial or parallel)

Downloads
Data Sheet (English)
Data Sheet (Español)
Manual
Quick Start Guide
Programming Manual
Seagull Windows Driver
Windows Drivers
