Datamax-O'Neil E-Class

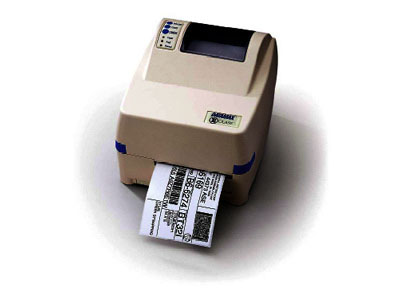

The pictures shown are general images for product E-Class and may not be applicable to all part numbers

E-Class Barcode Printers

The Datamax-O'Neil E-Class has reached end of life. It has been replaced by the Datamax-O'Neil E-Class Mark III.

The Datamax E-Class Family is designed to be the printer of choice when value, performance and features are the primary printer requirements. The E-Class Family consists of the E-4205e and E-4304e printers. E-Class printers are capable of printing a wide variety of labels in applications ranging from small office shipping requirements to compliance and general purpose product identification labels and tags. Hospitals, medical laboratories, automobile service shops, shipping/mail centers, and inventory stock rooms are all typical examples of the types of businesses that can benefit from using the E-Class printers. And with PDF417 and MaxiCode 2D bar code capabilities, the E-Class can print complex transportation symbols and label formats. The E-Class printers are available in both Direct Thermal or Thermal Transfer configurations and are available with an options list developed to suit virtually any low- to medium volume label printing application

Product BreakdownE-4205eE-4304e
Print Width4.25"4.12"
Print Speed5" Per Sec4" Per Sec
Product Specifications
Color Options White, Grey, Beige
Interface USB, Centronics parallel, serial
Print Method Standard: Direct thermal
Optional: Thermal transfer
Print Speed E-4203: 3 ips
E-4204: 4 ips
E-4304: 4 ips
Print Resolution E-4203: 203 dpi
E-4204: 203 dpi
E-4304: 300 dpi
Maximum Print Area Length: 0.375 - 24 in (9.5 - 609.6 mm)
Paper Dimensions Width: 1 to 4.3 in (25.4 to 109.2 mm)
Paper Thickness 0.0025 to 0.01 in (0.0635 to 0.254 mm)
Character Set Modified IBM® Code Page 850; includes characters for English and most European, Scandinavian and Spanish speaking countries
Resident Fonts Ten alphanumeric fonts from .08" (2mm) to .25" (6mm) including OCRA, OCRB, CG Triumvirate™ smooth font from AGFA®
Barcodes Supported Code 3 of 9, UPCA, UPCE, Interleaved 2 of 5, Code 128, EAN8, EAN13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Code 93, Postnet, UCC/EAN Code 128, Telepen, UPS MaxiCode, FIM, PDF417, USD8, Datamatrix, QR Code, Aztec, TLC 39, Micro PDF417
Graphics Printing All fonts expandable vertically and horizontally up to 24x - fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270° .PCX, .BMP and .IMG files - Any font or graphic field can be printed as a normal or reverse image
Memory 1 MB Flash, 2 MB DRAM
Two Color Printing Capabilities No
Auto Cutter Optional - standard or light duty cutter available
Peeler / Presenter Optional - will not print next label until the prior is removed
Internal Rewind No
LCD Display No
Weight 5.25 lb (2.4 kg)
Dimensions 8.77W x 7.05H x 10D in (223 179 x 254 mm )
Wall Mountable No
In The Box Printer, power supply, accessories CD-ROM, any special or additionally purchased items (interface cable and labels not included standard)
