Datamax-O'Neil E-Class Mark III

E-Class Mark III Barcode Printers

The Datamax-O'Neil E-Class Mark III has reached end of life.

This product replaces the older Datamax-O'Neil E-Class.

The Datamax-O'Neil E-Class Mark III offers versatility previously unseen in the E-Class series. Available in four distinct models, the E-Class Mark III meets the needs of any desktop printing operation. A 4" wide maximum print width is ideal for shipping label printing, while still maintaining support for smaller labels, such as on prescription bottles or retail inventory.

The E-Class Mark III prints at up to 6 inches per second, quick enough to keep up with demanding print jobs, and prints as direct thermal or thermal transfer depending on your labeling needs. With a larger media roll capacity and a rugged design, the Datamax-O'Neil E-Class Mark III is the ideal desktop printer for maximizing uptime.

Features

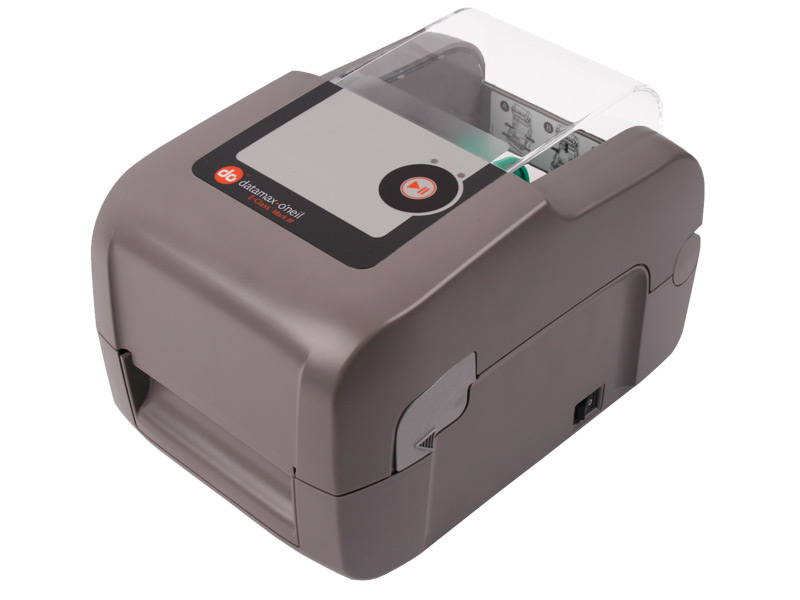

• Clear media window makes level checks a snap
• 203 dpi and 300 dpi models available
• Serial, USB standard, Parallel, Ethernet available
• Adjustable media sensor on Professional models

Product Breakdown	Basic	Advanced	Professional	Professional+
203 dpi Model	E-4204B	E-4205A	E-4206P	E-4206L
300 dpi Model	E-4304B	E-4305A	E-4305P	E-4305L
Print Speed	4 IPS	5 IPS	6 IPS	6 IPS
USB 2.0	Yes	Yes	Yes + USB Host	Yes + USB Host
RS-232 Serial	Yes	Yes	Yes	Yes
Parallel	No	Yes	Yes	Yes
Ethernet	No	Yes	Yes	Yes
802.11a/b/g Wireless	No	No	Yes	Yes

Please note there are many models of the E-Class printer. We recommend using the Feature Highlighter to identify the model with the features you need.

Product Specifications
Color Options	Grey
Interface	Basic Models E-4294B: USB, serial E-4394B: USB, serial Advanced Models E-4205A: USB, serial, parallel, 10/100 BaseT ethernet E-4305A: USB, serial, parallel, 10/100 BaseT ethernet Professional Models E-4206P: USB, serial, parallel, 10/100 BaseT ethernet, USB host (Optional 802.11 a/b/g or Bluetooth™ v2.0) E-4306P: USB, serial, parallel, 10/100 BaseT ethernet, USB host (Optional 802.11 a/b/g or Bluetooth™ v2.0)
Print Method	Standard: Direct thermal Optional: Thermal transfer
Print Speed	Basic Models (E-4294B and E-4394B Product Numbers): 101 mm/second (4 ips) Advanced Models (E-4205A and E-4305A Product Numbers): 127 mm/second (5 ips) Professional Models (E-4206P and E-4306P): 152 mm/second (6 ips)
Print Resolution	Basic Models E-4294B: 203 dpi E-4394B: 300 dpi Advanced Models E-4205A: 203 dpi E-4305A: 300 dpi Professional Models E-4206P: 203 dpi E-4306P: 300 dpi
Maximum Print Area	Width: 4.25 in (108 mm) at 203 dpi - 4.16 in (106 mm) at 300 dpi Length: 0.375 to 99 in (9.5 to 2514 mm)
Paper Dimensions	Width: 0.75 to 4.40 in (19 to 111.76 mm) Roll Diameter: Maximum 5 in (127 mm) - Professional+ models maximum 7.2 in (182.8 mm)
Paper Thickness	0.0025 to 0.01 in (0.0635 to 0.254 mm)
Character Set	Modified IBM® Code Page 850; includes characters for English and most European, Scandinavian and Spanish speaking countries. – 50 Resident code pages
Resident Fonts	Ten alphanumeric fonts from 0.08” to 0.25” (2mm to 6mm) including OCR-A, OCR-B, CG Triumvirate™ smooth font from AGFA
Barcodes Supported	Linear Barcodes: Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5 (I 2 of 5), Code 128, EAN-13, EAN-8, HBIC, Codabar, Interleaved 2 of 5 with a module 10 checksum, Plessey, Interleaved 2 of 5 with a module 10 checksum & shipping bearer bars, 2 digit UPC addendum, 5 digit UPC addendum, Code 93, Postnet, UCC/EAN Code 128, K-Mart NON EDI barcode, Telepen1
Barcodes Continued	2-Dimensional: UPS MaxiCode, FIM, PDF-417, DataMatrix, QR Code, Aztec, Code 128 with auto Subset Switching, GS1 Databar (replaced RSS), TCIF Linked Bar Code 3 of 9 (TLC39), MicroPDF 417
Graphics Printing	.PCX, .BMP, .IMG format files Reversible field/mirror – Any font or graphic field can be printed as a normal or reverse image
Memory	Basic Models E-4294B: 64 MB Flash, 16 MB DRAM E-4394B: 64 MB Flash, 16 MB DRAM Advanced Models E-4205A: 64 MB Flash, 16 MB DRAM E-4305A: 64 MB Flash, 16 MB DRAM Professional Models E-4206P: 64 MB Flash, 16 MB DRAM E-4306P: 64 MB Flash, 16 MB DRAM
Emulation	Eltron™, Zebra™, Intermec™, Boca­™
Printer Languages	PL-Z, PL-B, PL-E, PL-I
Two Color Printing Capabilities	No
Auto Cutter	Optional - cutter with sensor field, not available on Basic models
Peeler / Presenter	Optional - label dispenser with sensor field
Internal Rewind	No - does offer optional external rewinder accessory
LCD Display	Professional models only.
Weight	5.25 lb (2.4 kg)
Dimensions	8.01W x 7.36H x 11.10D in (203.5 x 187 x 282 mm)
Wall Mountable	No
Operating Temperature	40° to 95°F (5° to 35°C)
Software Included	Printer configuration tool, networked printer management tool, resident printer configuration tool, drivers for Windows XP, Vista and NT
