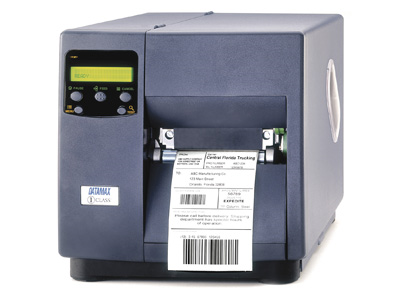

Datamax-O'Neil I-Class

The pictures shown are general images for product I-Class and may not be applicable to all part numbers

I-Class Barcode Printers


The Datamax-O'Neil I-Class has reached end of life. It has been replaced by the Datamax-O'Neil I-Class Mark II.

Datamax revolutionized the four-inch printer market in 1999 with the introduction of the rugged I-Class™ thermal bar code printers. Since then, competitors have tried to copy the original and repackage their old printers to match. Today, the industry’s most innovative product is now even better! Datamax raises the bar again with the introduction of the evolved I-4208™. Built to meet the toughest printing requirements, the I-4208 incorporates many standard features normally found as options on competitive products. Superior price and value make the I-4208 the premier 4 printer in the world.

Free 1D barcode label design software is available with this printer. Datamax O'Neil's NETira is designed to support the I-Class offering printing of 1D barcodes, graphics, and text. Please note that this software can not utilize database information. For software that can input database information in label designs we recommend SeaGull Bartender Professional .

Labels are not included. Purchase labels and ribbons.
Product Specifications
Color Options Grey
Interface Centronics® Parallel port (IEEE 1284 compliant), RS232 at 2,400 to 38,400 BPS, optional Ethernet
Print Method Direct thermal (standard) or thermal transfer (optional)
Print Speed 2 to 12 in / second (51 to 304 mm)
Print Resolution 203 dpi
Maximum Print Area Width: 4.094 in (104 mm)
Length: 99 in (2475m)
Paper Dimensions Width: 1 to 4.65 in (25 to 118 mm)
Roll Diameter: 8 in maximum
Paper Thickness 0.0025 to 0.0100 in (0.0635 to 0.254 mm)
Character Set Modified IBM® Code Page 850; includes characters for English and most European, Scandinavian and Spanish speaking countries
Resident Fonts Ten alphanumeric fonts from .035" (.89mm) to .64" (16.26mm) including OCR-A, OCR-B, CG Triumvirate™ scalable font from AGFA® - All fonts expandable vertically and horizontally up to 24x; fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
Graphics Printing .PCX, .BMP, .IMG format files Reversible field/mirror – Any font or graphic field can be printed as a normal or reverse image
Memory 2 MB Flash, 16 MB DRAM
Emulation Prodigy Plus®, Allegro®, 203, 300 or 406 dpi, column emulation, Prodigy™, SOP , Zebra, Intermec, Boca
Two Color Printing Capabilities No
Auto Cutter Optional
Peeler / Presenter Optional
Internal Rewind Optional
LCD Display Yes
Weight 45 lb (20.5 kg)
Dimensions 12.7H x 12.62W x 18.6D in (322.6 x 320.6 x 472.5 mm)
Operating Temperature 40° to 95°F (5° to 35°C)
