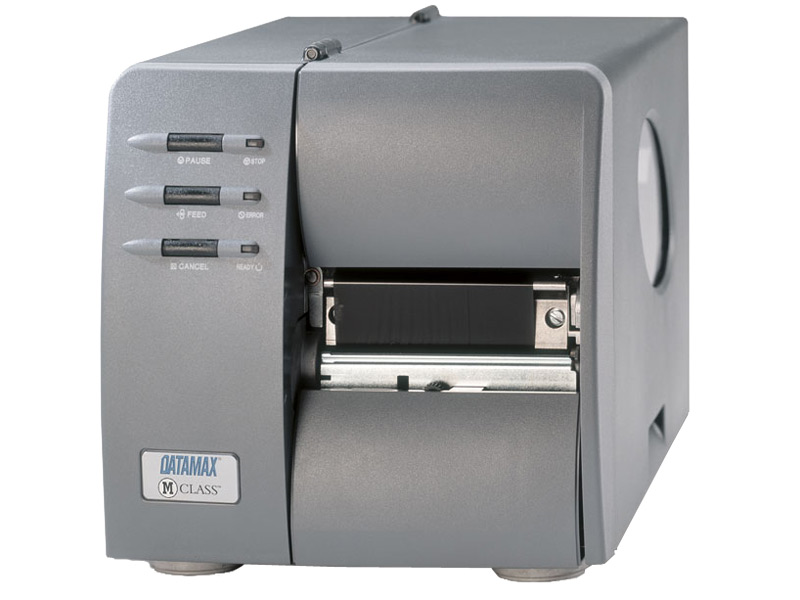

Datamax-O'Neil M-Class

The pictures shown are general images for product M-Class and may not be applicable to all part numbers

M-Class Barcode Printers

The Datamax-O'Neil M-Class has reached end of life. It has been replaced by the Honeywell PX940.

Datamax M-Class printers are rugged, sturdy printers developed for use in bar coding applications such as healthcare, light manufacturing, inventory and retail SKU management where space, reliability and performance are the motivating factors. The M-Class is designed based on elements borrowed from the industry-leading Datamax I-Class printers, featuring a die-cast aluminum chassis to enhance durability and performance. The printer's design allows for field installable options and quick media changes for users functioning in mission-critical printing capabilities. The compact, modular design enables usage in environments with limited space and offers low total cost of ownership. Options such as Thermal Transfer, Internal Rewind, Peel and Present and a Cutter are user-installable and removable. Additionally basic 1D label design software is available free of charge for the M-Class Mark II.
    Model Breakdown
  1. M-4206: 6" per second print speed, 203 dpi, 8MB DRAM, 4MB Flash, 100 MHz CPU
  2. M-4210: 10" per second print speed, 203 dpi, 16MB DRAM, 8MB Flash, 150 MHz CPU
  3. M-4308: 8" per second print speed, 300 dpi, 16MB DRAM, 8MB Flash, 150 MHz CPU

These printers do not ship with labels. Labels can be ordered here.
Product Specifications
Color Options Grey
Interface USB, Centronics® Parallel port (IEEE 1284 parallel port on M-4208/M-4306), RS232 at 1200 to 38,400 BPS
Print Method Direct thermal (standard) or thermal transfer (optional)
Print Speed M-4206 Model:6 in / second
M-4208 Model: 8 in / second
M-4306 Model: 6 in / second
Print Resolution M-4206 Model: 203 dpi
M-4208 Model: 203 dpi
M-4306 Model: 300 dpi
Maximum Print Area M-4206 Model:
Width: 4.25 in (106 mm)
Length: 99 in

M-4208 Model:
Width: 4.25 in (108 mm)
Length: 99 in

M-4306 Model: Width: 4.16 in (106 mm)
Length: 99 in
Paper Dimensions Width: 1 to 4.65 in (106 mm)
Roll Diameter: 8 in maximum
Paper Thickness 0.0025 to 0.0100 in (0.0635 to 0.254 mm)
Character Set Modified IBM® Code Page 850; includes characters for English and most European, Scandinavian and Spanish speaking countries. Scalable fonts can be used with over 50 resident character sets.
Resident Fonts Ten alphanumeric fonts from .03" (0.9mm) to .25" (6mm) including OCR-A, OCR-B, CG Triumvirate™ smooth font from AGFA®. Resident scalable fonts (M-4208 and M-4306) - True-Type, AGFA® Intellifont ™ , Bitmap downloadable
Barcodes Supported Code 3 of 9, UPC-A, UPC-E, Interleaved 2 of 5, Code 128, EAN-8, EAN-13, HIBC, Codabar, Plessey, UPC 2 and 5 digit addendums, Code 93, Postnet, UCC/EAN Code 128, Telepen, UPS MaxiCode, FIM, PDF417, USD-8, Datamatrix, QR Code, Aztec, TLC 39, Micro PDF417, RSS
Graphics Printing .PCX, .BMP, .IMG format files Reversible field/mirror – Any font or graphic field can be printed as a normal or reverse image
Memory M-4206 Model: 2 MB Flash, 4 MB DRAM
M-4208 Model: 2 MB Flash, 8 MB DRAM
M-4306 Model: 2 MB Flash, 8 MB DRA
Emulation Zebra™, Intermec™, Boca­™
Two Color Printing Capabilities No
Auto Cutter Optional
Peeler / Presenter Optional
LCD Display M-4206 Model: No
M-4208 Model: Yes
M-4306 Model: Yes
Weight M-4206 Model: 21 lb
M-4208 Model: 27 lb
M-4306 Model: 27 lb
Dimensions 10.3H x 9.8W x 18.06D (262 x 249 x 459 mm)
Operating Temperature 40° to 95°F (5° to 35°C)
Software Included Windows driver
