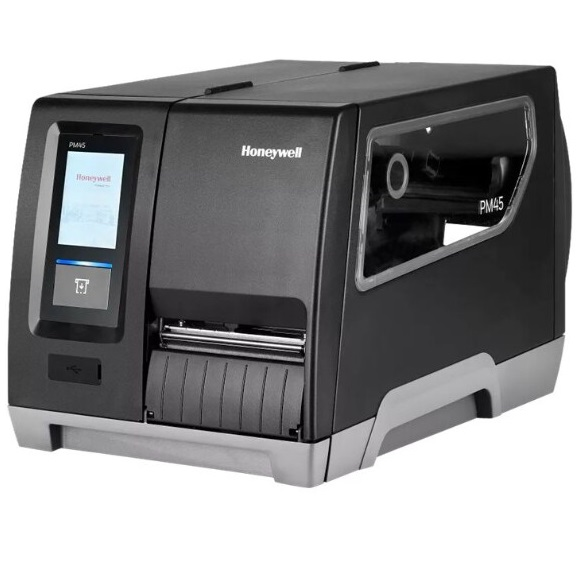

Honeywell PM45

The pictures shown are general images for product PM45 and may not be applicable to all part numbers

PM45 Barcode Printers


This product replaces the older Honeywell PM42.

Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high print quality of barcodes, texts, and images, even on small electronic component and pharmaceutical labels. As a highly connected industrial printer, the PM45 is packed with first-in-class WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer is also scalable to incorporate RFID, parallel, industrial, and applicator interfaces to address your unpredictable business needs in the future.

    Features
  • USB, Ethernet standard, optional Parallel, Ethernet, 802.11b/n WiFi, and Cellular WLAN interfaces
  • Direct thermal / Thermal Transfer Printing - RFID Encoder Option
  • 14" per second print speed depending on model
  • 4.09" maximum print width
    Product Breakdown
  • PM45: L x H x W: 19.0 in x 11.11.6 in x 11.2 in. | USB 2.0 Host x2

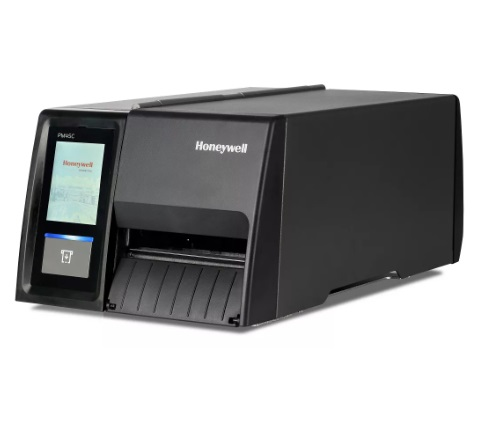

  • PM45c: L x H x W: 17.0 in x 7.1 in x 10.0 in. | USB 2.0 Host x1
  • PM45c with Mega Door: L x H x W: 19.7 in x 9.6 in x 10.0 in. | USB 2.0 Host x1
Product Specifications
Print Method Direct Thermal / Thermal Transfer
Dimensions (L x W x H): Standard - 19.0 in x 11.11.6 in x 11.2 in. Compact - 17.0 in x 7.1 in x 10.0 in
Interface Options USB, Ethernet standard, optional Parallel, Ethernet, 802.11b/n WiFi, and Cellular WLAN interfaces
Max. Print Speed 14 Inches Per Second
Printer Language Fingerprint (FP) Direct Protocol (DP) Intermec Printer Language (IPL)3 ZSim2 (ZPL-II), DPL, XML-enabled for SAP® AII and Oracle® WMS, PDF, C#
Barcodes Supported arcode Symbologies: All major 1D and 2D symbologies are supported Standards Supported: UPC/EAN Shipping Container, UCC/EAN 128, Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label), OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping Label, Global Transport Label
Graphics Printing Supports PCX, PNG, GIFand BMP file formats. Other formats supported with Label Generation Tools
Memory Standard: 512 MB Flash memory, 256 MB SDRAM, Multi-GB USB memory device (FAT16/FAT22
Weight Standard Weight: 13.2 kg (29.1lbs) Compact - Weight: 12.6 kg (27.7 lbs)
Roll Size (max), Core Size Max OD Diameter: 8.38in. Inner Core Diameter: 0.5-3 in
Media Types : Gap, Notch, Black mark, Continous, Media low, Media end. Roll-fed or fan-fold

Honeywell PM45 Reviews

POSGuys Rating:

Customer Reviews

Downloads
PM45 Data Sheet

Recommended Models

PM45A, Icon Display, USB+Ethernet, Fixed Hanger, 203 DPI, US Power Cord
$2369.83 Add to Cart
DPI:203
User Interface:Icon
Rewinder:No Rewinder
Label Taken Sensor:No Sensor
Size Configuration:Standard
Connection:USB+Ethernet
Power Supply:Power Supply Included
PM45A, Full Touch Display, USB+Ethernet, Bluetooth, Wifi, Fixed Hanger, 203 DPI, US Power Cord
$3453.03 Add to Cart
DPI:203
User Interface:Full Touch Display
Rewinder:No Rewinder
Label Taken Sensor:No Sensor
Size Configuration:Standard
Connection:USB+Ethernet, Bluetooth, Wifi,
Power Supply:Power Supply Included

Additional Models

PM45A, Icon Display, USB+Ethernet, Fixed Hanger, 300 DPI, US Power Cord
$3357.10 Add to Cart
DPI:300
User Interface:Icon
Rewinder:No Rewinder
Label Taken Sensor:No Sensor
Size Configuration:Standard
Connection:USB+Ethernet
Power Supply:Power Supply Included
PM45A, Full Touch Display, USB+Ethernet, Fixed Hanger, Hanger, Rewinder + Label taken sensor 300 DPI, US Power Cord
$3644.77 Add to Cart
DPI:300
User Interface:Full Touch Display
Rewinder:Rewinder Included
Label Taken Sensor:Sensor Included
Size Configuration:Standard
Connection:USB+Ethernet
Power Supply:Power Supply Included
PM45A, Full Touch Display, USB+Ethernet, Fixed Hanger, 300 DPI, US Power Cord
$3367.98 Add to Cart
DPI:300
User Interface:Full Touch Display
Rewinder:No Rewinder
Label Taken Sensor:No Sensor
Size Configuration:Standard
Connection:USB+Ethernet
Power Supply:Power Supply Included
PM45A, Icon, USB+Ethernet, Fixed Hanger, 203 DPI, US Power Cord - Direct Thermal Only
$2694.38 Add to Cart
DPI:203
User Interface:Icon
Rewinder:No Rewinder
Label Taken Sensor:No Sensor
Size Configuration:Standard
Connection:USB+Ethernet
Power Supply:Power Supply Included
PM45A, Icon, USB+Ethernet, Bluetooth, Wifi, Fixed Hanger, 300 DPI, US Power Cord
$4196.37 Add to Cart
DPI:300
User Interface:Icon
Rewinder:No Rewinder
Label Taken Sensor:No Sensor
Size Configuration:Standard
Connection:USB+Ethernet, Bluetooth, Wifi,
Power Supply:Power Supply Included
PM45A, Full Touch Display, Ethernet, Fixed Hanger, Rewinder + Label taken sense, TT, 203 DPI, US Power Cord
$3155.36 Add to Cart
DPI:203
User Interface:Full Touch Display
Rewinder:Rewinder Included
Label Taken Sensor:Sensor Included
Size Configuration:Standard
Connection:USB+Ethernet
Power Supply:Power Supply Included
PM45 Compact, Full Touch Display, Ethernet, Fixed Hanger, Rewinder + Label taken sense, TT, 203 DPI, No Power Cord
PM45C Models are Non-Cancellable & Non-Returnable.
$3518.52 Add to Cart
DPI:203
Size Configuration:Compact
User Interface:Full Touch Display
Rewinder:Rewinder Included
Label Taken Sensor:Sensor Included
Connection:USB+Ethernet
Power Supply:No Power Supply
PM45 Compact, Icon Display, Ethernet, Fixed Hanger, TT, 203 DPI, No Power Cord
PM45C Models are Non-Cancellable & Non-Returnable.
$2871.34 Add to Cart
DPI:203
Size Configuration:Compact
User Interface:Icon
Rewinder:No Rewinder
Label Taken Sensor:No Sensor
Connection:USB+Ethernet
Power Supply:No Power Supply
PM45A, Full Touch Display, USB+Ethernet, Fixed Hanger, TT, 203 DPI, US Power Cord
$2771.95 Add to Cart
DPI:203
Size Configuration:Compact
User Interface:Full Touch Display
Rewinder:No Rewinder
Label Taken Sensor:No Sensor
Connection:USB+Ethernet
Power Supply:Power Supply Included
