Intermec PD41

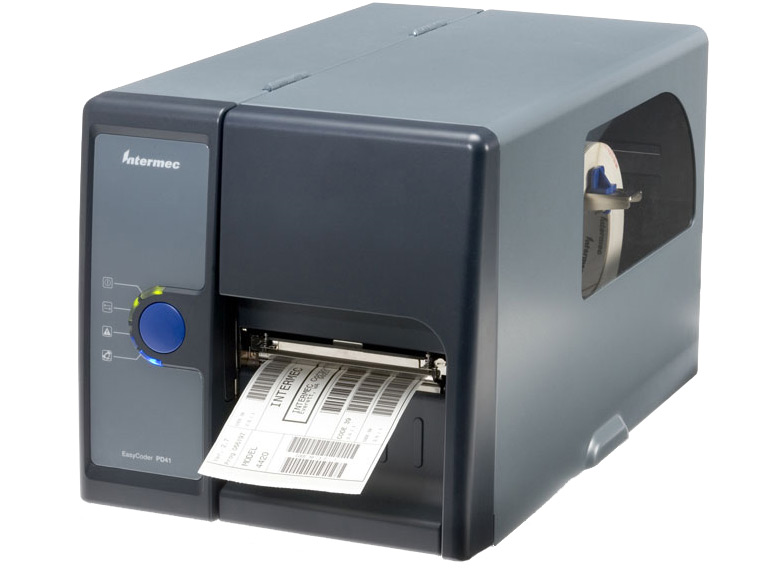

PD41 Product Image

The pictures shown are general images for product PD41 and may not be applicable to all part numbers

PD41 Barcode Printers

The Intermec PD41 has reached end of life. It has been replaced by the Intermec PX4i.

The PD41 Barcode Printer has been replaced by the PD43 Printer.

The Intermec PD41 barcode printer gives you industrial-class barcode printing without breaking the bank, excellent for medium volume printing jobs. The direct thermal or thermal transfer printheads print labels at up to 4" wide and at 203 or 300 dpi. With a metal chassis and covers, the Intermec PD41 barcode printer is a durable and hard working printer for any labeling operation.

  • RS-232 Serial, USB 2.0, Parallel, EasyLAN 10/100mbit interfaces
  • Continuous 6" per second print speed at 203 dpi
  • 8 MB SDRAM; 4 MB Flash upgradeable to 1 GB via compact flash slot
  • Prints smooth text, any size barcodes and graphics in all four orthogonal directions
  • Product Specifications
    Color Options Grey
    Interface Standard: Serial, USB v 2.0, parallel or ethernet
    Optional: Parallel IEEE1284 or EasyLAN integrated ethernet (RJ-45 connector for 10Base or 100baseTX)
    Print Method Direct thermal and thermal transfer
    Print Speed 6 in / second (150 mm / second) at 203 dpi - 4 in / second (100 mm / second) at 300 dpi
    Print Resolution 203 dpi
    Maximum Print Area Width: 4.09 in (104 mm) at 203 dpi - 4.16 (105.7 mm) at 300 dpi
    Length: 59.8 in (1520 mm) at 203 dpi - 40.5 in (1025 mm) at 300 dpi
    Paper Dimensions Width: 1 to 4.64 in (25 to 118 mm)
    Roll Diameter: 8.35 in (213 mm)
    Paper Thickness 2.3 to 9.8 mil
    Resident Fonts 15 TrueDoc™ scalable fonts including 12 UNICODE (1 WGL4 including Latin, Baltic, Cyrillic, Greek and Turkish characters ), 1 symbol, 1 OCR-A, 1 OCR-B. Font cache for maximum performance. ATF font support. Asian, Hebrew and Arabic fonts available as option.
    Barcodes Supported Linear: Codabar, Code 11, Code 39, Code 39 full ASCII, Code 39 w. checksum, Code 93, Code 128, Code 128 Subset A-C, DUN-14/16, EAN-8, EAN-13, EAN-128, EAN-128 Subset A-C, Five-Character Supplemental Code, Industrial 2 of 5, Industrial 2 of 5 w. checksum, Interleaved 2 of 5, Interleaved 2 of 5 w. checksum, Interleaved 2 of 5 A, Matrix 2 of 5, Postnet, Straight 2 of 5, Two-Character Supplemental Code, UCC-128 Serial Shipping Container Code, UPC-5 digits Add-On Code, UPC-A
    Barcodes Continued Linear Continued: UPC-D1 to D5, UPC-E, UPC Shipping Container Code, RSS, Planrt, Plessey

    2D: Code 16K, Code 49, Data Matrix, MaxiCode, MSI(modified Plessey), PDF 417, QR Code, MicroPDF417, EAN.UCC Composite
    Graphics Printing Supports PCX file format, traditional BT201 Intelhex format and High-Speed Image Buffer printing
    Memory 4 MB Flash, 8 MB SDRAM
    Two Color Printing Capabilities No
    Auto Cutter Optional
    Internal Rewind Optional
    LCD Display No
    Weight 28.7 lb (13 kg)
    Dimensions 17.8L x 10.8H x 10.6W in (453 x 273 x 270 mm)
    Operating Temperature 41°F - 104°F (5°C - 40°C)
    Software Included InterDriver™ Windows printer drivers with ActiveX Controls - Intermec LabelShop® START label design and print package - PrintSet for printer configuration - IPNM (Intermec Printer Network Manager) for administration of network connected printers
