Intermec PM4i

PM4i Barcode Printers


The Intermec PM4i has reached end of life.

The PM4i has been discontinued and is replaced by the PM43.

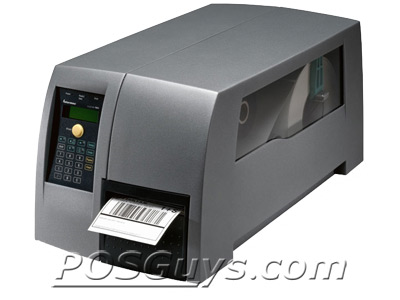

The Intermec PM4i industrial barcode printer provides crisp and accurate barcode printing with optional RFID encoding, adding to inventory tracking methods and enhancing loss prevention. A maximum print width of 4" combines with UHF Gen 2 RFID support to give the PM4i the tools necessary to print crisp, clear, and easy to read/track labels for any inventory control location. The PM4i can also act as a smart client, executing user-defined programs without the aid of a PC, and controlling other devices, making it an excellent solution for any labeling operation.



Standard Features
  • Direct Thermal or Thermal Transfer printing mechanisms
  • Supports ISO 18000-6B and EPC Generation 2/ ISO 18000-6C RFID Standards
  • RS-232, USB, Ethernet, Parallel, 802.11b Wireless Interfaces available
  • 7.6" per second print speed
  • 8 MB RAM & 4 MB Flash ; upgradeable to 16 MB RAM/16 MB Flash
  • Product Specifications
    Color Options Grey
    Interface USB 1.1, serial RS-232, EasyLAN internal ethernet, wand interface for EasySet™ system (optional parallel IEEE1284 or wireless)
    Print Method Direct thermal / thermal transfer
    Print Speed 76 labels per minute (4 x 6 inch label)
    Print Resolution 203 dpi
    Maximum Print Area Width: 104 mm (4.09 in) at 203 dpi, 105.7 mm (4.16 in) at 300 dpi
    Length: 2520 mm (99.2 in)
    Paper Dimensions Width: 114.3 mm (4.5 in) maximum
    Roll Diameter: 213 mm (8.38 in) maximum
    Paper Thickness 2.5 to 7 mil
    Character Set Fingerprint/DP: 15 TrueType™ fonts including 12 UNICODE (1 WGL4), 1 symbol, 1 OCR-A, 1 OCR-B. All fonts are scalable. Font cache for maximum performance. ATF font support. IPL firmware: 3 TrueType fonts and 20 bitmap fonts.
    Barcodes Supported 1-dimensional: Code 2 of 5, Codabar, Code 11, Code 39,
    Graphics Printing Supports PCX format
    Memory 4 MB flash, 8 MB SRAM
    Printer Languages IPL, Fingerprint/Direct Protocol
    Two Color Printing Capabilities No
    Auto Cutter Optional
    Peeler / Presenter Optional Integral Self-Strip unit with Liner Takeup,
    Internal Rewind No
    LCD Display Back-lit LCD for 2x16 characters
    Weight 29.76 lb (13.5 kg)
    Dimensions 21.38L x 10.28H x 11.73W in (54.3 x 26.1 x 29.8 mm)
    Operating Temperature 40° to 104°F (5° to 40°C)
    Software Included Software Development Kit: A custom fingerprint program to interface with RFID module and host system is easily generated through the use of intermec fingerprint ApplicationBuilder (IFAB), a software development kit for Fingerprint with RFID libraries

    Intermec PM4i Reviews

    POSGuys Rating:

    Customer Reviews

    This product has not been reviewed yet, be the first to share your experience

    Add a customer product review

    Recommended Models

    PM4i - 203 DPI Direct Thermal/Thermal Transfer, Fingerprint Firmware, Paper Hanger, 16MB RAM, Ethernet Interface
    Please Call
    • color: Grey
    • interface: Ethernet
    • special feature: Paper Hanger
    • firmware: Fingerprint
    PM4i - 300 DPI Direct Thermal/Thermal Transfer, Fingerprint Firmware, Paper Hanger, 16MB RAM, Ethernet Interface
    Please Call
    • color: Grey
    • interface: Ethernet
    • special feature: Paper Hanger
    • firmware: Fingerprint
    PM4i - 203 DPI Direct Thermal/Thermal Transfer, Fingerprint Firmware, Paper Hanger, Paper Rewind Self Strip, 16MB RAM, Ethernet Interface
    Please Call
    • color: Grey
    • interface: Ethernet
    • special feature: Paper Hanger, Paper Rewind Self Strip
    • firmware: Fingerprint
    PM4i - 203 DPI Direct Thermal/Thermal Transfer, IPL Firmware, Paper Hanger, 16MB RAM, Ethernet Interface
    Please Call
    • color: Grey
    • interface: Ethernet
    • special feature: Paper Hanger
    • firmware: IPL
    PM4i - 203 DPI Direct Thermal/Thermal Transfer, IPL Firmware, Paper Hanger, 16MB RAM, Ethernet/Parallel Interface
    Please Call
    • color: Grey
    • interface: Ethernet/Parallel
    • special feature: Paper Hanger
    • firmware: IPL
    PM4i - 203 DPI Direct Thermal/Thermal Transfer, IPL Firmware, Paper Hanger, 16MB RAM, Wireless Interface
    Please Call
    • color: Grey
    • interface: Wireless
    • special feature: Paper Hanger
    • firmware: IPL

    Accessories

    1-010044-900 Replacement Printhead (300 dpi) - PM4i $350.00 Add to Cart
    1-206012-90 Cutter - PM4i $560.00 Add to Cart
    1-010043-900 Replacement Printhead (203 dpi) - PM4i $285.00 Add to Cart
