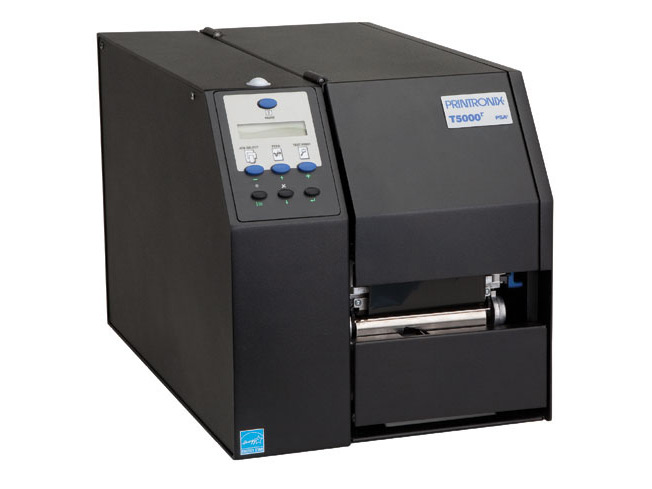

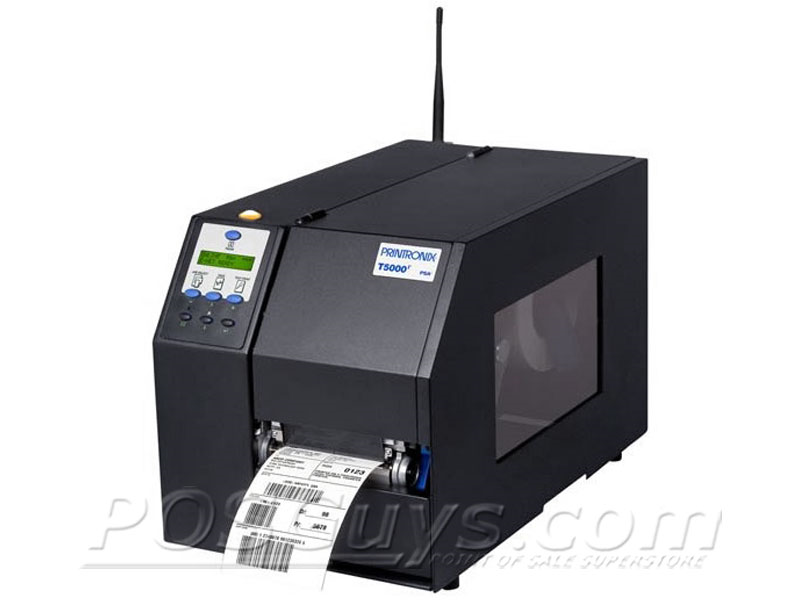

Printronix T5000r
The pictures shown are general images for product T5000r and may not be applicable to all part numbers
T5000r Barcode Printers
The Printronix T5000r has reached end of life.
The Printronix T5000r Thermal Barcode Printers provide heavy duty flexibility and reliability, making them ideal for high volume printing environments. This industrial barcode printer uses a 32-bit processor, providing ultra-fast processing and expert performance. The T5000r is user friendly with it's easy side-load, snap-in printheads, and simple resolution change. Other features include a 32MB SDRAM memory and 8MB Flash, aluminum die-cast design providing tank-like durability, and a unique dual motor ribbon system, eliminating clutch replacement and ribbon wrinkle. Serial, Parallel, and USB Interfaces.
Features
• Online Data Verification models verify barcode quality and will reprint bad labels
• Print Widths up to 8"
• Serial, Parallel, USB, Ethernet interfaces standard
Features
• Online Data Verification models verify barcode quality and will reprint bad labels
• Print Widths up to 8"
• Serial, Parallel, USB, Ethernet interfaces standard
Product Specifications | |
---|---|
Color Options | Grey |
Interface | Standard: Ethernet, serial, IEEE1284 Centronics, USB 2.0 Optional: Wireless (128 bit WEP, WPA-PSK/TKIP (personal), WPA2-PSK / AES CCMP (personal / enterprise), PEAPv0 MScHAPv2, LEAP, TTLS), Coax/Twinax, GPIO |
Print Method | Direct thermal or thermal transfer |
Print Speed | 6 to 10 in / second depending on model and dpi (see data sheet for details) |
Print Resolution | 203 dpi, 303 dpi (optional) |
Maximum Print Area | 4 Inch Models 4.1 in 6 Inch Models: 6.6 in (168 mm) 8 Inch Models: 8.5 in (216 mm) |
Paper Dimensions | 4 Inch Models Width: 1 to 4.5 in Roll Diameter: 8 in maximum 6 Inch Models Width: 2 to 6.8 in Roll Diameter: 8 in maximum 8 Inch Models Width: 3 to 8.75 in Roll Diameter: 8 in maximum |
Paper Thickness | 0.0025 to 0.0100 in (0.0635 to 0.254 mm) |
Character Set | Unicode with TrueType font support |
Resident Fonts | OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate, CG Triumvirate Bold, CG Triumvirate Bold Condensed |
Barcodes Supported | AUSTPORT, Aztec, BC35, BC412, CODABAR, Code 11, Code 35, Code 39, Code 93, Code 128 (A,B,C), EAN8, EAN13, FIM, I-2/5, German I-2/5, GS1-128, GS1-Databar, GS1-DATAMATRIX, IMB, Interleaved 2/5, ITF14, Matrix, MAXICODE, MSI, PDF417, PLANET, PLESSEY, POSTNET, POSTBAR, ROYALBAR, TELEPEN, UPC-A, UPC-E, UPC-E0, UPCSHIP, UPS11 |
Graphics Printing | PCX, BMP, TIFF |
Memory | 16 MB Flash, 64 MB DRAM |
Emulation | Printronix, Zebra, TEC, Intermec, Sato, Datamax, IER Siege, Monarch, XML, IPDS (Optional) |
Printer Languages | PGL, ZGL, TGL, IGL, STGL, DGL, IEGL, MGL, XML |
Two Color Printing Capabilities | No |
Auto Cutter | Optional |
Peeler / Presenter | Optional |
Internal Rewind | Optional |
LCD Display | 32 Character message display |
Weight | 4 Inch Models: 37 lb 6 Inch Models: 40 lb 8 Inch Model: 43 lb |
Dimensions | 4 Inch Models: 11.7W x 20.5L x 13H in 6 Inch Models: 13.4W x 20.5L x 13H in 8 Inch Models: 15.4W x 20.5L x 13H in |
Operating Temperature | 40° to 104°F (5° to 40°C) |
Software Included | Windows drivers (NT, 2000, XP, Vista, 7), |
