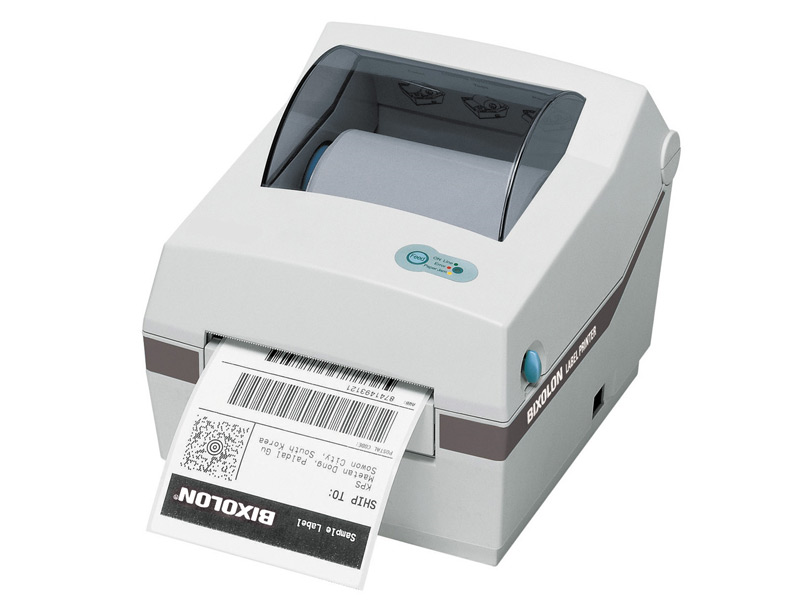

Samsung SRP-770II
The pictures shown are general images for product SRP-770II and may not be applicable to all part numbers
SRP-770II Barcode Printers
The Samsung SRP-770II has reached end of life.
The Bixolon Samsung SRP-770II Barcode Label Printer provides crisp printouts in a small form factor. A 5" per second print speed ensures quick label printing of labels up to 4" wide, fast enough to keep up with the large form industrial printers. With built-in RS 232, Parallel, USB, and Ethernet interfaces, the Bixolon Samsung SRP-770II Is an excellent choice for a variety of labeling stations.
Features 20,000,000 line print life
SLCS, EPL II, and ZPL II Compatible
Samlabel label creation software included
Windows 98, 2000, XP, Vista compatible
These printers do not ship with labels. Labels can be ordered here.
Features
These printers do not ship with labels. Labels can be ordered here.
| Product Specifications | |
|---|---|
| Color Options | White |
| Interface | USB all in one (standard), serial RS232, IEEE1284, Ethernet, Bluetooth |
| Print Method | Direct thermal |
| Print Speed | 127 mm / second (5 ips) |
| Print Resolution | 203 dpi |
| Paper Dimensions | Width: Roll type 1.5 to 4.2 in (38.1 to 106 mm) - Fan fold type: 2.9 to 4.4 in (41 to 112 mm) Roll Diameter: Maximum 5.1 in (130 mm) |
| Character Set | 10 Resident Bitmap Fonts, 22 Code Page, Expandable Up to 4X, Soft Front Storage BMP, PCX Graphic Supported |
| Graphics Printing | Logo printing (BMP, PCX file) supported |
| Emulation | SLCS, EPL II, ZPL II |
| Printer Languages | Bixolon SRP 770II |
| Two Color Printing Capabilities | No |
| Auto Cutter | Optional |
| Peeler / Presenter | Yes |
| Internal Rewind | No |
| LCD Display | No |
| Dimensions | 184W x 221L x 171H mm |
| Wall Mountable | No |
| Operating Temperature | 32°F to 113°F (0°C to 45°C) |
| Software Included | Samlabel label creation software |
Samsung SRP-770II Reviews
Read the comprehensive Samsung SRP-770II Review by POSGuys' Staff
Customer Reviews
| Downloads |
|---|
| Data Sheet |
| Manual |
| Drivers |
| Seagull Windows Drivers |
