TSC TDP-225W

TDP-225W Barcode Printers

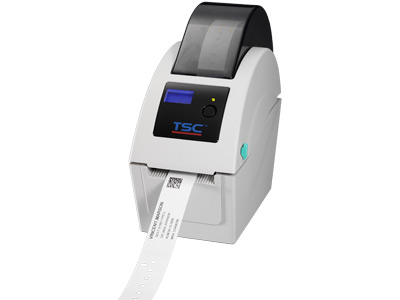

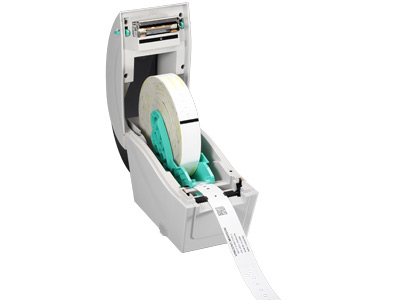

The TSC TDP-225W wristband printer utilizes a taller than average design and advanced features to minimize downtime and keep your labeling operations running smoothly. The taller design of the TDP-225W allows it to hold rolls up to 6.5" in diameter, a standard size sold by major wristband manufacturers. At 5" per second, the print speed of the TDP-225W ensures quick printing, and the 203 dpi thermal printhead gives you crisp and easy to read printouts.

With USB 2.0 and Ethernet connectivity standard, the TDP-225W is installed easily into any system, and the verbose status messages on the LCD screen make it easy to troubleshoot even away from a PC. Plugging in a keyboard and loading the built-in wristband printing program turns the TDP-225W into a standalone printing solution in the event of connectiviy issues, making this a versatile and easy to use wristband printing solution.

Standard Features
  • Direct Thermal Print Mechanism
  • Up to 5" per second print speed
  • TSP-EZ, EPL, ZPL print language compatibility
  • USB, Ethernet interfaces
  • Supports continuous, die-cut, black mark, fan-fold, notch, and wristband media
  • Product Specifications
    Color Options White
    Interface USB 2.0, ethernet, USB host for scanner or PC keyboard (factory option)
    Print Method Direct thermal
    Print Speed 2, 3, 4, and 5 inch / second (2, 3 inch / second with peel function)
    Print Resolution 203 dpi
    Maximum Print Area Width: 2.05 inch (52 mm)
    Length: 90 inch (2,286 mm)
    Paper Dimensions Width: 2.05 inch (52 mm) maximum
    Core Diameter: 1 inch (25.4 mm)
    Dimensions 10.24L x 4.29W x 8.27H in (260 x 109 x 210 mm)
    Paper Thickness 2.3 to 7.4 mil (0.06 to 0.19 mm)
    Resident Fonts 8 alpha-numeric bitmap fonts, One Monotype Image® CG Triumvirate Bold Condensed scalable font
    Barcodes Supported Linear Barcodes: Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China POST, RSS-14, Code 11

    2D Barcodes: PDF-417, Maxicode, DataMatrix, QR code, Aztec
    Memory 4 MB flash, 8 MB SDRAM, MicroSD card slot for memory expansion
    Printer Languages TSPL-EZ™
    Two Color Printing Capabilities No
    Auto Cutter Optional - guillotine cutter full cut or partial cut
    Peeler / Presenter Optional - peel off module assembly
    Internal Rewind No
    LCD Display 128 x 64 pixels graphic type LCD display with back light
    Wall Mountable Yes
    Operating Temperature 41°F - 104°F (5°C - 40°C)
    Software Included Windows labeling software
