TSC TTP-247
The pictures shown are general images for product TTP-247 and may not be applicable to all part numbers

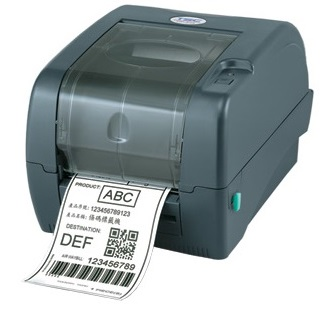

TTP-247 Barcode Printers
This product replaces the older TSC TTP-245 Plus.
The TSC TTP-247 barocde printer meets the needs of industrial print jobs while maintaining a small footprint. The 4" wide printer uses an industrial-grade metal printhead, ensuring greater time before replacement. Separate motors for the print ribbon and label feeder lowers torque and improves the lifespan of the printer, while also quieting general print operations.
Standard models can use a 5" diameter label roll, and with an optional external media hanger, you can work with label rolls up to 8.4" in diameter. And because the TTP-247 uses two motors, labels are printed out at up to 7 inches per second, giving you industrial-grade printing in an economical package.
Features
• Separate ribbon and feed motors extend life and minimize noise
• Long-lasting all metal printhead
• USB standard on all models
• SD card slot allows for 4GB extra Flash memory
• Supports ZPL and EPL
• Compatible with Zebra media
| Product Specifications | |
|---|---|
| Color Options | Grey |
| Interface | USB 2.0 (full speed mode), RS-232, Centronics |
| Print Method | Direct thermal / thermal transfer combo |
| Print Speed | 2 - 7 ips |
| Print Resolution | 203 dpi |
| Maximum Print Area | Width: 4.25 in (108 mm) Length: 90 in (2,286 mm) |
| Paper Dimensions | Width: 0.78 to 4.4 in (20 to 112 mm) Core Diameter: 1 to 3 in (25.4 to 76.2 mm) |
| Paper Thickness | 0.06 to 0.19 mm |
| Resident Fonts | Eight alpha-numeric bitmap fronts, One Monotype Imaging® CG Triumvirate Bold Condensed scalable font Built-in Monotype® True Type Font engine |
| Barcodes Supported | Linear Barcode: Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11 2-Dimensional: PDF-417, Maxicode, DataMatrix, QR Code, Aztec |
| Memory | 4 MB Flash, 8 MB SDRAM, SD card reader for memory expansion, up to 4 GB |
| Emulation | Eltron™, Zebra™ |
| Printer Languages | TSPL-EZ™ |
| Two Color Printing Capabilities | No |
| Auto Cutter | Optional - guillotine cutter with full or partial cut |
| Peeler / Presenter | Optional |
| Internal Rewind | No |
| LCD Display | No |
| Dimensions | 12.36L x 8.39W x 7.4H in (314 x 213 x 188 mm) |
| Wall Mountable | No |
| Operating Temperature | 41°F - 104°F (5°C - 40°C) |
| Software Included | Diagnostic Utility |
| In The Box | Printer, quick start guide, USB port cable, external universal switching power supply, power cord, label spindle, 2 fixing tabs, 2 1.5 in core adapers, 2 ribbon spindles, ribbon rewind spindle paper core |
TSC TTP-247 Reviews
Customer Reviews
| Downloads |
|---|
| Data Sheet |
| TSC Diagnostics Tool |
| Manual (English) |
| Manual (Español) |
| Quick Start Guide (English) |
| Quick Start Guide (Español) |
| Seagull Windows Driver |
| Windows Driver |
| TSC Console Setup Utility |
