TSC TTP Series

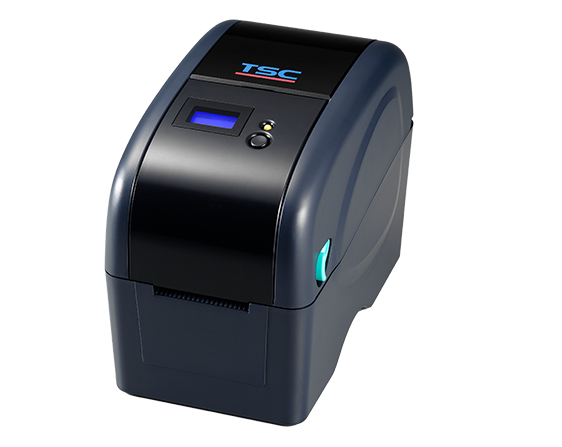

The pictures shown are general images for product TTP Series and may not be applicable to all part numbers

TTP Series Barcode Printers


The TTP Series of 2-inch desktop thermal transfer printers brings TSC quality, innovation, performance, reliability, and value to the small footprint 2-inch wide printer market.

The TTP-225 Series delivers premium performance for most retail, medical and office applications at an affordable price. The TTP-225 features a user-friendly clamshell design with a large 5-inch OD center biased media capacity. Designed with no loose parts, it is the perfect size when you need a space-saving printer for 2-inch wide labels or tags. Simply open the cover and drop your labels into the printer's spring-loaded media guide. Top of form sensing by gap, black mark, or notch is standard and completely adjustable from side to side.

Choose either standard 203 dpi or higher resolution 300 dpi solutions. The TTP-225 features 203 dpi resolution and print speeds up to 5 inches per second. The 300 dpi TTP-323 is ideal for 2-D barcodes, fine text, and small graphics labeling.

The TTP-225 is one of the first low-cost thermal transfer compact 2-inch desktop printers to offer an optional LCD display to its customers. The LCD is used to present important information about print job status and setup which brings a new level of ease of use to its customers. Other outstanding features include an inexpensive internal Ethernet adapter for easy integration into network systems, cutters, label present sensor, and an optional keyboard for printing labels in stand-alone or down-time situations.

Product Specifications
Print Resolution 203dpi (or 300pi on TTP-323 model)
Print Method Direct Thermal / Thermal Transfer
Display LCD with buttons LED with buttons
Connectivity Ethernet, Serial RS-232, USB, Bluetooth
Max. Print Speed 203dpi - Up to 5 ips (127 mm/s) / 300dpi - 3 ips (76 mm
Max Print Width 2.13" (54 mm)
Max. Media Diameter 5" (127 mm) OD
Inner Core 1" - 1.5" (25.4 - 38 mm)
Max Media Width 0.59" - 2.36"
Ribbon Length (max) 90 Meters
Max Ribbon Width 2.20" - 2.28
Emulations (Languages) TSPL-EZD

TSC TTP Series Reviews

POSGuys Rating: Not Rated

Customer Reviews

Recommended Models

TTP-323, 300dpi. USB & RS232 + MicroSD Slot.
TTP-225, 203dpi. USB & Ethernet + LCD display. Navy.

Additional Models

TTP-225, 203dpi. USB & RS232 + LCD display & Micro SD Slot. Navy.

Accessories

2" Ribbon Take-Up Core For 2" Thermal Transfer Printers. 0.5" OD. (Three Pack)

Previously Available Models
