Zebra 220Xi4

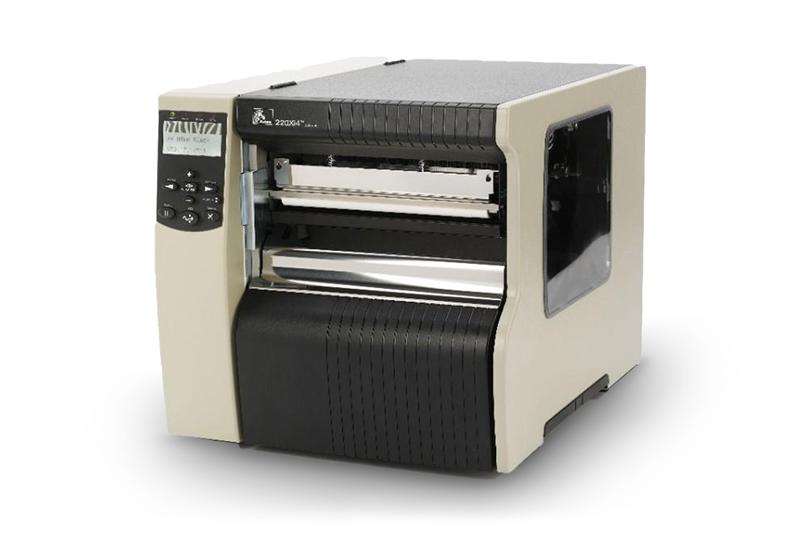

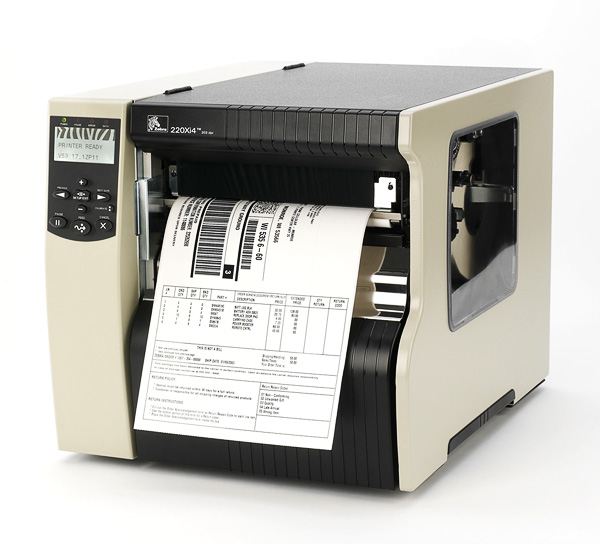

The pictures shown are general images for product 220Xi4 and may not be applicable to all part numbers
220Xi4 Barcode Printers
The Zebra 220Xi4 is nearing end of life. It will soon be replaced by the Zebra ZT600.
Zebra’s built-to-last 220Xi4 printer is renowned for it’s incredible durability, consistently outstanding print quality, fast print speed, long life and unparalleled reliability in demanding applications. The 220Xi4 is designed for printing of labels up to 8" wide for chemical drum or other wide label applications. The ZT610 or ZT620 Industrial printers are the preferred printers for high volume print applications with a print width of less than 6.6" (168 mm).
Product Specifications | |
---|---|
Dimensions (L x W x H): | 19.5 in. L x 13.25 in. W x 12.75 H 495 mm L x 336 mm W x 324 mm H |
Weight | 72 lbs. / 32.7 kg |
Memory | 64 MB flash; 16 MB Ram |
Maximum Print Width | 8.5"/216 mm |
Maximum Print Speed | 10"/254 mm per econd (203 dpi); 6"/152.4 mm per second (300 dpi) |
Media Width | 4.25" (108) to 8.8" (224 mm) |
Media Roll Diameter | 8.0 (203 mm) outside diameter on a 3" (76 mm) inside diameter core |
Media Thicknes | 0.003"/0.076 mm to 0.012"/0.305 mm |
Ribbon Length | |
Max ribbon Width | 4.25" (108 mm) to 8.6" (220 mm) |
Ribbon Inner Core | 1.0"/25.4 mm |
Operating Temperature | Operating Temperature: 40°F to 105°F/5°C to 40°C
|
Downloads |
---|
220Xi4 Spec Sheet |
