Zebra GX430 Series

The pictures shown are general images for product GX430 Series and may not be applicable to all part numbers

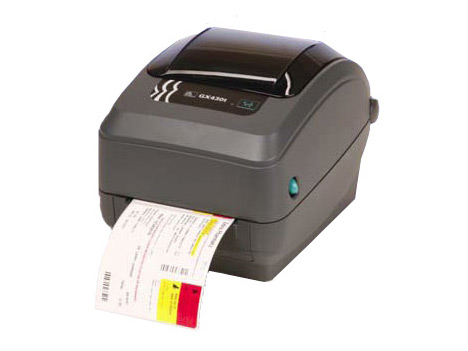

GX430 Series Barcode Printers

The Zebra GX430 Series has reached end of life. It has been replaced by the Zebra ZD621.

The Zebra GX430t barcode printer is an ideal choice for low to medium volume printing locations looking for higher quality, 300 dpi labels. A thermal transfer printer, the GX430t prints 4" wide labels at up to 4" per second. All models come standard with USB and RS-232 serial interfaces, and with an optional parallel or ethernet interface for additional installation versatility.

  • ZPL and EPL compatible
  • 300 dpi print resolution
  • 8 MB SDRAM ; 4 MB Flash
  • Tool-less printhead and platen replacement
  • Product Specifications
    Color Options Grey
    Interface Serial RS-232, USB V1.1, Parallel, ZebraNet 10/100 Ethernet (optional) 802.11b/g wireless (optional), Bluetooth wireless (optional) Wireless options include LCD for visual communication
    Print Method Direct thermal / thermal transfer combo
    Print Speed Maximum 4 in / second (102 mm / second)
    Print Resolution 300 dpi / 12 dots per mm
    Maximum Print Area Width: 4.09 in (104 mm)
    Length: 39 in (991 mm)
    Paper Dimensions Width: 0.75 to 4.25 in (19 to 108 mm)
    Paper Thickness 0.003 to 0.0075 in (0.08 to 0.19 mm)
    Character Set Native open type font support, Unicode™ compliant for multi-language, on-demand thermal printing
    Resident Fonts ZPL: 16 resident expandable ZPLII bitmap fonts, one resident scalable ZPL font
    EPL: Five resident expandable EPL2 fonts
    Barcodes Supported Barcode Ratios: 2:1 (non-rotated) and 3:1

    Linear Barcodes: Codabar, Code 11(ZPL), Code 128, Code 39, Code 93, Code 93, EAN-13, EAN- 8, EAN-14(ZPL), GermanPost Code(EPL), Industrial 2-of-5 (ZPL), Interleaved 2-of-5, Japanese Postnet(EPL), ISBT-128(ZPL), Logmars(ZPL), MSI, Plessey, Postnet, GS1 DataBar(RSS-14), Standard 2-of-5(ZPL), UCC/EAN-128(EPL), UPC and EAN 2 or 5 digit extensions(ZPL), UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E, and GS1 Databar (RSS)
    Barcodes Continued 2-Dimensional: Codablock (ZPL), Code 49 (ZPL), Data Matrix, MaxiCode, QR Code, PDF417, MicroPDF417, Aztec - For EPL and ZPL except where noted
    Graphics Printing Supports user-defined fonts and graphics including custom logos, ZPL II drawing commands for boxes and lines
    Memory Standard: 4 MB Flash, 8 MB SDRAM
    Optional: 8 MB (12 MB total) Flash with RTC)
    Printer Languages EPL and ZPL co-resident
    Auto Cutter Optional
    Peeler / Presenter Optional
    Internal Rewind No
    LCD Display No
    Weight 4.6 lb (2.1 kg)
    Dimensions 7.6W x 7.5H x 10D in (193 x 191 x 254 mm)
    Wall Mountable No
    Operating Temperature 40°F - 105°F (5°C - 41°C)
    In The Box Documentation and software, ribbon core, printer, USB cable, power cord (may not be included depending on region), power supply

    Zebra GX430 Series Reviews

    POSGuys Rating:

    Aug '17: 3/5 Stars: The GX430 was the high density desktop printing for Zebra for several years but since has been replaced in most scenarios by the lower cost and easier to use ZD420 (300 DPI versions). The GX430 is based around print quality by using 300dpi printing and a slower and more controlled 4 inches per second print speed. In applications looking to print very compact and small barcodes or have a need for extra detailed graphics the GX is a great choice. If you are looking for faster print speeds and do not have a need for highly detailed printing then the ZD420 or GK420 are lower cost alternatives worth considering.

    Original Review: 5/5 Stars
