Zebra HC100

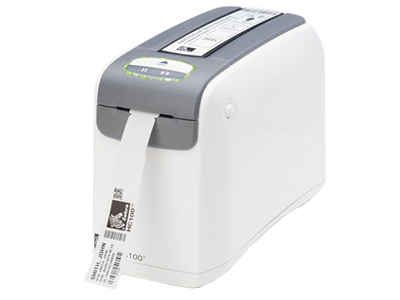

The pictures shown are general images for product HC100 and may not be applicable to all part numbers
HC100 Barcode Printers
The Zebra HC100 ID Bracelet printer provides a great solution for healthcare locations needing a printer in a small form factor. The 300 dpi direct thermal print mechanism prints bracelets up to 22" long and your choice of 0.75", 1", or 1.1875" widths. With standard RS-232 Serial, USB, and optional Ethernet or 802.11 b/g wireless interfaces, the Zebra HC100 is an excellent choice for any clinic or health care provider.
Features Tool-less printhead and platen replacement
2" per second print speed
16 MB SDRAM, 8 MB Flash, with optional 64 MB Flash Model
Wristbands feature silver antimicrobial coating, protecting against S. aureus, P. aeruginos, E. coli, and MRSA
Features
Product Specifications | |
---|---|
Color Options | White and Grey |
Print Method | Direct thermal |
Print Speed | 2 inch / second (51 mm / second) |
Print Resolution | 300 dpi |
Maximum Print Area | Width: 1.1875 in (30.16 mm) maximum Length: 22 in (558 mm) |
Paper Dimensions | Width: 1.1875 in (30.16 mm) maximum |
Resident Fonts | 16 resident expandable bitmap fonts, one resident scalable fonts |
Barcodes Supported | Linear: Codabar, Code 11, Code 128, Code 39, Code 93, EAN-13, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, RSS (reduced space symbology), standard 2-of-5, UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E 2D Barcodes: Aztec, Codablock, Code 49, Data Matrix, MaxiCOde, MicroPDF417, PDF417, QR Code |
Graphics Printing | Yes |
Memory | 8 MB flash (2 MB available to user), 16 MB SDRAM memory (4 MB available to user) |
Printer Languages | ZPL or ZPL II, XML enabled printing |
Two Color Printing Capabilities | No |
Auto Cutter | No |
Peeler / Presenter | No |
Internal Rewind | No |
LCD Display | No |
Weight | 3.1 lb (1.4 kg) |
Dimensions | 5W x 7W x 9.5D in (127 x 178 x 242 mm) |
Operating Temperature | -40°F to 140°F |
Software Included | Downloadable online - ZBI-Developer, ZebraDesigner™, ZebraLink Utility |
