Zebra S4M

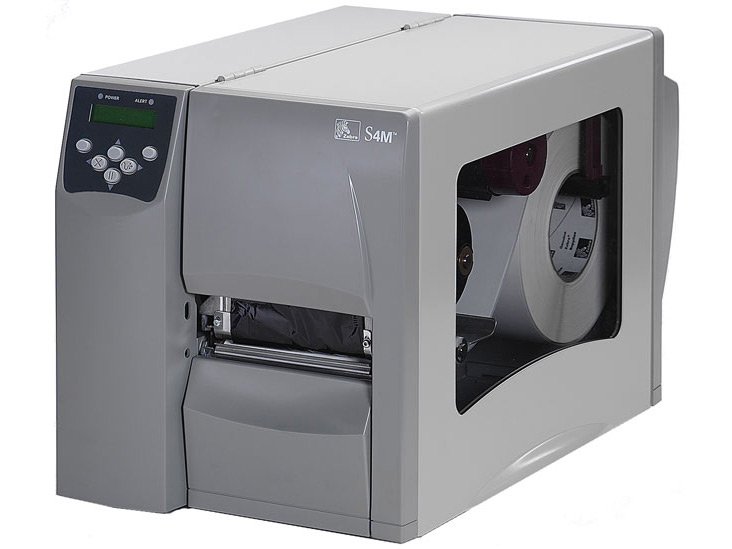

S4M Product Image

The pictures shown are general images for product S4M and may not be applicable to all part numbers

S4M Barcode Printers


The Zebra S4M has reached end of life. It has been replaced by the Zebra ZT200.

The Zebra S4M barcode printer merges reliability and versatility in a solid frame, ensuring long lasting use and excellent label printing. Designed with a complete die-cast frame and sheet metal enclosure, the S4M has tremendous sturdiness and resistance to the bumps and knocks that can occur in a rough environment.

For reliability and ease of use, the S4M features a side-loading design, saving time normally spent threading labels and ribbons. The printer is also compatible with ZPL, EPL, and APL programming languages, making it a snap to replace or upgrade an aging printer. Available with USB, RS-232 Serial, Parallel, Wired Ethernet, or 802.11b interfaces, the Zebra S4M easily integrates into nearly any location, making it ideal for advanced label creation.

Features
  • Available in Direct Thermal or combo Direct Thermal/Thermal Transfer modes
  • 6" per second print speed
  • Can take up to 8" diameter label rolls
  • Driver support for Windows 2000, XP, and Vista

    These printers do not ship with labels. Labels can be ordered here.
  • Product Specifications
    Interface Parallel, USB 1.1 and RS-232 serial ports
    Color Options Gray
    Print Method Direct thermal (standard) or thermal transfer (optional)
    Print Speed 6 in / second (152 mm / second)
    Print Resolution 203 dpi, 300 dpi (optional)
    Maximum Print Area Width: 4.09 in (104 mm)
    Length: 157 in (3,988) at 203 dpi - 73 in (1,854 mm) at 300 dpi (optional)
    Paper Dimensions Width: 0.75 to 4.5 in (19.4 to 114 mm)
    Roll Diameter: 8 in (203 mm)
    Paper Thickness 0.003 to 0.010 in (0.076 to 0.25 mm)
    Character Set IBM code page 850 international character set
    Resident Fonts 7 bitmapped, 1 smooth scalable (CG Triumvirate™ Bold Condensed)
    Graphics Printing Supports user-defined fonts and graphics including custom logos, ZPL II drawing commands for boxes and lines
    Memory 4 MB Flash, 8 MB DRAM
    Printer Languages ZPL II, EPL2™, APL
    Two Color Printing Capabilities No
    Auto Cutter No
    Peeler / Presenter Optional - front mount passive peel option with no take-up spindle
    Internal Rewind No
    LCD Display Yes
    Weight 27.2 lb (12.4 kg)
    Dimensions 10.7W x 11.6H x 18.8D in (272 x 295 x 477 mm)
    Operating Temperature 40° to 104°F (5° to 40°C)
    Software Included Zebra Designer, ZebraNet™ Bridge Enterprise, ZebraNet™ Utilities v 7.0, Zebra Universal Driver
