Zebra Xi Series

Alternate image for Xi Series Alternate image for 220 Xi Series Alternate image for 170 Xi Series Alternate image for 140 Xi Series
Part of Discontinued
POSGuys Rating:
Lifetime Support 1 Year Warranty 15 Day Return Period Free Shipping
View Zebra Xi Series Details

Recommended Models

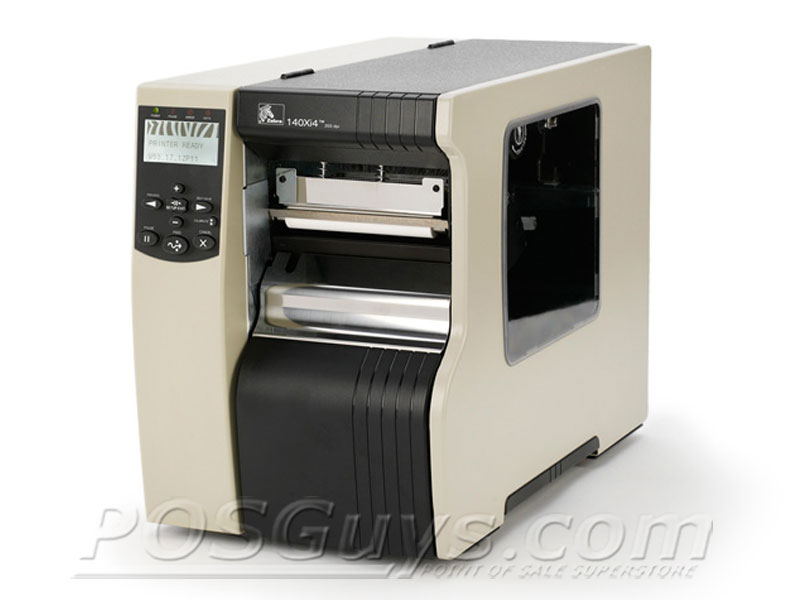

140-701-00000
140XiIII+ Direct/Thermal Transfer, 203 DPI, SER/PAR/USB Interface, 12ips, 5" Print Width
This model has reached end of life.
Please Call

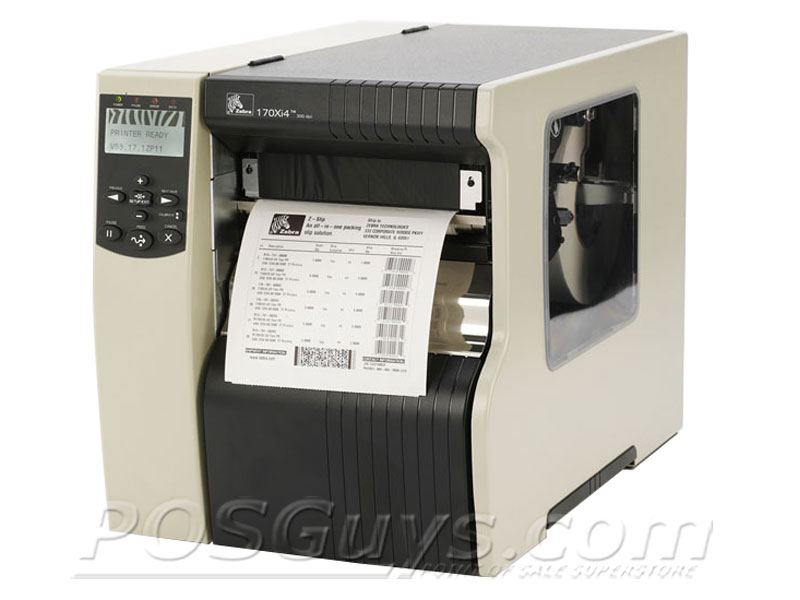

170-701-00000
170XiIII+ Direct/Thermal Transfer, 203 DPI, SER/PAR/USB Interface, 8ips, 6.6" Print Width
This model has reached end of life.
Please Call

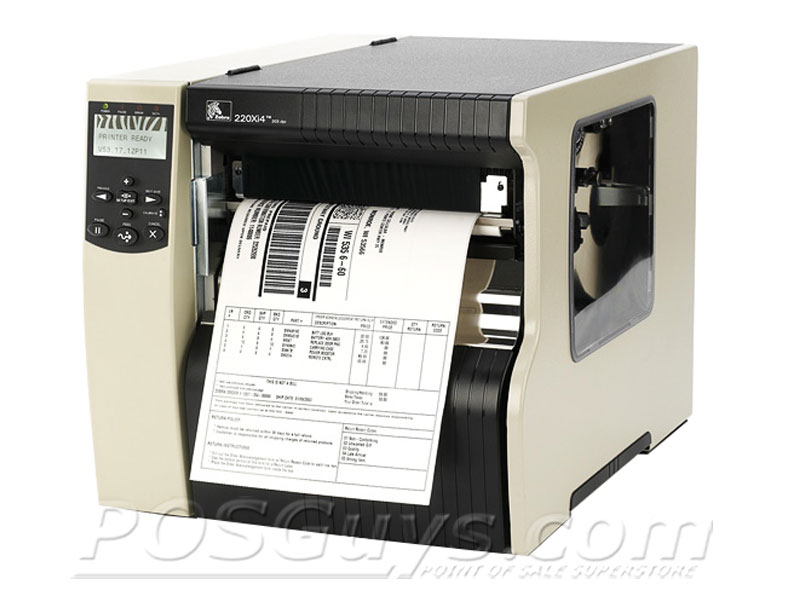

220-701-00000
220XiIII+ Direct/Thermal Transfer, 203 DPI, SER/PAR/USB Interface, 10ips, 8.5" Print Width
This model has reached end of life.
Please Call

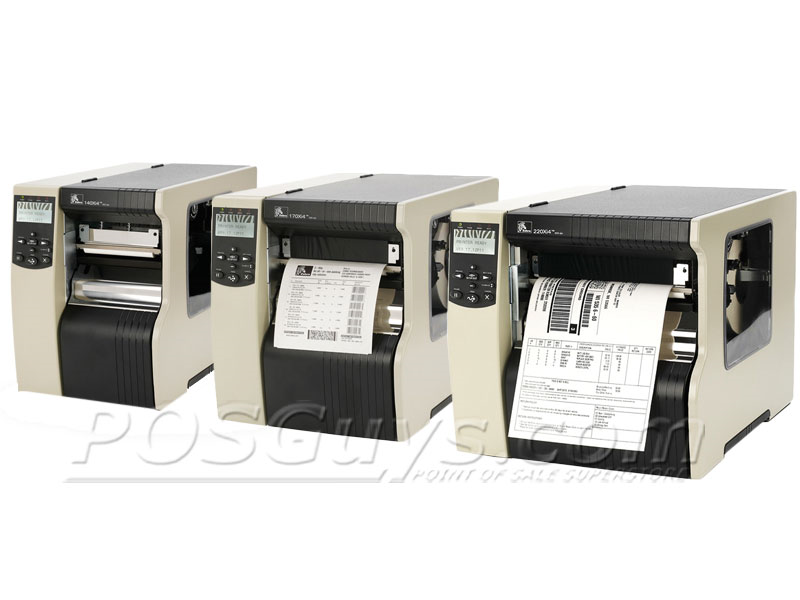

Xi Series Barcode Printers


The Zebra Xi Series has reached end of life.

The newest family of five, XiIIIPlus™ printers are superior performing Xis! There’s a labeling solution to fulfill any need— from 600 dpi resolution for small label printing to an 8.5-inch print width for wide labels and forms. Exciting, new features include a 32-bit processor; increased memory for label formats, graphics, fonts and ZBI™ programs; and an early warning notification for printhead maintenance support. XiIIIPlus printers also offer more connectivity choices than their competitors, including ZebraLink™, ZebraNet® Wireless Card Socket, and USB 2.0, serial, and parallel ports. iSeries (AS/400) network users may select from a wide range of twinax/coax and IPDS connectivity options. Add up all the bells and whistles, and it’s easy to see why XiIIIPlus printers take high performance to an all-new level!

*Additional Models Available Contact Sales for Information

These printers do not ship with labels. Labels can be ordered here.

Product Specifications
Interface USB 2.0, IEEE1284 parallel, serial RS232
Print Method Direct thermal or thermal transfer
Print Speed 140 XiIII Plus: 12 in / second (305 mm / second)
170 XiIII Plus: 8 in / second (203 mm / second)
220 XiIII Plus: 10 in / second (254 mm / second)
Print Resolution 140 XiIII Plus: 203 dpi
170 XiIII Plus: 300 dpi
220 XiIII Plus: 203 dpi
Maximum Print Area 140 XiIII Plus
Width: 5.04 in (128 mm)
Length: 39 in (991 mm)

170 XiIII Plus
Width: 6.6 in (168 mm)
Length: 39 in (991 mm)

220 XiIII Plus
Width: 8.5 in (216 mm)
Length: 39 in (991 mm)
Paper Dimensions 140 XiIII Plus
Width: 1.57 to 5.51 in (40 to 140 mm)
Roll Diameter: 8 in (203 mm)

170 XiIII Plus
Width: 2 to 7.1 in(51 to 180 mm)
Roll Diameter: 8 in (203 mm)

220 XiIII Plus
Width: 4.25 to 8.8 in (108 to 224 mm)
Roll Diameter: 8 in (203 mm)
Character Set IBM code page 850 international character set
Resident Fonts 7 bitmapped, 1 smooth scalable (CG Triumvirate™ Bold Condensed)
Barcodes Supported Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case C Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2 or 5 digital extensions, Plessey, Postnet, Standard 2 of 5, Industrial 2 of 5, Interleaved 2 of 5, LOGMARS, MSI, Codabar, Planet Code
2D Barcodes: Codablock, PDF-417, Code 49, DataMatrix, Maxi Code, QR Code, Micro PDF-417, TLC 39, RSS Code
Graphics Printing Supports user-defined fonts and graphics including custom logos
Memory 4 MB Flash, 16 MB SDRAM
Printer Languages ZPL II, ZBI™
Two Color Printing Capabilities No
Auto Cutter Optional
Peeler / Presenter Optional - label peel
Internal Rewind Optional
LCD Display Yes
Weight 140 XiIII Plus: 55 lb (25 kg)
170 XiIII Plus: 67 lb (30.5 kg)
220 XiIII Plus: 72 lb (32.7 kg)
Dimensions 140 XiIII Plus: 11.15W x 19.5D x 15.5H in (283.2 x 495 x 393.7 mm)
170 XiIII Plus: 13.15W x 19.5D x 15.5H (334.4 x 495 x 393.7 mm)
220 XiIII Plus: 15.65W x 19.5D x 15.5H (397.5 x 495 x 393.7 mm)
Wall Mountable No
Operating Temperature Direct Thermal: 32° to 104°F (0° to 40°C)
Thermal Transfer: 41°F - 104°F (5°C - 40°C)
