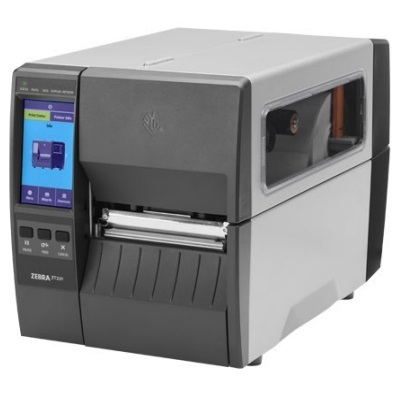

Zebra ZT231

The pictures shown are general images for product ZT231 and may not be applicable to all part numbers

ZT231 Barcode Printers


This product replaces the older Zebra ZT200.

The ZT231 delivers solid industrial performance at an affordable price. With a durable metal frame, the ZT231 is ideal for light industrial environments. Print crisp text and barcodes with optional 300 dpi resolution. Advance your label throughput with industry-leading print speeds up to 12ips at 203 dpi.

But the benefits of the ZT231 extend past printing alone. Reduce training time with the ZT231’s easy-to-use 4.3” full-color touchscreen. See status at a glance, access wizards and helpful how-to videos and make changes with the touch of a finger or gloved hand. Seamlessly integrate the ZT231 into your existing network as it is backwards compatible and features Printer Emulations to replace other brands without having to change label formats or rewrite code. The ZT231 also includes an all-new architecture to process more jobs at once and evolve with emerging technologies. Onboard analytics and printhead element out detection help you plan maintenance in advance. And, the easy tool-less platen and print head removal makes maintenance easy. With Zebra’s Printer Profile Manager Enterprise, part of Print DNA, you can easily manage, secure and troubleshoot your networked printers from any location. And an intuitive browser-based interface lets you see status at a glance, quickly triage issues to minimize downtime and perform updates and maintenance.

Take advantage of a variety of standard connectivity options including USB, Serial, Ethernet and USB Host. Tap to pair and print with compatible mobile devices with the Print Touch tag (NFC). Add a second Ethernet port, 802.11ac or an Applicator port.

Product Specifications
Dimensions (L x W x H): 17 in. L x 9.5 in. W x 11 in. - With Liner Takeup (17 in. L x 9.5 in. W x 12.75 in. H)
Weight 20 lbs./10.9 kg - With Liner Takeup (24 lbs./10.9 kg)
Print Resolution 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional)
Memory 256 MB SDRAM memory 256 MB on-board linear Flash memory
Maximum Print Width 4.09 in./104 mm
Maximum Print Speed 12 ips (203 dpi) 8 ips (300 dpi)
Maximum Print Length 203 dpi: 157 in/3988 mm 300 dpi: 73in/1854 mm
Minimum Label Length Tear mode: 0.7 in/18 mm Cutter mode: 1 in/25 mm Peel mode: 0.5 in/13 mm
Media Width 0.75 in./19.4 mm to 4.50 in./114 mm
Media Roll Diameter 8.0 in./203 mm O.D. on a 3.0 in./76 mm I.D. core 6.0 in./152 mm O.D. on a 1.0 in./25 mm I.D. core
Media Thickness 0.003 in./0.076 mm to 0.010 in./0.25 mm
Ribbon Length 1,476 ft./450 m
Max Ribbon Width 2 in./51 mm to 4.33 in./110 mm
Ribbon Inner Core 1.0 in./25.4 mm
Operating Temperature Thermal transfer: 40ºF to 105ºF/5º to 40ºC Direct thermal: 32ºF to 105ºF/0º to 40ºC

Zebra ZT231 Reviews

POSGuys Rating: Not Rated

Customer Reviews

Downloads
ZT231 Spec Sheet
