Zebra ZT421

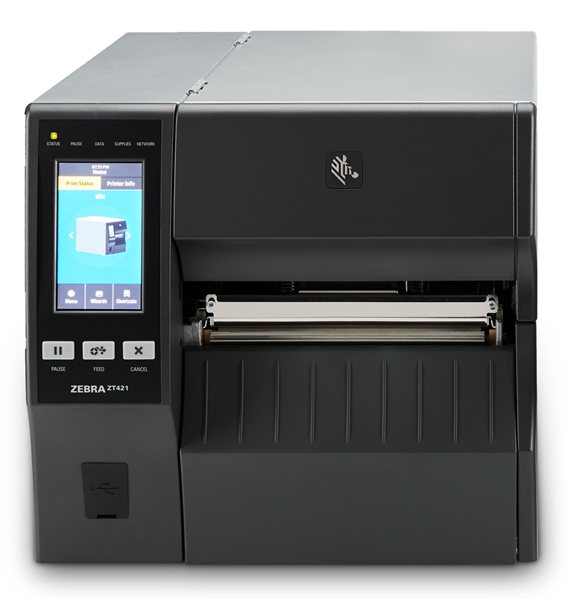

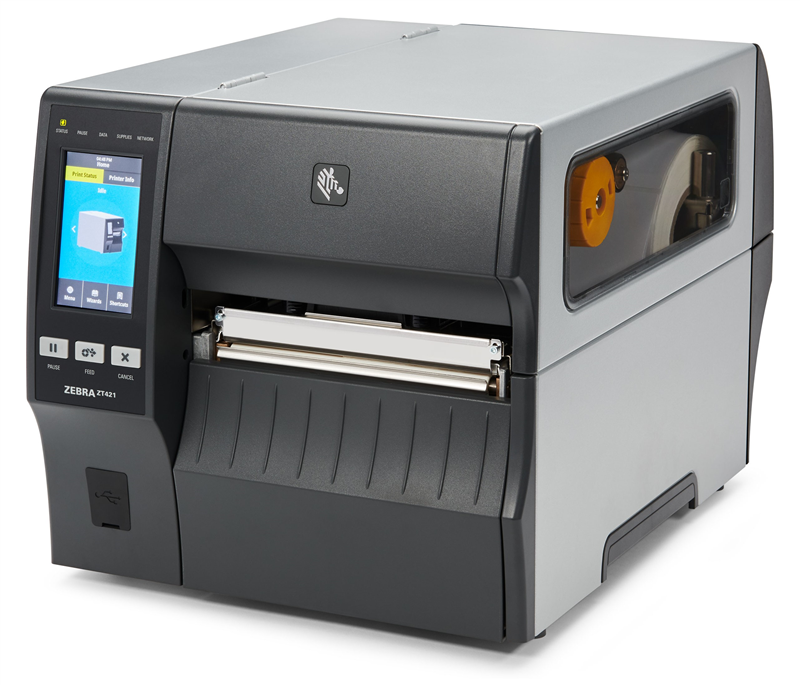

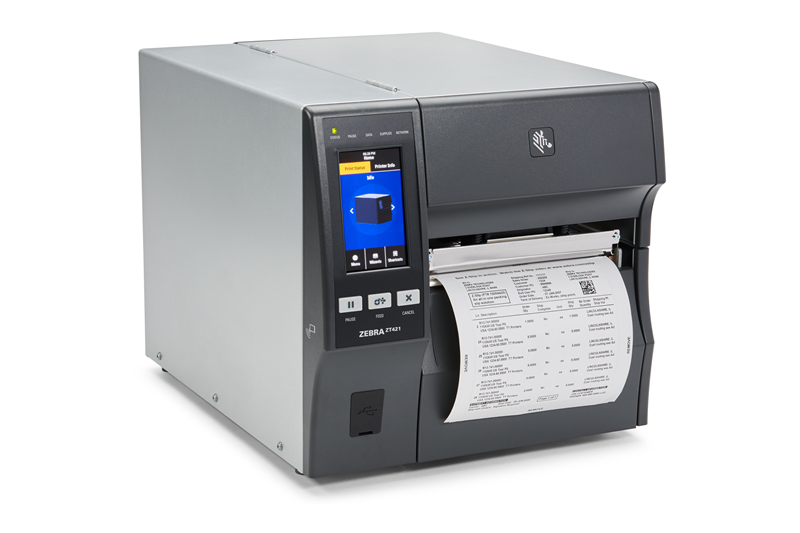

The pictures shown are general images for product ZT421 and may not be applicable to all part numbers
ZT421 Barcode Printers
Constructed with an all-metal frame and bi-fold door, ZT421 printers deliver advancements in print speed, registration and connectivity as well as additional advanced features.
The ZT400 Series offers industry-leading versatility, reliability and performance to meet your customer’s industrial printing needs. See printer status at a glance and change settings quickly with the standard 4.3-inch full-color touch display. Available in three print resolutions and two print widths–and offering field-upgradeable RFID encoding options for either general purpose UHF RFID tags or thicker, on-metal tags–the ZT400 Series addresses a broad array of applications. Simplify deploying and managing these printers with Zebra’s Print DNA™ suite of applications, utilities and developer tools.
- Features
- Multiple connectivity options, including the latest Wi-Fi. The ZT411 RFID comes standard with Ethernet, USB, USB Host, and Bluetooth 4.1. Add the optional dual-band wireless card with 802.11ac Wi-Fi and its latest security protocols, plus Bluetooth 4.1, for blazing fast and reliable wireless connections.
- You can count on the ZT421 to print a variety of different label formats on a variety of different media types.
- The side-loading supplies path makes loading simpler, faster and more intuitive. The color-coded media path guides the user on how to thread the media and ribbon through the printer, while lighted paths make it easy to see, even in poorly lit environments.
- Constructed using a bi-fold door, these printers are designed to easily fit in space-constrained environments.
- Print DNA’s innovative applications, utilities and developer tools deliver a superior printing experience through better performance, simplified remote manageability and easier integration.
| Product Specifications | |
|---|---|
| Dimensions (L x W x H) | 19.5 in. L x 13.25 in. W x 12.75 H 495 mm L x 336 mm W x 324 mm H |
| Weight | 40 lbs./18.14 kg |
| Print Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) |
| Memory | 256 MB SDRAM memory 512 MB on-board linear Flash memory |
| Maximum Print Width | 6.6 in./168 mm |
| Maximum Print Speed | 12 ips/305 mm per second |
| Maximum Print Length | • 203 dpi: 102 in./2591 mm • 300 dpi: 45 in./1143 mm |
| Media Width | • 2.00 in./51 mm to 7.0 in./178 mm tear/cutter • 2.00 in./51 mm to 6.75 in./171 mm peel/rewind |
| Media Roll Diameter | 8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core |
| Media Thickness | 0.0023 in./0.058 mm to 0.010 in./0.25 mm |
| Ribbon Length | 1476 ft./450 M |
| Max Ribbon Width | 2.00 in./51 mm to 6.85 in./174 mm |
| Ribbon Inner Core | 1.0 in./25 mm I.D. |
| Operating Temperature | Thermal transfer: 40º F to 104º F/5º C to 40º C Direct thermal: 32º F to 104º F/0º C to 40º C |
