DataLogic Gryphon 4600
The pictures shown are general images for product Gryphon 4600 and may not be applicable to all part numbers

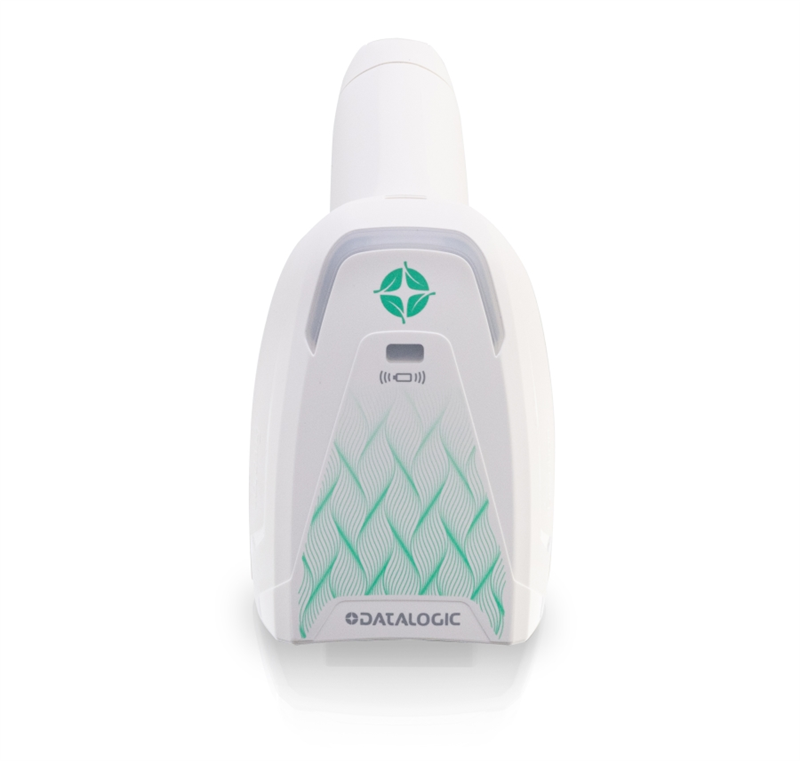

(1)_800_600.png "Alternate image for Gryphon4600_HC_front_down_cordless_low_white")
Gryphon 4600 Barcode Scanner
LCA and Ecodesign To Reduce Carbon Footprint
The Gryphon 4600 scanner series has been designed with an Ecodesign LCAbased approach, focused on reducing environmental impact through optimized energy efficiency, the use of recycled materials, minimized packaging volume and weight, and increased product durability.
AI Barcode Neural Decoding
A powerful combination of a high-speed dual-core processor, AI-driven algorithms, and advanced neural network-based decoding technology delivers a significant boost in scanning performance. It enables faster decoding of both 1D and 2D barcodes, improves the readability of damaged, poorly printed, or distorted codes, and enhances performance when scanning on shiny, reflective, or curved surfaces.
Easy To Use, Intuitive Scanning
The Gryphon 4600 scanner delivers an unbeatable scanning experience thanks to the highly visible green central cross LED aimer for easier targeted scanning. Datalogic’s ‘Green Spot’ technology, exclusive 3GL™ (3 Green Lights) and Vibration provide superior good-read feedback. The dual-color LED illumination technology, featuring warm white and red light user-selectable, allows to adapt to any application need on the fly.
From Near to Far, Fast Reading
The Gryphon 4600 scanner delivers snappy reading performance on all common 1D and 2D codes, including GS1 Digital Link and Digital Watermarking, as well as smaller, high density, high resolution condensed codes and it also excels at reading barcodes from mobile devices. The dual-sensor optics powering the HP models deliver unprecedented capability to read codes from near to far distances, while the improved motion tolerance allows first pass decoding of fast-moving codes.
Wireless Communications and Wireless Charging
The Gryphon 4600 wireless solutions offers both Bluetooth 5.2 classic and low energy (BLE) wireless technology and Datalogic’s STAR Cordless System (433/915 MHz radio frequencies). The recharge capability through an inductive charging system eliminates the need for contact cleaning and maintenance. This reliable wireless charging technology ensures 24/7 operation with no interruptions for maintenance or repair, maximizing productivity and performance.
Battery and Supercap Power Packs, Long Lasting
The Gryphon 4600 wireless scanners can exploit both high-capacity LI-Ion battery pack or SuperCapacitor pack (battery free) providing fast charge and long lasting and for outstanding operating experience.
Features
- Reader and base station plastic parts use over 70% recycled content and are 100% recyclable, reducing environmental impact.
- Dual optics 1.5MP + VGA sensors for superior scanning and Depth of Field
- Dual-core processor, AI (Artificial Intelligence) algorithms, and advanced decoding enhancements enable faster scanning speeds.
- Dual-color LED illumination technology, featuring warm white and red light user-selectable, for adapting to any application need on the fly.
- Highly visible green central cross LED aimer for easier targeted scanning
- Datalogic’s ‘Green Spot’ technology, exclusive 3GL™ (3 Green Lights) and Vibration for superior goodread feedback
- Motionix™ motion-sensing technology for seamless reading mode transitions
- Omnidirectional reading of 1D, 2D, GS1 Digital Link codes and image capture and OCR capabilities
- Choice of Bluetooth 5.2 classic and low energy (BLE) wireless technology or Datalogic’s STAR Cordless System (433/915 MHz radio frequencies)
- Choice of high-capacity LI-Ion battery pack or SuperCapacitor pack for outstanding operating experience
- Wireless charging system to lower the total cost of ownership.
- White color / Healthcare models equipped with disinfectant-ready enclosures treated with anti-microbial additives (ISO22196 compliant) to withstand daily cleaning with harsh disinfectant solutions.
- EASEOFCARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.
| Product Specifications | |
|---|---|
| 1D / Linear Codes | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Codes | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code; GS1 Digital Link |
| Colors Available | Black, White |
| Dimensions | 18 x 6.5 x 7.9 cm / 7.1 x 2.6 x 3.1 in (corded/cordless models) 21 x 7.5 x 10.9 cm / 8.2 x 2.9 x 4.2 in (corded models with presentation mode base) |
| Weight | 144 g / 5.1 oz (corded models) 426 g / 15.0 oz (corded models with presentation mode base) 218 g / 7.7 oz (cordless models, battery included) |
| Imager Sensor | High Performance models (HP, dual sensor): 1.5 Megapixel (1360 x 1120 pixels) + VGA (640 x 600 pixels) High Density models (HD, single sensor): 1.5 Megapixel (1360 x 1120 pixels) |
| Light Source | Aiming: LED Green central cross Illumination: dual color Warm White and Hyper Red LED |
| Motion Tolerance | 70 IPS |
| Print Contrast Ratio (Minimum) | 15% |
| Reading Angle | Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65° |
| Reading Indicators | Beeper (adjustable tone); Good-read feedback: Datalogic ‘Green Spot’ on the Code; Good-read LED; Vibration feedback option (cordless models |
| Resolution (Maximum) | 1D Linear: 0.077 mm / 3 mils; PDF417: 0.077 mm / 3 mils; Data Matrix: 0.102 mm / 4 mils |
| Typical Depth of Field | Label size, printing resolution, contrast, and ambient light dependent. (*) Minimum distance determined by symbol length and scan angle. |
| Interfaces | Cordless Models: WLC4690: USB Type C / USB / RS-232 Multi-Interface Corded Models: GD4620 (HD models): USB type C / USB only GD4690 (HP models): USB type C / USB / RS-232 Multi-Interface |
| 1D / Linear Codes | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Codes | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code; GS1 Digital Link |
| Colors Available | Black, White |
| Dimensions | 18 x 6.5 x 7.9 cm / 7.1 x 2.6 x 3.1 in (corded/cordless models) 21 x 7.5 x 10.9 cm / 8.2 x 2.9 x 4.2 in (corded models with presentation mode base) |
| Weight | 144 g / 5.1 oz (corded models) 426 g / 15.0 oz (corded models with presentation mode base) 218 g / 7.7 oz (cordless models, battery included) |
| Imager Sensor | High Performance models (HP, dual sensor): 1.5 Megapixel (1360 x 1120 pixels) + VGA (640 x 600 pixels) High Density models (HD, single sensor): 1.5 Megapixel (1360 x 1120 pixels) |
| Light Source | Aiming: LED Green central cross Illumination: dual color Warm White and Hyper Red LED |
| Motion Tolerance | 70 IPS |
| Print Contrast Ratio (Minimum) | 15% |
| Reading Angle | Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65° |
| Reading Indicators | Beeper (adjustable tone); Good-read feedback: Datalogic ‘Green Spot’ on the Code; Good-read LED; Vibration feedback option (cordless models |
| Resolution (Maximum) | 1D Linear: 0.077 mm / 3 mils; PDF417: 0.077 mm / 3 mils; Data Matrix: 0.102 mm / 4 mils |
| Typical Depth of Field | Label size, printing resolution, contrast, and ambient light dependent. (*) Minimum distance determined by symbol length and scan angle. |
| Interfaces | Cordless Models: WLC4690: USB Type C / USB / RS-232 Multi-Interface Corded Models: GD4620 (HD models): USB type C / USB only GD4690 (HP models): USB type C / USB / RS-232 Multi-Interface |
| 1D / Linear Codes | Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Codes | Aztec Code; China Han Xin Code; Data Matrix; MaxiCode; Micro QR Code; QR Code; Dot Code; GS1 Digital Link |
| Colors Available | Black, White |
| Dimensions | 18 x 6.5 x 7.9 cm / 7.1 x 2.6 x 3.1 in (corded/cordless models) 21 x 7.5 x 10.9 cm / 8.2 x 2.9 x 4.2 in (corded models with presentation mode base) |
| Weight | 144 g / 5.1 oz (corded models) 426 g / 15.0 oz (corded models with presentation mode base) 218 g / 7.7 oz (cordless models, battery included) |
| Imager Sensor | High Performance models (HP, dual sensor): 1.5 Megapixel (1360 x 1120 pixels) + VGA (640 x 600 pixels) High Density models (HD, single sensor): 1.5 Megapixel (1360 x 1120 pixels) |
| Light Source | Aiming: LED Green central cross Illumination: dual color Warm White and Hyper Red LED |
| Motion Tolerance | 70 IPS |
| Print Contrast Ratio (Minimum) | 15% |
| Reading Angle | Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65° |
| Reading Indicators | Beeper (adjustable tone); Good-read feedback: Datalogic ‘Green Spot’ on the Code; Good-read LED; Vibration feedback option (cordless models |
| Resolution (Maximum) | 1D Linear: 0.077 mm / 3 mils; PDF417: 0.077 mm / 3 mils; Data Matrix: 0.102 mm / 4 mils |
| Typical Depth of Field | Label size, printing resolution, contrast, and ambient light dependent. (*) Minimum distance determined by symbol length and scan angle. |
| Interfaces | Cordless Models: WLC4690: USB Type C / USB / RS-232 Multi-Interface Corded Models: GD4620 (HD models): USB type C / USB only GD4690 (HP models): USB type C / USB / RS-232 Multi-Interface |
