DataLogic Gryphon Desk

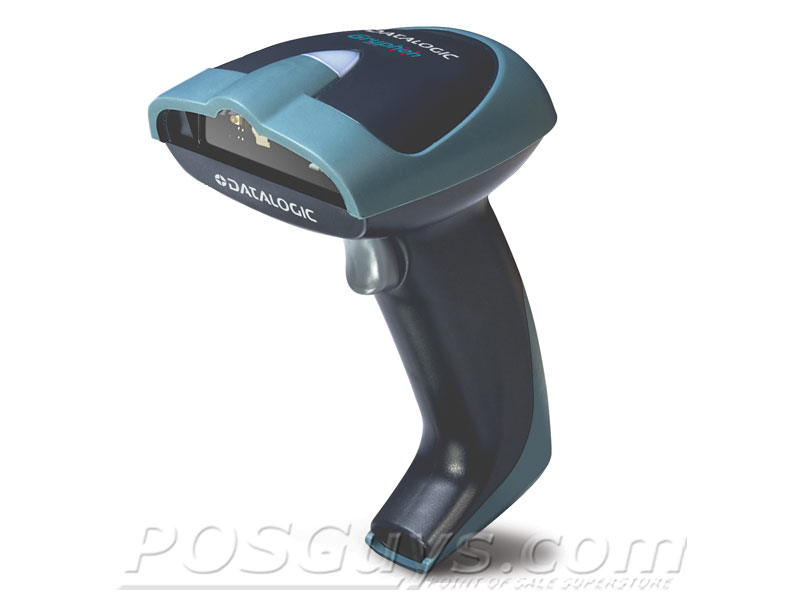

Gryphon Desk Barcode Scanner

The DataLogic Gryphon Desk has reached end of life.

The Datalogic Gryphon Desk 2D Plus barcode scanner is a great choice for retailers, shipping departments, or any business scanning a high volume of both 1D and 2D barcodes. The 8.6" optimal scan range makes scanning barcodes a snap and with minimal readjustment. For added accuracy, the Gryphon features a 5-dot aiming system and Datalogic's patented Green Spot for good-read feedback.

To ensure longevity of the Gryphon, Datalogic reinforced the body to withstand multiple drops of 5.9 feet to concrete. An IP50 seal protects the Gryphon from dust, making it a good fit even in rough retail or warehouse environments. With a 5-year warranty, you can be sure the Datalogic Gryphon Desk 2D Plus barcode scanner will give your business many years of excellent service.

Features

Withstands up to 100,000 lux of ambient light

Supports image capture for signature capture or wide document scanning

IP50 Seal protects against windblown dust

Datalogic Aladdin program allows for quick configuration of scanners

Product Specifications
Dimensions	17.9 x 8.1 x 9.8 cm / 7.0 x 3.2 x 3.9 in
Weight	198.0 g / 7.0 oz

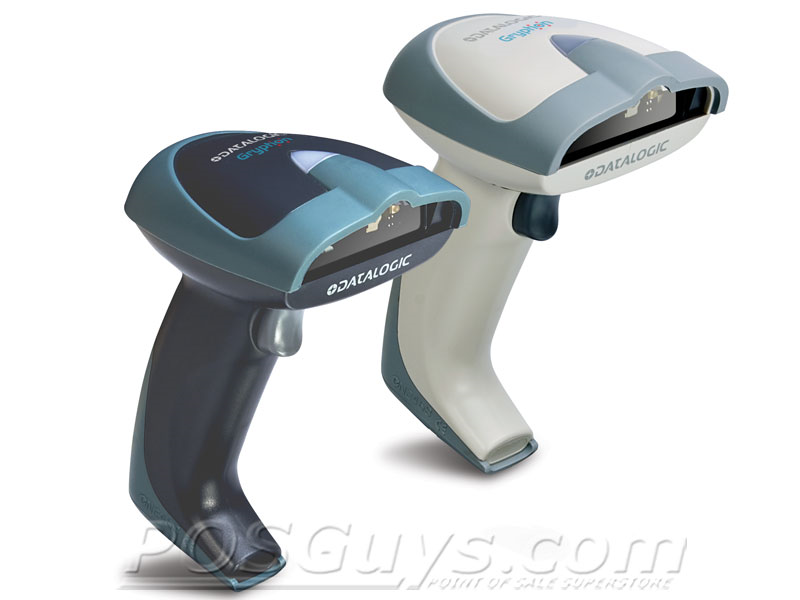

Color Options	Dark Grey White
Interfaces Available	IBM 46xx Keyboard Wedge RS-232 USB Wand
Scan Method	Area Imager
Decoding Capabilities	All Standard 1D/Linear Codes; 2D: Aztec Code, Data Matrix, MaxiCode, QR Code; Standard Postal Codes (See Brochure); Stacked Barcodes including PDF417, MicroPDF417, & GS1 DataBar (See Brochure for full listi)
Mobility/Range	Corded
Motion Tolerance	Advanced ‘motion tolerance’ optics
Reading Angle	Pitch: +/- 35° Roll (Tilt): 360° Skew (Yaw): +/- 40°
Print Contrast (Min.)	23%
Typical Depth of Field	Minimum distance determined by symbol length and scan angle, Printing resolution, contrast, and ambient light dependent: 10 mil Data Matrix: 1.5 to 14.0 cm / 0.6 to 5.5 in; 10 mil PDF: 0.5 to 22.0 cm / 0.2 to 8.6 in; EAN13 - 13 mils: 1.5 to 22.0 cm / 0.6 to 8.6 in
Indicators	Beeper (Adjustable Tone) Datalogic ‘Green Spot’ Good Read Feedback Good Read LED
Auto Sense Mode	Yes, In Stand
Image Capture	Yes
Mobile Phone Scanning Capabilites	No
Drivers License Data Parsing	901711014 Yes, D432 2D Plus Model
Ambient Light (Max)	0 - 100,000 lux
Operating Temperature	0 to 50 °C / 32 to 122 °F
Drop Specification	Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
Environmental Sealing	IP50
Stand	Yes, Optional
Warranty	5-Year Factory Warranty
