DataLogic Gryphon GD4500
The pictures shown are general images for product Gryphon GD4500 and may not be applicable to all part numbers

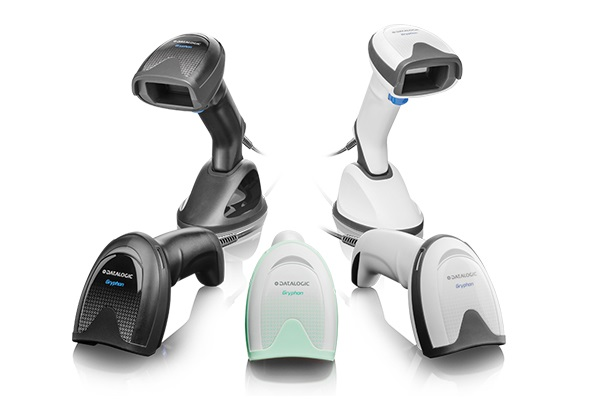

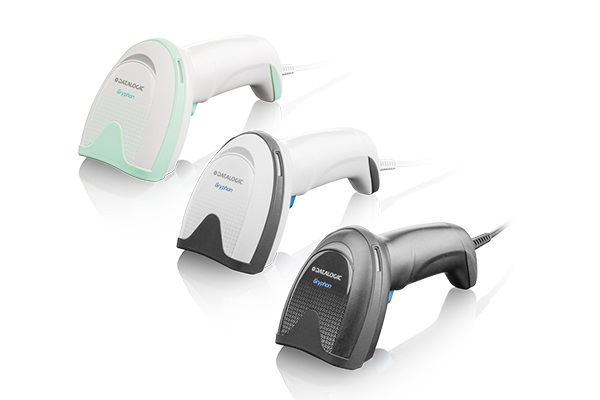

Black; White; Healthcare White/Green
Gryphon GD4500 Barcode Scanner
This product replaces the older DataLogic Gryphon I GD4400-B.
Combining the best aspects of previous versions of the Gryphon family, Datalogic brings to us the new GD4500 Imager!
Mixing ergonomics, advanced imaging technology, and rapid-fire speed the Gryphon 4500 lessens your workload to a startling degree while not robbing your bankroll blind. The scanner is equiped with Datalogic's "Motionix" technology which helps the scanner switch modes depending on the user's scanning style. A collection of accessories work along with the scanner to enable hands-free scanning, or at least docking for easy access. This scanner will take 1D, 2D, even battered or watermarked (Digimarc) barcodes and read them with ease, even at high speeds.
Able to scan documents and capture images, the GD4500 is a valuable warehouse tool as well as a retail powerhouse. Available in either a USB-only version or Multi-interface, the scanner is ready to fit into almost any system and perform like a champ. There is even a Healthcare-specific model with antimicrobial housing for us in labs, medical facilities, and the like. Unlike other models, this scanner also has the option to be purchased in an "All-in-one" version, permanently affixed to a tilting stand, a true handsfree option.
Features
• 1D/2D Scanning with Multi-Interface Options (USB, KBW, RS-232)
• Omnidirectional Reading
• Image Capture and Document Scanning
• Healthcare Option with Antimicrobial Housing
Product Specifications | |
---|---|
Dimensions | 16.6 x 6.8 x 10.9 cm / 6.5 x 2.7 x 4.3 in |
Weight | 161.0 g / 5.7 oz |
Color Options | Black; White; Healthcare White/Green |
Interfaces Available | RS-232 / USB / Keyboard Wedge MultiInterface |
Scan Method | Aiming: Red Laser 650 nm Illumination: Warm White; Hyper Red LED for Digimarc |
Decoding Capabilities | 1D, 2D, Postal Codes, Stacked Codes, Digimarc |
Mobility Range | Corded |
Motion Tolerance | 35 IPS |
Reading Angle | Pitch: +/- 65°; Roll (Tilt): 360°; Skew (Yaw): +/- 65° |
Print Contrast (Min.) | 15% |
Typical Depth of Field | Minimum distance determined by symbol length and scan angle. Printing resolution, contrast, and ambient light dependent. |
Indicators | Beeper (Adjustable Tone); Datalogic Three Green Lights (3GL) Good Read Feedback: Datalogic ‘Green Spot’ on the Code, Dual Good Read LEDs |
Auto Sense Mode | Yes, In Stand |
Image Capture | Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
Drivers License Data Parsing | Yes- Optional Model |
Mobile Phone Scanning Capabilites | Yes |
Healthcare Specific Model | Yes |
Operating Temperature | 0 to 50 °C / 32 to 122 °F |
Drop Specification | Withstands repeated drops from 1.8 m / 6.0 ft onto a concrete surface. |
IP Seal Rating | IP52 |
Ambient Light (Max) | 0 - 100,000 lux |

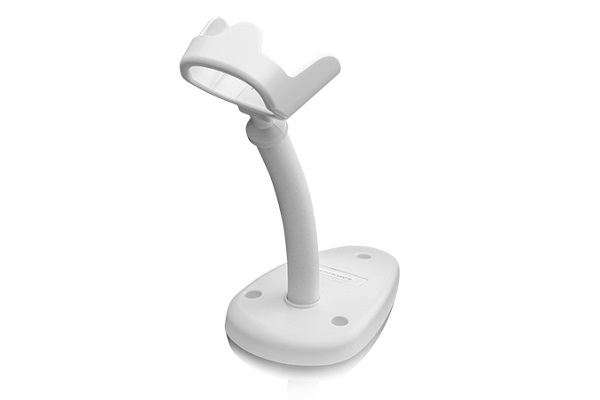

Stand | Optional Accessory of Kit Addition |
Warranty | 5-Year Factory Warranty |
Downloads |
---|
Gryphon 4500 Product Reference Guide (Manual) |
Gryphon 4500 Quick Start Guide |
Gryphon 4500 Spec Sheet |
Ruby Verifone Setup |
