DataLogic Gryphon Series
The pictures shown are general images for product Gryphon Series and may not be applicable to all part numbers




Black, White

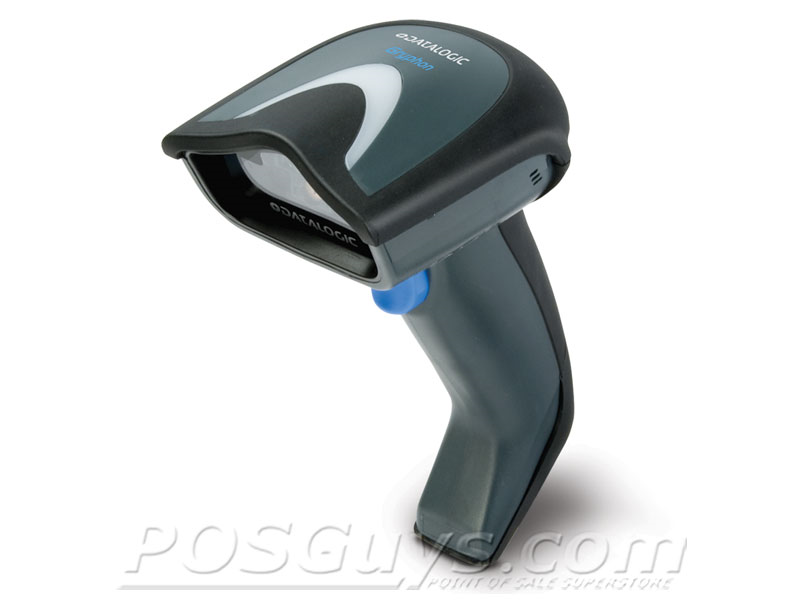

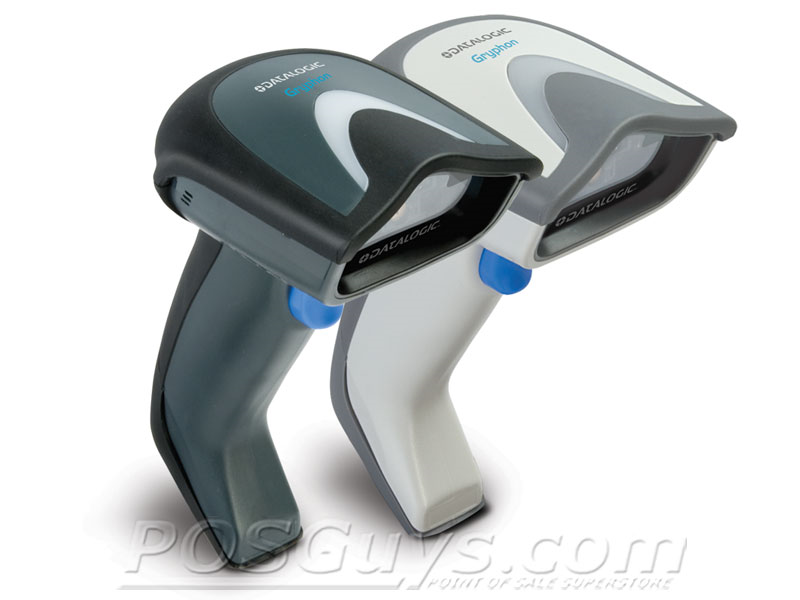

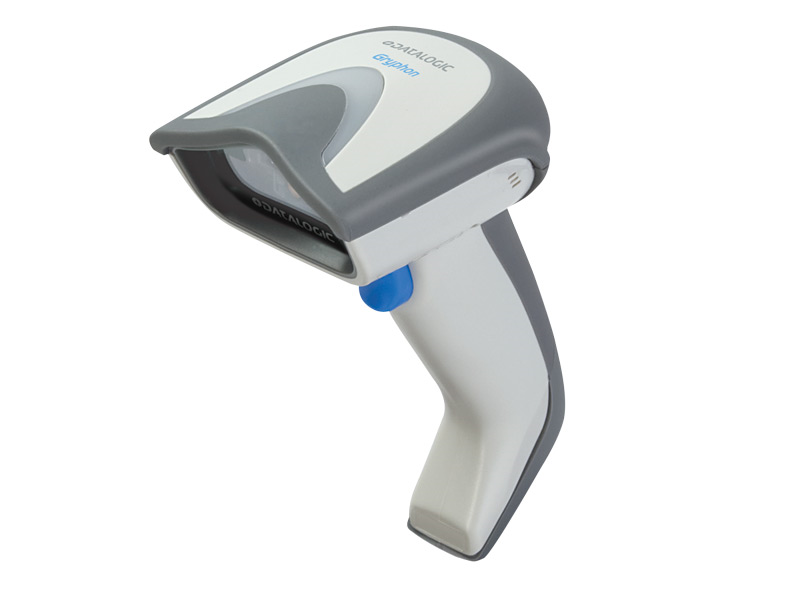

Gryphon Series Barcode Scanner
The DataLogic Gryphon Series has reached end of life. It has been replaced by the DataLogic Gryphon 4200 Series.
This product replaces the older DataLogic Gryphon L GD4300.
The Updated Datalogic Gryphon GD4132 barcode scanner series gives any high volume retail environment a fast and aggressive handheld solution. Datalogic's green dot technology allows you to see which barcode was just scanned, increasing efficiency and minimizing scanning errors. With a scan range of 23" for standard UPC barcodes and up to 4 feet for larger barcodes, the Gryphon can read standard retail barcodes quickly and with no hassles at all. For enhanced durability, the barcode scanner features an IP52 seal to keep dust and water out, as well as a 5.9-foot drop resistance, making the Datalogic Gryphon the smart choice for rough retail or light industrial environments.
Features
Product Specifications | |
---|---|
Dimensions | 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in |
Weight | 169.0 g / 6.0 oz |
Color Options | Black White |
Interfaces Available | RS-232 USB Keyboard Wedge Wand Multi-Interface IBM 46XX |
Scan Method | Linear Imager |
Decoding Capabilities | Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes; GS1 DataBar Expanded Stacked, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional |
Scan Rate (Maximum) | 325 reads/sec |
Reading Angle | Pitch: 65° Roll (Tilt): 35° Skew (Yaw): 65° |
Print Contrast (Min.) | 15% |
Typical Depth of Field | 5 mils: 6.0 to 18.0 cm / 2.3 to 7.0 in 7.5 mils: 3.5 to 30.0 cm / 1.4 to 11.7 in 10 mils: 2.0 to 45.0 cm / 0.8 to 17.7 in 13 mils: 3.0 to 60.0 cm / 1.2 to 23.4 in 20 mils: 3.0 to 80.0 cm / 1.2 to 31.2 in |
Indicators | Beeper (Adjustable Tone and Volume) Datalogic Green Spot Good Read Feedback Good Read LED |
Mobility/Range | GBT4130-BK-BTK1 Corded, See Gyphon I GBT4100 for cordless version |
Auto Sense Mode | Yes, In Stand |
Operating Temperature | 0 to 55 °C / 32 to 131 °F |
Drop Specification | Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface |
Environmental Sealing | IP52 |
Ambient Light (Max) | 0-100,000 lux |
Stand | Yes, Optional |
Warranty | 5-Year Factory Warranty |
DataLogic Gryphon Series Reviews
If you're into ergonomics, the Gyphon is a trendy choice. It presents a new take on the traditional barcode reader, emitting a "good read" green indicator light right on the barcode where the eye is naturally looking instead of having to look at the unit to verify read success.
