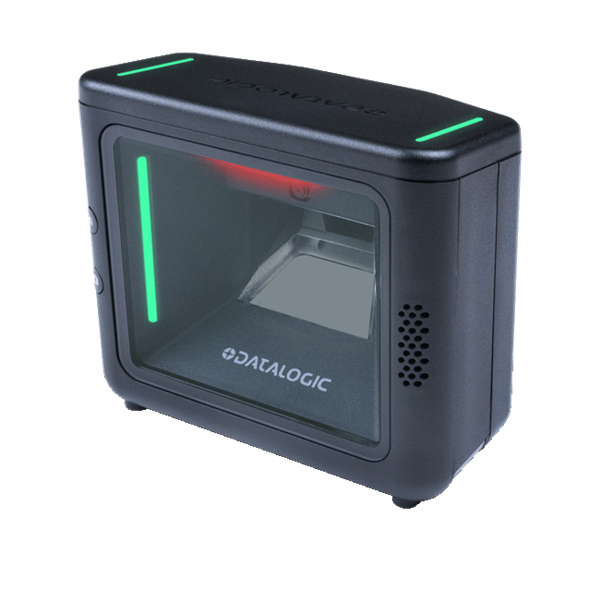

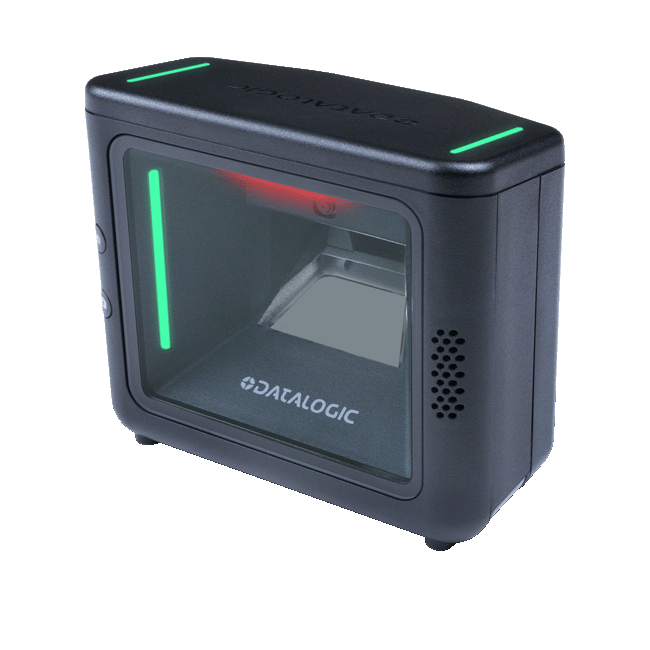

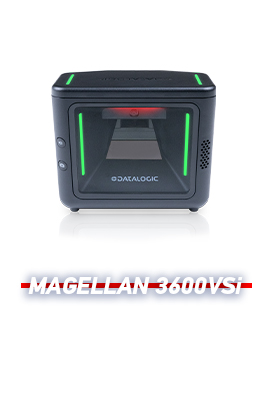

MAGELLAN™ 3600VSi
Speed checkout with high-performance 1D, 2D, mobile, damaged-label, and hard-to-read barcode scanning. The 3600VSi supports GS1 Digital Link, Digimarc, composite codes, OCR, UHF RFID, and low-power operation in a compact vertical form factor.
Support loss-prevention workflows with UHF RFID and EAS integration, plus color image capture for external AI applications. Scanner loyalty card capture, OCR, and image capture help protect transactions while keeping checkout moving.
Connect the 3600VSi across Windows, Linux, Android, and iOS environments using OPOS, JavaPOS, or the Android SDK. Configure devices with Aladdin and support remote updates through SW Upgrade and DL RMM.
Retail: Convenience, Grocery, Discount, Specialty, Hardware, Fashion, Pharmacy, Hospitality
Applications: Attended POS, Self-Checkout POS, Kiosks, Ticketing, Access Control, Price Verification, Loss Prevention, ID Verification, Age Verification, Security Monitoring, Ticket Switching, EAS Deactivation, RFID Tracking, Sorting, Quality Assurance
| Product Specifications | |
|---|---|

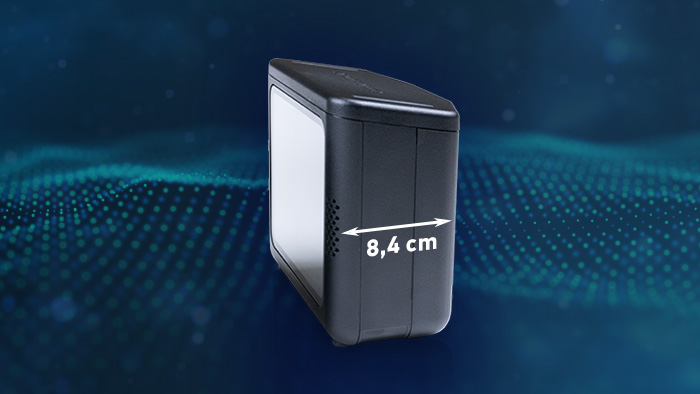

| Dimensions | 13.7 x 15.2 x 8.4 cm / 5.4 x 6.0 x 3.3 in |
| Weight | 0.60 kg / 1.3 lb |
| Power Requirements | AC Input: 100-240 VAC, 50-60 Hz DC Input: 5-12 V USB-C Power Delivery (3650/3670): 9 or 12 V |

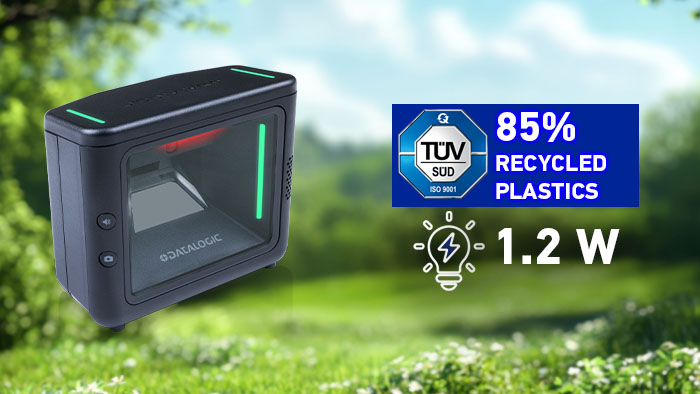

| Power Consumption | All models, no auxiliary HandHeld device attached: Operating (Maximum): 3 Watts; Operating (Nominal): 1.2 Watts; Sleep Mode: 1.0 Watts M3x50 and M3x70 with Auxiliary HandHeld device attached, 12V power source: Operating (Maximum): 6 Watts; Operating (Nominal): 1.8 Watts; Sleep Mode: 1.5 Watts |
| Interfaces | OEM (IBM) USB; RS-232; USB Keyboard; USB Com |
| Auxiliary Ports (3650/3670) | Powered Type A USB (USB Com) Requires 12V Power Supply, 12V OEM-USB, or 9-12V USB-C Power Delivery |
| 1D / Linear Codes | Autodiscriminates all standard 1D codes including GS1 DataBar™ linear codes. |
| 2D Codes | Aztec Code; Data Matrix (ECC200 only); QR Code |
| Stacked Codes | GS1 Digital Link, GS1 DataBar Composites; GS1 DataBar Expanded Stacked; GS1 DataBar Stacked; GS1 DataBar Stacked Omnidirectional; MicroPDF417; PDF417 |
| Digital Watermarks | Digimarc® Barcodes/GS1 DW Code |
| Typical Depth of Field | Printing resolution, symbol length, scan angle, contrast and ambient light dependent. Distances measured from the product window. 1D Codes 5 mils Code39: 1 to 13 cm / 0.5 to 5.0 in 7.5 mils Code39: 0 to 18 cm / 0 to 7.0 in 10 mils EAN: 0 to 19 cm / 0 to 7.5 in 13 mils EAN: 0 to 22 cm / 0 to 8.7 in 20 mils Code39: 0 to 26 cm / 0 to 10.0 in 2D Codes 6.6 mils PDF: 1 to 12 cm / 0.5 to 4.7 in 10 mils PDF: 0 to 18 cm / 0 to 7.0 in 10 mils DM: 1 to 9 cm / 0.5 to 3.5 in 15 mils DM/QR: 0 to 16 cm / 0 to 6.3 in 20 mils DM/QR: 0 to 18 cm / 0 to 7.0 in |
| Image Capture | Graphic Formats: BMP, JPEG, TIFF, RAW Color (3650/3670) and Grayscale |
| Image Sensor | 1360 x 1120 pixels, Global Shutter |
| Print Contrast Ratio (Minimum) | 25% |
| Resolution (Maximum) | 1D Codes: 3 mil 2D Codes: 6 mil |
| Reading Angle | Pitch: +/- 65°; Roll (Tilt): 0 - 360°; Skew (Yaw): +/- 65° |
| Reading Indicators | Audio speaker with adjustable tone and volume; Good Read LED; Good Transmission |
| Ambient Light | 0 to 86,100 lux |
| ESD Protection (Air Discharge) | 25 kV |
| Humidity (Non-Condensing) | 5 - 95% |
| Particulate and Water Sealing | IP52 |
| Temperature | Operating: 0 to 40 °C / 50 to 104 °F Storage/Transport: -40 to 70 °C / -40 to 158 °F |
| RFID (AVAILABLE FOR 3650/3670) | Standard: EPC UHF Class 1 Gen 2 (ISO 18000-6C) Frequency: US: 902 MHz to 928 MHz; EU: 865 MHz to 868 MHz Modulation: ASK (Amplitude Shift Keying) Power: Max 9dBm (configurable) Reading Range: Up to 20 cm / 7.9 inch (linear) |
| COLOR VIDEO CAMERA (3670) | Resolution: 1280 x 800 pixels, Global Shutter Framerate: 40 frames per second Field of View: 74°H x 50°V Connectivity: USB Type B Port (USB 2.0), USB Video Class (UVC) Protocol |
| Warranty | 3-Year Factory Warranty |
