DataLogic QuickScan QBT2500

The pictures shown are general images for product QuickScan QBT2500 and may not be applicable to all part numbers

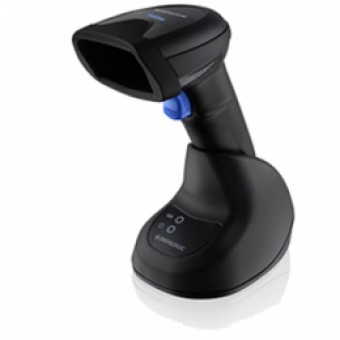

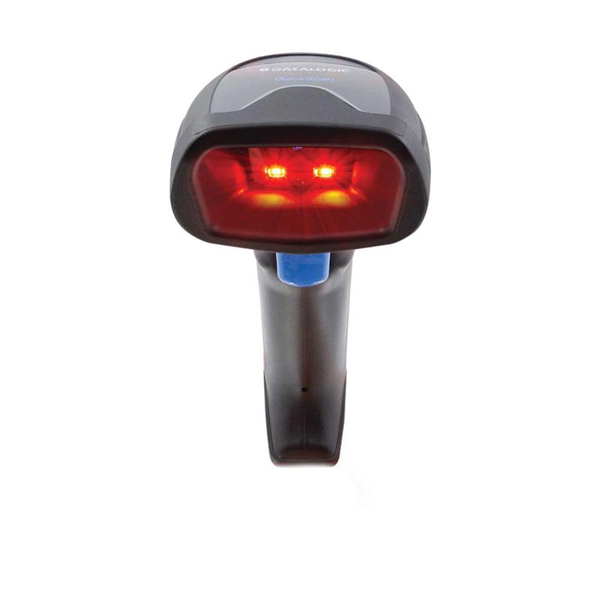

QuickScan QBT2500 Barcode Scanner
This product replaces the older DataLogic QuickScan I QBT2400.
The QuickScan QBT2500 imager from Datalogic is an entry-level 2D Bluetooth handheld scanner that features powerful wireless scanning at an affordable price. Built for the retail environment, it effortlessly reads a full range of barcodes, be they damaged, hard to read, or poorly printed. In addition, the Quickscan QBT2500 imager is optimized to read through plexiglass barriers seamlessly. The QBT2500 also features USB-C connectivity for future-proofed scanning.
Product Specifications | |
---|---|
Interface Options | BC2090: USB Type C / USB / RS-232 / Keyboard Wedge Multi-Interface |
Dimensions (H x L x W) | 15.9 x 6.8 x 10.7 cm / 6.2 x 2.7 x 4.2 in |
Weight | 206.5 g / 7.3 oz (battery included) |
Resolution (Max) | 1D Linear: 0.077 mm / 3 mils; PDF417: 0.077 mm / 3 mils; Data Matrix: 0.127 mm / 5 mils; QR Code: 0.17 mm / 6.7 mils |
Image Capture | Graphic Formats: BMP, JPEG, TIFF; Greyscale: 256, 16, 2 |
Image Sensor | 1 Megapixel (1280 x 800 pixels) |
Decode Ranges | Code 39: 5 mils: 0.5 to 25.0 cm / 0.2 to 9.8 in Code 39: 10 mils: 0.5 to 38.0 cm / 0.2 to 14.9 in Data Matrix: 10 mils: 0.5 to 21.5 cm / 0.2 to 8.5 in EAN/UPCA: 13 mils: 0.5 to 51.0 cm / 0.2 to 20.1in PDF417: 6.7 mils: 0.5 to 21.0 cm / 0.2 to 8.3 in QR Code: 20 mils: 0 to 37.0 cm / 0 to 14.6 in |
Bluetooth Radio Range | : Bluetooth 4.0 Certified Class 1; Radio Frequency: 2.4 GHz; Radio Range (Open Air): 50.0 m / 164 ft; Range distances are measured using the base station. Range with connection to other Bluetooth peripherals may show different results. |
Battery | Battery Type: Lithium-Ion: 3250 mAh Charge Time (Scanner only): Type-C External Power: 3 Hours; Charge Time (via Cradle): External Power: 4 Hours @ 12 VDC; |
Reads Per Charge | Reads per Charge: 115,000 |
Environmental seal | IP52 |
Drop Resistance | Withstands repeated drops from 1.5 m / 5.0 ft onto a concrete surface. |
Trigger Resistence | Withstands 10 Million Hits |
Downloads |
---|
Quickscan 2500 Spec Sheet |
