DataLogic QuickScan QD2220 Imager

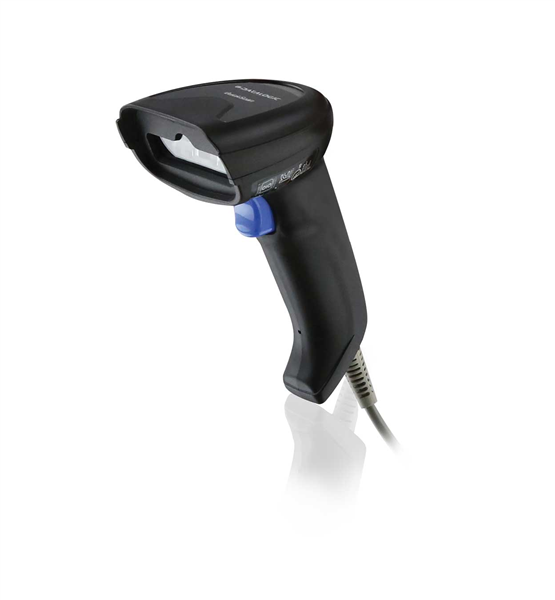

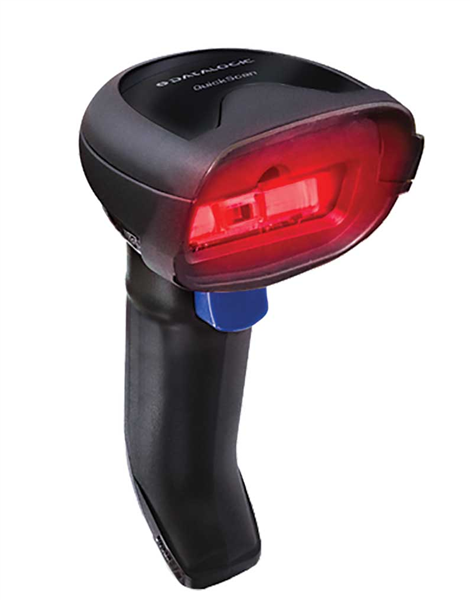

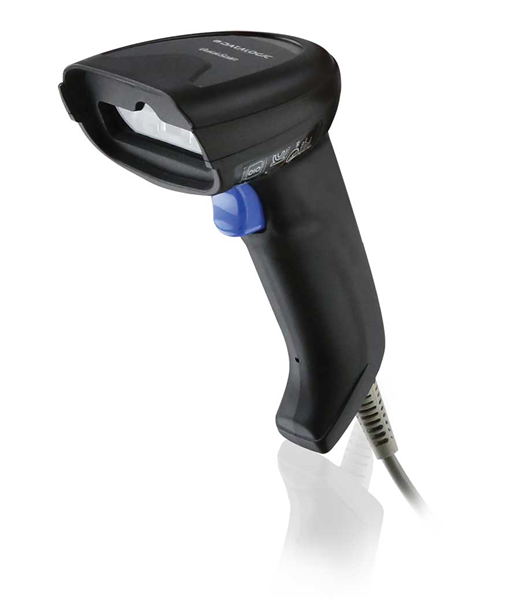

QuickScan QD2220 Imager Product Image

The pictures shown are general images for product QuickScan QD2220 Imager and may not be applicable to all part numbers

QuickScan QD2220 Imager Barcode Scanner


This product replaces the older DataLogic QuickScan QD2131 Imager.

Entry-level handheld imagers for corded applications using 1D barcodes


Tailored Linear Imaging Technology

Today there is an increased trend towards 2D bar codes, however, linear bar codes are still widespread in Retail POS checkout applications. Long bar codes are also commonly used in a variety of applications including utility bills, document processing and packaging. These long barcodes are a challenge for full area imagers to read due to their narrow field-of-view and shorter depth-of-field.

The Most Prompt Response at the POS Check-Out

The QuickScan QD2200 imager is the 1D entry-level corded imager from Datalogic with a superior scanning performance in its category. It reliably reads any type of 1D barcode from up close to a distance with ease in capturing long bar codes. Unlike other devices on the market, this imager provides full control to the operator, from the linear aiming to the most prompt visual and audible good-read feedback. It seamlessly reads through plexiglass barriers and can scan electronic coupons from smartphone screens at an incredibly affordable price.

Comfort and Reliability

Lightweight and easy to handle, the QuickScan QD2200 is very responsive at the pull of the trigger, providing a superior robustness for this class of products where the device is mostly stressed, because of the accurate design and quality of parts. Offering simple configuration and ease of use, this robust entry-level scanner delivers continuous operation capabilities with no failures. Finally, the QuickScan QD2200 imager will prove to be the best long-term choice, by cutting down-time, no read/misread management time, and service costs.


FEATURES
  • Light weight and balanced design
  • Extra-wide scan angle and extra-long scan line
  • Extended reading range and depth-of-field (DOF)
  • Sharp and highly visible scan line
  • Datalogic’s distinctive Green Spot technology for superior good-read feedback
  • USB interface, includes the latest USB-C
  • Aladdin™ 3.0 configurator provides the latest GUI, search engines, and an on-line version that offers the ability to generate programming barcodes to scan directly on a smartphone
  • EASE OF CARE Service Plans offer a wide range of service options to protect your investment, ensuring maximum productivity and ROI.
Product Specifications
1D / Linear Codes Auto discriminates all standard 1D codes including GS1 DataBar™ linear codes.
Interfaces USB; Cable to USB-C connector is available
Colors Available Black
Dimensions 15.6 x 6.7 x 10.7 cm / 6.1 x 2.6 x 4.2 in
Weight 123.0 g / 4.3 oz
Imager Sensor CCD Solid-State
Field Of View 56° +/- 2°
Light Source Illumination: Red LED 617nm
Read Rate (Maximum) 1,000,000 pixels/sec (400 reads/sec)
Motion Tolerance 40 IPS
Print Contrast Ratio (Minimum) 15%
Reading Angle Pitch: +/- 65°; Roll (Tilt): +/- 45°; Skew (Yaw): +/- 65°
Reading Indicators Beeper (Adjustable Tone); Datalogic ‘Green Spot’ Good-read Feedback on the Code; Good-read LED
Resolution (Maximum) 0.077 mm / 3 mils
Typical Depth of Field
  • Code 39: 4 mils: 2.5 to 22.0 cm / 1.0 to 8.7 in
  • Code 39: 5 mils: 2.0 to 30.0 cm / 0.8 to 12.0 in
  • Code 39: 7.5 mils: 1.0 to 45.0 cm / 0.4 to 17.7 in
  • Code 39: 10 mils: 1.0 to 60.0 cm / 0.4 to 23.6 in
  • Code 39: 20 mils: 3.0 to 103.0 cm / 1.2 to 40.6 in
  • EAN/UPCA: 13 mils: 1.0 to 68.0 cm / 0.4 to 26.8 in
  • DataLogic QuickScan QD2220 Imager Reviews

    POSGuys Rating: Not Rated

    Customer Reviews

    Recommended Models

    QuickScan QD2220 1D USB KIT BLK
    QuickScan QD2220 1D USB KIT STAND BLK
    QuickScan QD2220 1D BLACK 5V (QD2220-BK)

    Accessories

    Datalogic Ease of Care 5-Year Comprehensive Warranty for QD22XX Scanner. Covers Normal Wear & Tear and Accidental Breakage Coverage. 2-Business-Day Turnaround For Replacement Unit (Excluding Transit). Both Ways Freight Paid By Datalogic.
    Cable Datalogic - RIDA AC Adapter, 120 V AC Input, US/Japan.

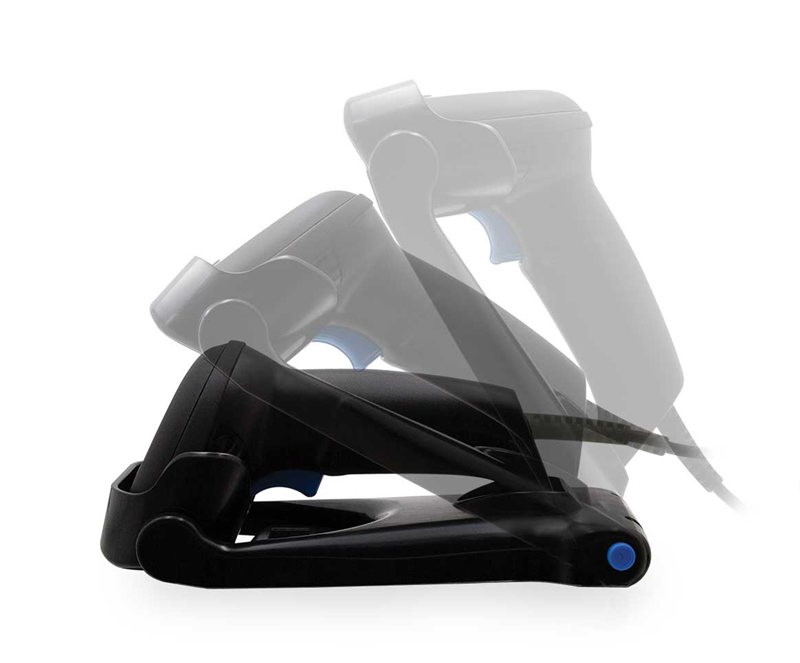

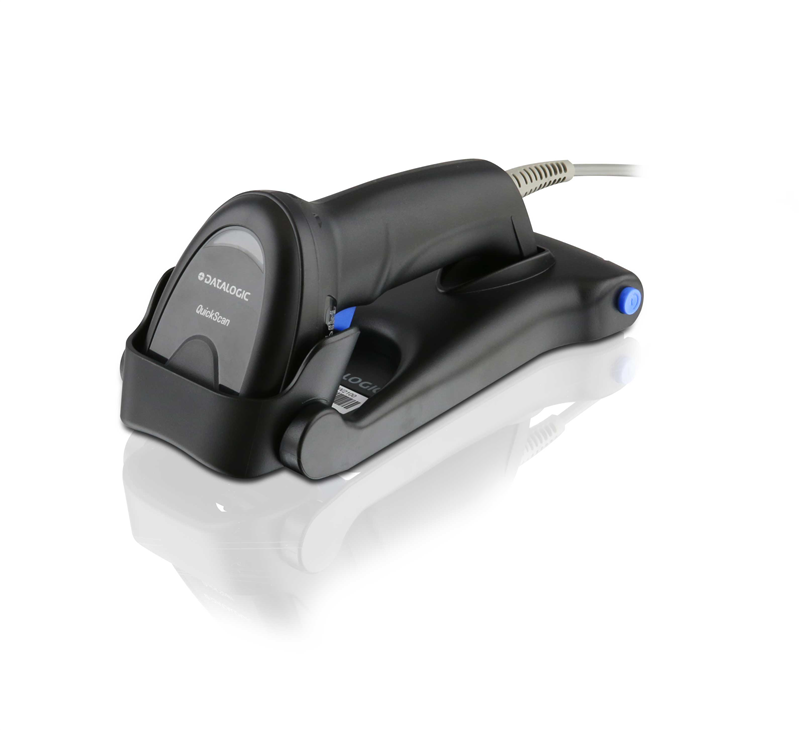

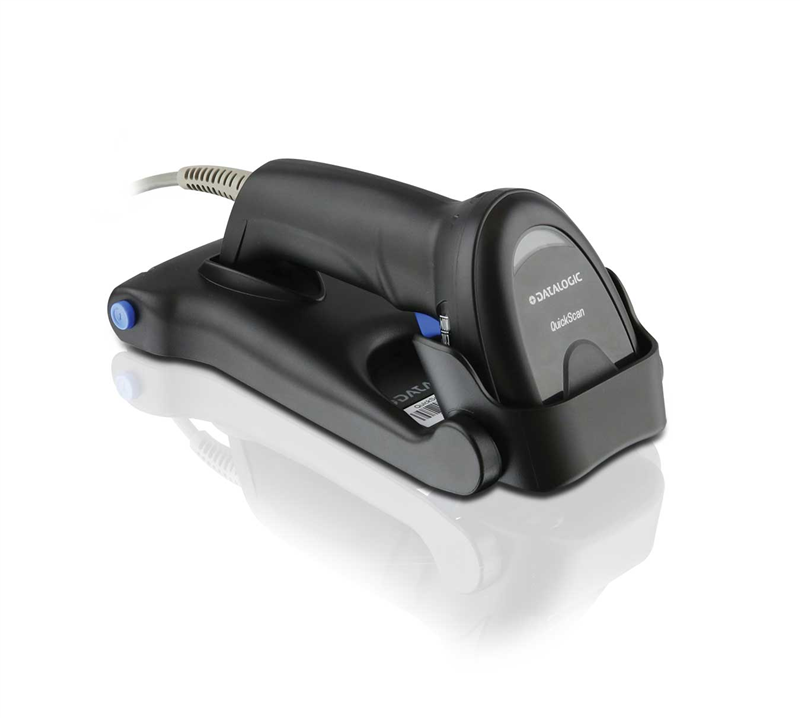

    Datalogic QuickScan Stand, Autosense. Collapsible. Black
    Datalogic QD2xxx Stand, Autosense Flex, Black
    Datalogic Barcode Scanner Holder, Multi-Purpose, Black
    Datalogic Desk/Wall Mount Holder, QD2xxx Series, Black
    Datalogic Scanner Cable, USB, Type A,TPUW, Coiled, 2.4m, Black
    Cable, USB, Type A, Enhanced, Straight, Power Off Terminal, 2M (USB Certified)
    Adapter USB type A to USB type C (for use with most of Datalogic USB type A cables) (1 pc)
    Base Station Line Cord
