Honeywell FocusBT

The pictures shown are general images for product FocusBT and may not be applicable to all part numbers

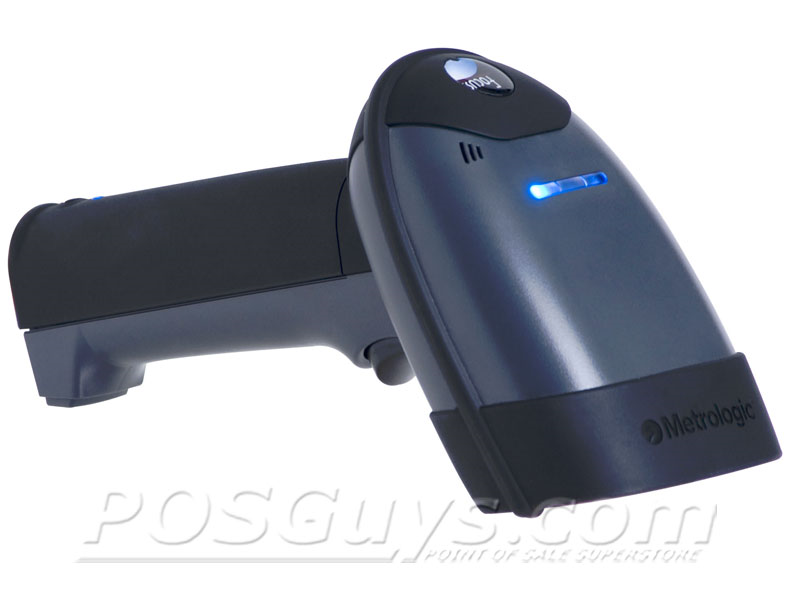

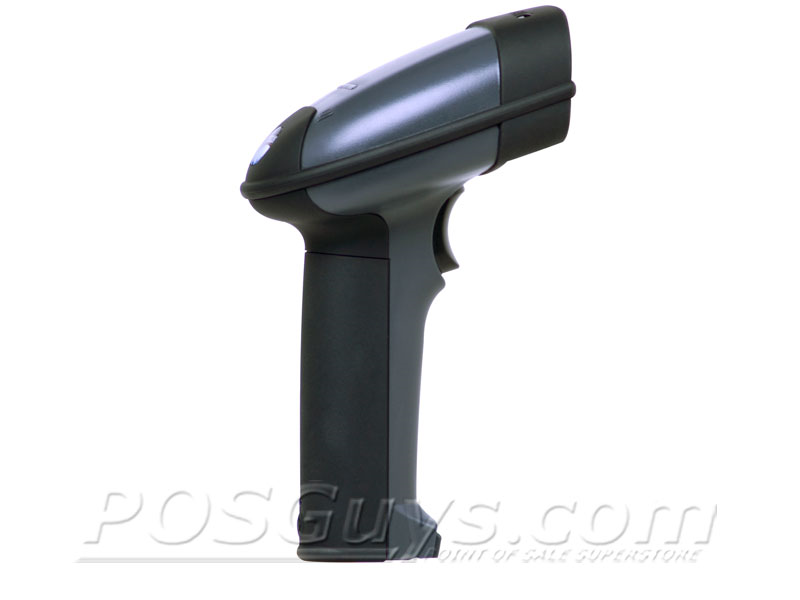

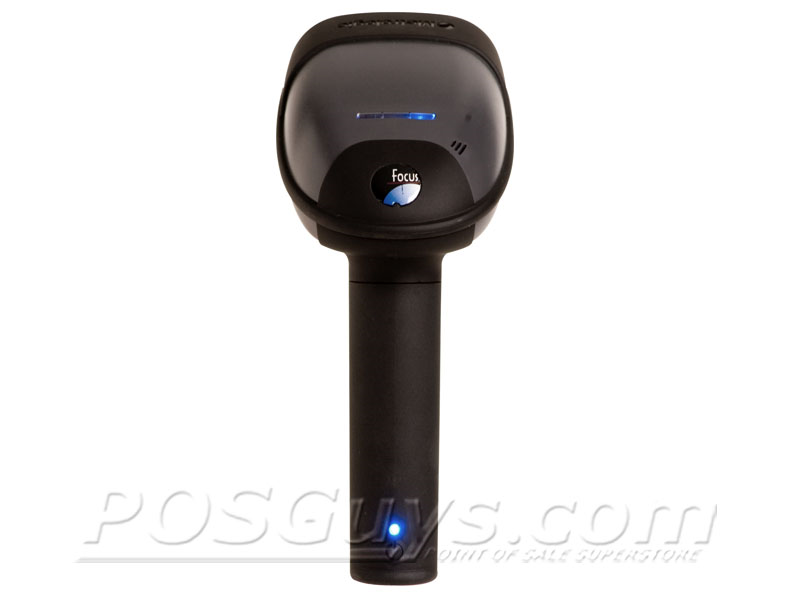

FocusBT Barcode Scanner

The Honeywell FocusBT has reached end of life.

The MS1633 FocusBT barcode scanner combines Metrologic's patented CodeGate™, RangeGate™, and FirstFlash™ technologies into a single BlueTooth hand held scanner to offer truly flexible, highly reliable reading of all 1D and 2D barcode symbologies.

FirstFlash ensures that virtually every barcode is decoded on the first LED flash, while CodeGate allows the user to target a specific barcode and capture it with the push of a button. RangeGate enables the FocusBT barcode scanner to capture and store data even when the host communication system is out of range, automatically downloading the data to the host when communication is re-established.

    MS1633 FocusBT Features:
  • 1D & 2D Omni-directional Scanning
  • High Resolution Image Capture
  • Multiple Power Save Modes
  • USB BlueTooth Adapter
  • Dual Rechargable Li-Ion Batteries
  • 12hrs of Scan Time Per Charge
  • 32°F-104°F Operating Temp.
  • Programmable Depth of Field
  • Stand Included

The Honeywell FocusBT has reached end of life. We recommend the Honeywell Xenon 1902 as a suitable replacement.
Product Specifications
Dimensions Scanner: 7.2 x 3.1 x 4.9 in
Charger: 3.5 x 2.5 x 1.2in
Weight Scanner: 10.2 oz
Charger: 3 oz
Color Options Black
Interfaces Available USB
Keyboard Wedge
IBM 46xx (RS485)
Scan Method Area Imager (1280 x 512 pixel array)
Mobility/Range BlueTooth 2.4 to 2.5 GHz (ISM Band)/ 33 ft line of site
Battery 2300 mAh Li-ion
Operating Time up to 4800 scans per charge (approx. 8 hours)
Recharge Time 6 Hours
Decoding Capabilities All Standard Barcodes including 1D, 2D, PDF417, microPDF, and Postal Codes
Motion Tolerance 47 cm/s (18 in/s) with 13 mil UPC at optimal focus
Reading Angle Ptich: 75°, Skew: 75°
Print Contrast (Min.) 20% minimum reflectance difference
Typical Depth of Field 5.2 mil (1D) 51 mm - 108 mm (2.0 - 4.3")
7.5 mil (1D) 32 mm - 184 mm (1.3 - 7.3")
13 mil (1D) 0 mm - 330 mm (0 - 13.0")
10 mil (PDF) 0 mm - 330 mm (0 - 13.0")
15 mil (PDF) 0 mm - 432 mm (0 - 17.0")
Indicators LED (Blue Steady=unit powered, ready to scan, Bluetooth connected; White=good read; Yellow Steady=in stand)
Adjustable Beep (7 Tones or No Beep)
Auto Sense Mode Yes, In Stand
Image Capture Yes
Drivers License Data Parsing No
Mobile Phone Scanning Capabilites No
Healthcare Specific Model No
Ambient Light (Max) 100,000 Lux
Operating Temperature 0°C to 40°C (32°F to 104°F)
Drop Specification Designed to withstand 1.5 m (5´) drops
Environmental Sealing Sealed to resist airborne particulate contaminants

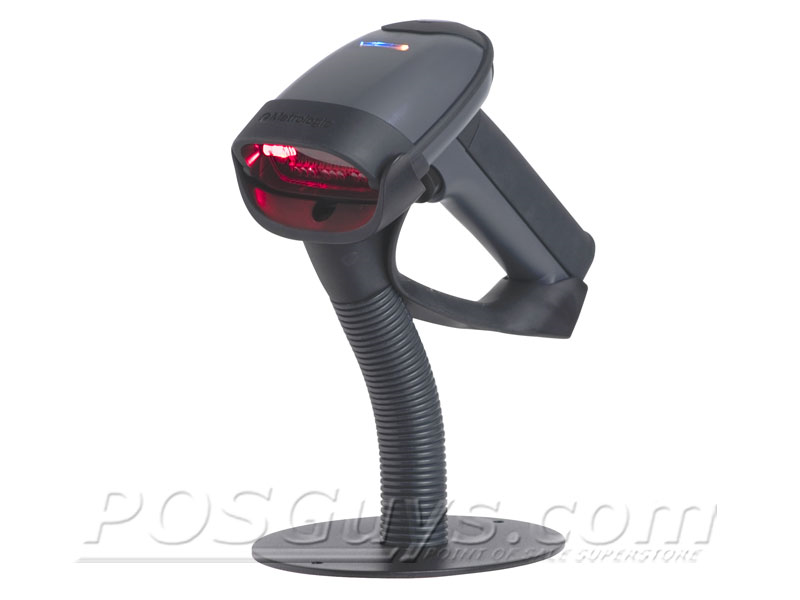

Stand Yes, Included
Warranty 2 year factory warranty (Note: battery warranty is 1 year)

Honeywell FocusBT Reviews

POSGuys Rating:

The Metrologic Focus BT is an extraordinary Bluetooth scanner with the added feature of reading 2D barcodes, which is something that most cordless scanners don’t have. The BT would be ideal for healthcare, retail, light industrial and supply-chain applications where a cordless scanner is necessary and a 2D imager would be great to have on site.

Read the comprehensive Honeywell FocusBT Review by POSGuys' Staff
