Honeywell Voyager BlueTooth

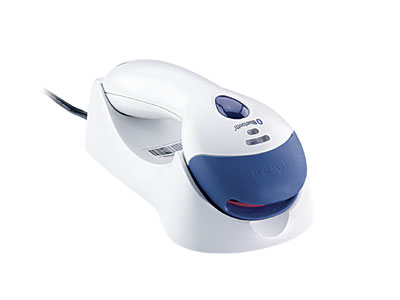

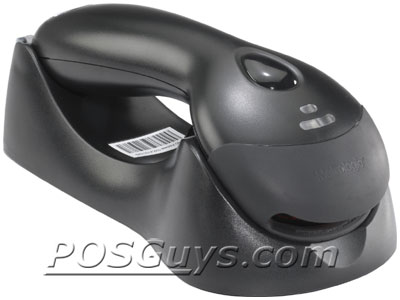

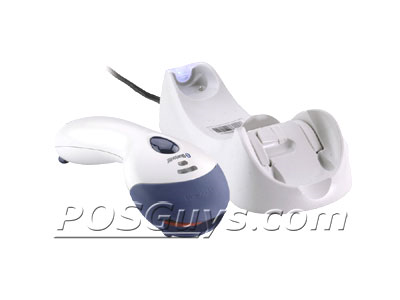

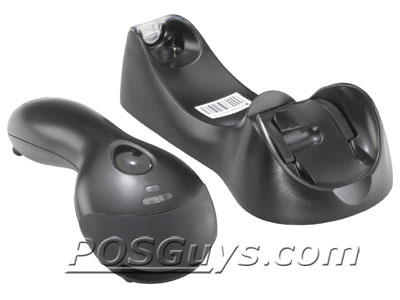

The pictures shown are general images for product Voyager BlueTooth and may not be applicable to all part numbers

Voyager BlueTooth Barcode Scanner

The Honeywell Voyager BlueTooth has reached end of life.

With a futuristic design incorporating BlueTooth wireless technology, the MS9535 Voyager-BT provides high-performance cordless barcode scanning for light industrial, point-of-sale, and healthcare applications.

Metrologic's patented CodeGate technology allows activation of the barcode scanner's IR sensor. Simply press the Voyager-BT CodeGate button, scan, and the barcode information is transmitted wirelessly to the host.

With precise control for menu scanning, mobile freedom for scanning heavy or bulky items at the point of sale, and ultra-comfortable ergonomics, the Voyager-BT offers improved productivity for all working environments.

    MS9535 Voyager-BT Features Include:
  • Reads standard barcode symbologies including RSS
  • 10 meter wireless scanning range
  • Up to 14,000 scans per charge
  • 2.5 hour recharge time
  • 72 scan lines per second

The Honeywell Voyager BlueTooth has reached end of life with limited stock available. We recommend the Voyager 1202g as a suitable replacement.
Product Specifications
Dimensions Scanner: 7.8 x 3.1 x 2.2 in
Cradle: 8.1 x 3.9 x 2.0 in
Weight Scanner: 7.0 oz
Cradle: 7.9 oz
Color Options Black
Interfaces Available USB
Keyboard Wedge
Scan Method Single Line Laser Scanner
Decoding Capabilities Reads standard 1D and GS1 DataBar symbologies
Mobility/Range Bluetooth v1.2 Class 2 (2.4 to 2.4835 GHz ); 10 m (33’) line of sight
Battery 1100 mAh Li-ion
Operating Time Up to 12,000 scans per charge (8 hours)
Recharge Time 2.5 Hours
Scan Rate (Maximum) 72 scan lines per second
Reading Angle Pitch: 68°, Skew: 52°
Print Contrast (Min.) 35% minimum reflectance difference
Typical Depth of Field 5.2 mil: 0 mm - 51 mm (0 - 2.0")
7.5 mil: 0mm - 127 mm (0 - 5.0")
10 mil: 0 mm - 165 mm (0 - 6.5")
13 mil: 0 mm - 203 mm (0 - 8.0")
Indicators LED (Blue=Laser On, Yellow: Auto Trigger On, White: Good Read)
Adjustable Beep (7 Tones or No Beep)
Auto Sense Mode n/a
Environmental Sealing Sealed to resist airborne particulate contaminants
Operating Temperature 0°C to 40°C (32°F to 104°F)
Drop Specification Designed to withstand 1.5 m (5´) drops
Ambient Light (Max) 4842 Lux
Stand Charging Cradle
Warranty 2 year factory warranty (Note: battery warranty is 1 year)

Honeywell Voyager BlueTooth Reviews

POSGuys Rating:

If you are interested in code gate, a locator or limited scanning after losing the signal, this is a notable scanner. It would do best in retail environments where a cordless scanner is essential; possibly electronic or appliance stores.

Read the comprehensive Honeywell Voyager BlueTooth Review by POSGuys' Staff
