Honeywell Xenon Ultra 1962g

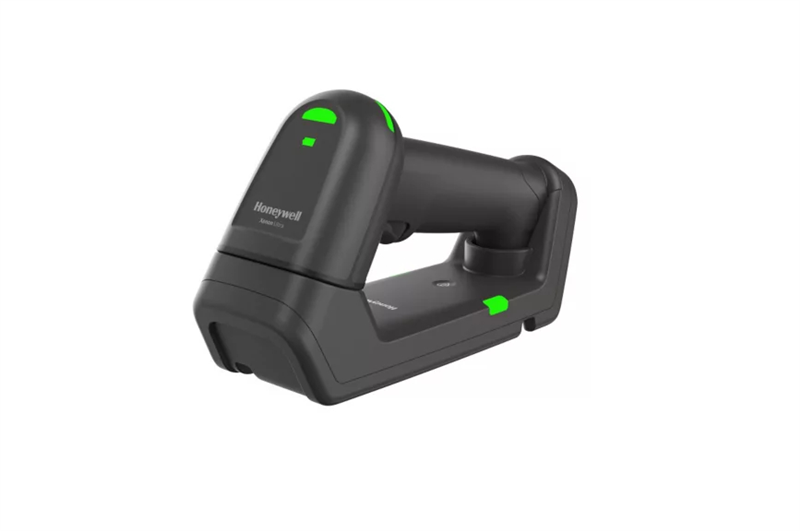

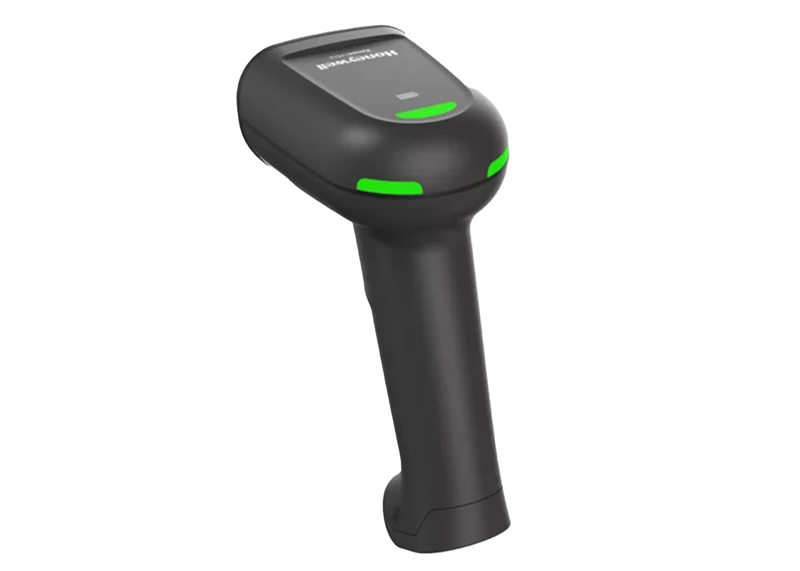

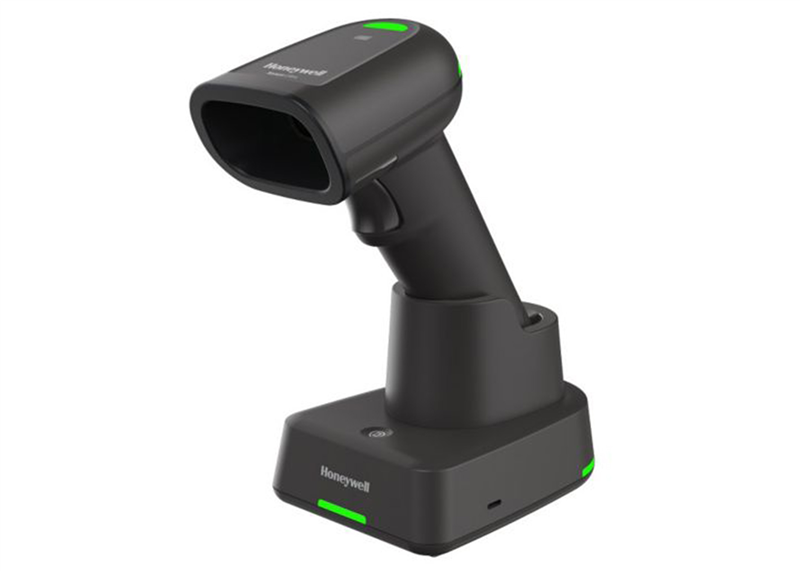

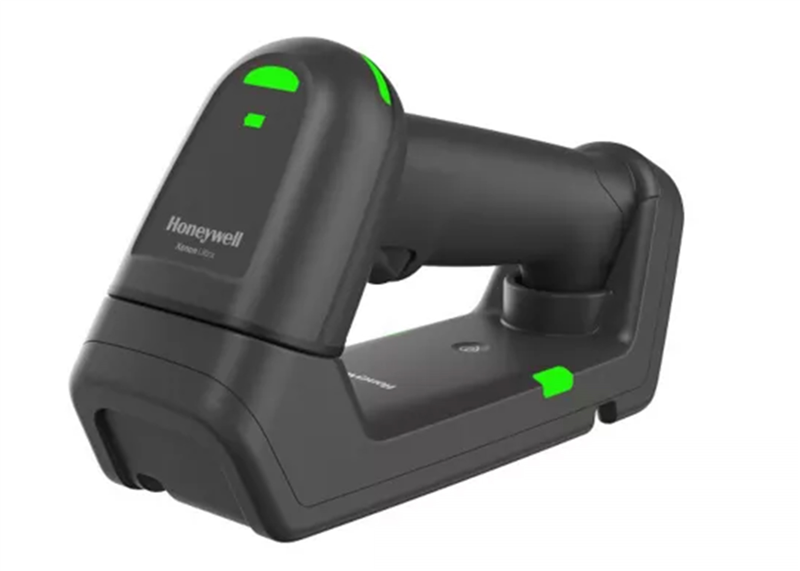

Xenon Ultra 1962g Product Image

The pictures shown are general images for product Xenon Ultra 1962g and may not be applicable to all part numbers

Xenon Ultra 1962g Barcode Scanner


This product replaces the older Honeywell Xenon XP 1952g.

Continuing the legacy of barcode technology, Honeywell’s Xenon Ultra delivers enhanced scan performance and premium features for retailers.

The Xenon Ultra 1962g incorporates Honeywell’s next generation of scanning capability – allowing retailers to stay productive and keep customer service as their top priority.

Freedom of movement around POS terminals, conveyors, and customers is a continued challenge for today’s retail associates. As more technology is packed into the streamlined modern-day POS station, free space is at a premium. The Xenon Ultra cordless scanner can help ensure that your associates’ attention is kept on maximizing customer experience by eliminating wasted time managing cables and having more space for completing transactions.

One scanner can now accept multiple power sources. Available with a battery-free supercapacitor or standard lithium-ion battery, both power options are also available in contactless orientations.

The battery-free technology runs on supercapacitors instead of a battery and is capable of achieving a full charge in less than four minutes via the USB Port (under 60 seconds when using a powered USB port or external wall adapter). The Xenon Ultra 1962g-BF scanner typically provides at least 450 scans without recharging. This makes the scanner ideal for applications such as self-checkout or as a secondary scanner to a bioptic scanner.

Features - Honeywell Xenon Ultra 1962g/li

  • Improved Scanning
    In addition to a green-dot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
  • Contactless Charging
    The Xenon Ultra 1962 battery and battery-free are available in a premium contactless version, helping reduce the number of failed devices due to corrosion.
  • Battery Free with Supercapacitors
    Supercapacitors hold their charge for hours when fully charged. So operators who forget to place their scanner in the charger prior to break may not impact operations upon return.
  • Swap between Battery or Supercapacitor
    The Xenon Ultra 1962 scanner can accept a lithium-ion battery or a battery free supercapacitor, allowing enterprises to have mixed device pools and flexibility in their fleets.
  • Low Power Alert
    Two independently configurable recharge alerts remind the operator to place the scanner back into the base for charging, ensuring continuous operation.
Product Specifications
Dimensions (LxWxH) Scanner: 108.2 mm x 70.4 mm x 160.2 mm (4.3 in x 2.8 in x 6.3 in)
Presentation Base: 82.9 mm x 90.4 mm x 121.6 mm (3.3 in x 3.6 in x 4.8 in)
Desktop/Wall Mount Base: 211.3 mm x 74.2 mm x 77.7 mm (8.3 in x 2.9 in x 3.0 in)
Weight Lithium-ion Scanner: 247 g / 255 g (contactless)
Battery Free Scanner: 218 g /227 g (contactless)
Presentation Base: 214 g / 220 g (contactless)
Desktop/Wall Mount Base: 223 g / 229 g (contactless)
Drop Engineered to withstand 50 drops at 1.8 m (6 ft) to concrete across operating temp range
Mil Spec Drop 8 ft
Tumble 2,000 at 0.5 m (1.6 ft)
Environmental Sealing Scanner: IP52
Base: IP41
Decode Capabilities Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Note: Decode capabilities dependent on configuration
Radio/Range 2.4GHz Bluetooth radio v4.2 with Adaptive Frequency Hopping.
Class 1: 100 m line of sight (default), programmable to Class 2: 10 m line of sight
BLE available
Battery Capacity: 3300 mAh Li-ion (min)
Number of Scans (1scan/sec): up to
80,000 scans per charge
Expected Duration of Operation: 22 hrs
Expected Charge Time: 4.5 hrs
Battery-free Supercapactior (based on default settings) – data based on utilization of power adapter
Expected full charge time: < 60 seconds
Number of scans fully charged: 450 Charge Cycles: 500,000
Warranty 1962 (cordless)
Scanner: 3 year factory warranty
Supercapacitor: 5 year factory warranty
Lithium-ion Battery Pack: 1 year

Honeywell Xenon Ultra 1962g Reviews

POSGuys Rating: Not Rated

Customer Reviews

Recommended Models

1962G Battery Free USB Kit: Black general purpose housing, SR Focus, USB Type A 2.7M straight cable (3012-6337-001), Contactless Presentation Charge and Communication base (CCB-U00-G & 1962G-BAT-CUP), US&C only
$1141.76 Add to Cart
Contactless Charging:Contactless Charging
Cradle Type:Presentation Cradle
Color:Black
Scan Engine:Standard
1962G USB Kit: Black general purpose housing, SR Focus, USB Type A 2.7M straight cable (3012-6337-001), Presentation Charge and Communication base (CCB-U00-G & 1962G-BAT-CUP), US&C ONLY
$1129.83 Add to Cart
Cradle Type:Presentation Cradle
Color:Black
Scan Engine:Standard
1962G USB Kit: Black General Purpose, SR Focus, USB Type A 2.7M straight cable (3012-6337-001), Wallmount Charge and Communication base (CCB-ULTRA-HORIZ-GP),
$1204.25 Add to Cart
Cradle Type:Wallmount Charge
Color:Black
Scan Engine:Standard
1962G Battery-Free USB Kit: Black general purpose housing, SR Focus, USB Type A 2.7M straight cable (3012-6337-001), Wallmount Charge and Communication base (CCB-ULTRA-HORIZ-GP)
$1208.44 Add to Cart
Cradle Type:Wallmount Charge
Color:Black
Scan Engine:Standard
1962G Battery-Free Contactless Charging USB Kit: Black general purpose housing, SR Focus, USB Type A 2.7M straight cable (3012-6337-001), Wallmount Charge and Communication base (CCB-ULTRA-HORIZ-GPWC)
$1265.99 Add to Cart
Contactless Charging:Contactless Charging
Cradle Type:Wallmount Charge
Color:Black
Scan Engine:Standard
1962G Wireless Charging USB Kit: Black general purpose housing, SR Focus, USB Type A 2.7M straight cable (3012-6337-001), Wallmount Charge and Communication base (CCB-ULTRA-HORIZ-GPWC)
$1265.99 Add to Cart
Cradle Type:Wallmount Charge
Color:Black
Scan Engine:Standard
1962G USB Kit: Black general purpose housing, SR Focus, USB Type A 2.7M straight cable (3012-6337-001), Presentation Charge and Communication base (CCB-U00-G & 1962G-BAT-CUP), US&C ONLY"
$1309.20 Add to Cart
Cradle Type:Presentation Cradle
Color:Black
Scan Engine:Standard

Additional Models

1962G USB Kit: Black general purpose housing, HD Focus, USB Type A 2.7M straight cable (3012-6337-001), Presentation Charge and Communication base (CCB-U00-G & 1962G-BAT-CUP), US&C ONLY
$1141.76 Add to Cart
Cradle Type:Presentation Cradle
Color:Black
Scan Engine:High Density Focus
1962HC USB Kit: White Anti-microbial housing, HD Focus, USB Type A 2.7M straight cable (3012-6337-001), Presentation Charge and Communication base (CCB-U00-H & 1962H-BAT-CUP), US&C ONLY
$1173.37 Add to Cart
Cradle Type:Presentation Cradle
Color:White
Scan Engine:High Density Focus
1962HC Battery Free USB Kit: White Anti-microbial housing, HD Focus, USB Type A 2.7M straight cable (3012-6337-001), Presentation Charge and Communication base (CCB-U00-H & 1962H-BAT-CUP), US&C ONLY
$1180.40 Add to Cart
Cradle Type:Presentation Cradle
Color:White
Scan Engine:High Density Focus
1962HC Battery free USB Kit: White Anti-microbial housing, HD Focus, USB Type A 2.7M straight cable (3012-6337-001), Contactless Presentation Charge and Communication base (CCB-U00-H & 1962H-WC-CUP), US&C ONLY
$1256.80 Add to Cart
Contactless Charging:Contactless Charging
Cradle Type:Presentation Cradle
Color:White
Scan Engine:High Density Focus
1962HC USB Kit: White Anti-microbial housing, HD Focus, USB Type A 2.7M straight cable (3012-6337-001), Contactless Presentation Charge and Communication base (CCB-U00-H & 1962H-WC-CUP), US&C ONLY
$1256.80 Add to Cart
Contactless Charging:Contactless Charging
Cradle Type:Presentation Cradle
Color:White
Scan Engine:High Density Focus
1962HC USB Kit: White Anti-microbial housing, SR Focus, USB Type A 2.7M straight cable (3012-6337-001), Presentation Charge and Communication base (CCB-U00-H & 1962H-BAT-CUP), US&C ONLY
$1184.40 Add to Cart
Cradle Type:Presentation Cradle
Color:White
Scan Engine:Standard
1962HC Battery free USB Kit: White Anti-microbial housing, SR Focus, USB Type A 2.7M straight cable (3012-6337-001), Contactless Presentation Charge and Communication base (CCB-U00-H & 1962H-WC-CUP), US&C ONLY
$1256.80 Add to Cart
Contactless Charging:Contactless Charging
Cradle Type:Presentation Cradle
Color:White
Scan Engine:Standard
1962HC USB Kit: White Anti-microbial housing, SR Focus, USB Type A 2.7M straight cable (3012-6337-001), Contactless Presentation Charge and Communication base (CCB-U00-H & 1962H-WC-CUP), US&C ONLY
$1256.80 Add to Cart
Contactless Charging:Contactless Charging
Cradle Type:Presentation Cradle
Color:White
Scan Engine:Standard
