Honeywell Xenon XP 1932g
The pictures shown are general images for product Xenon XP 1932g and may not be applicable to all part numbers

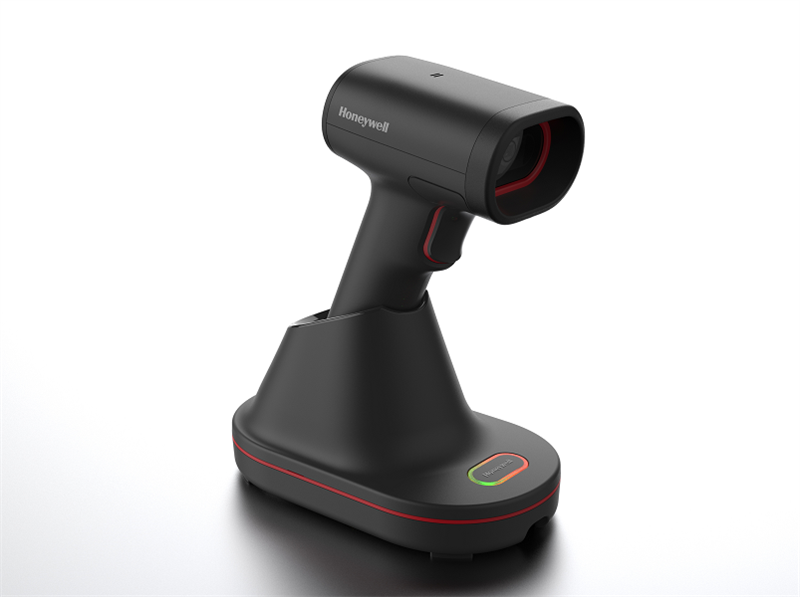

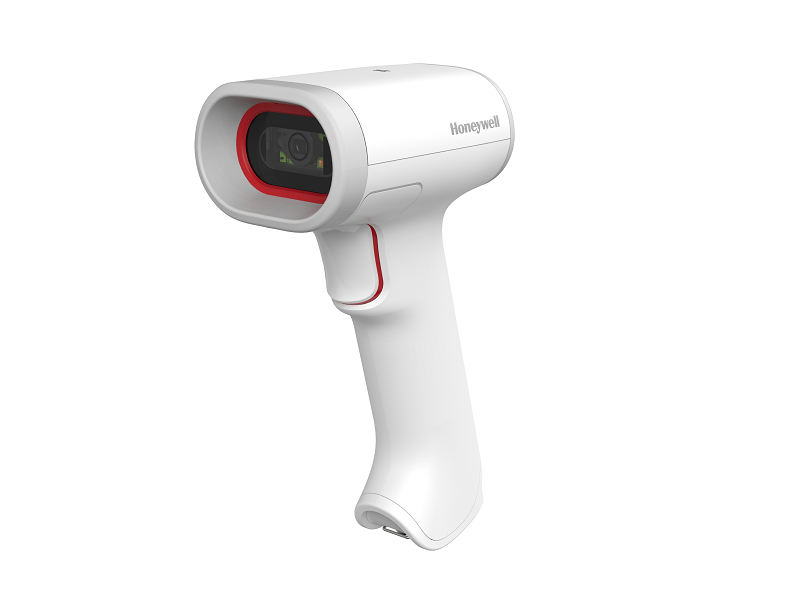

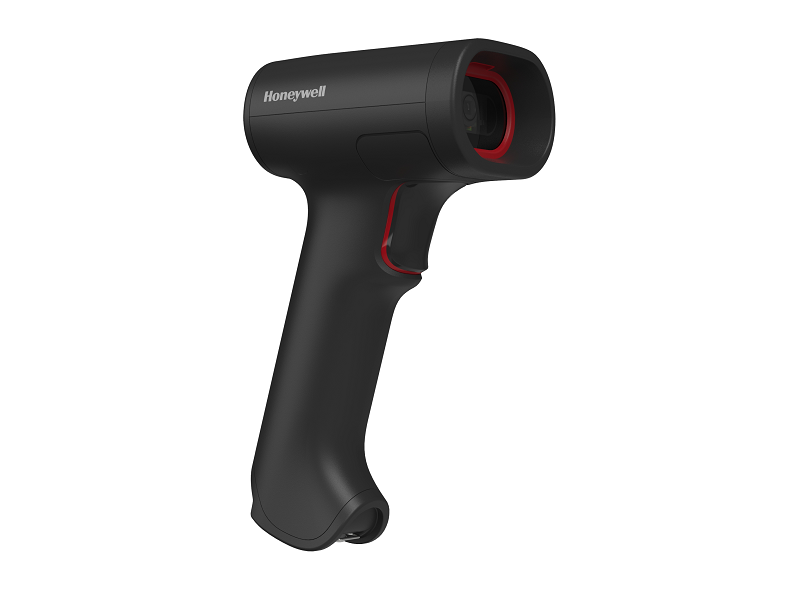

Xenon XP 1932g Barcode Scanner
The Honeywell Xenon XP 1932g has reached end of life.
| Product Specifications | |
|---|---|
| Dimensions | 99 mm x 64 mm x 165 mm (3.9 in x 2.5 in x 6.5 in) 1932g Presentation Base: 160 mm x 90 mm x 91 mm (6.3 in x 3.5 in x 3.6 in) 1932g Desktop/Wall Mount Base: 226 mm x 67 mm x 81 mm (8.9 in x 2.6 in x 3.2 in) |
| Weight | Battery-Free: 212 g (7.5 oz) With Battery: 240 g (8.5 oz) 1932g Presentation Base: 213 g (7.5 oz) 1932g Desktop/Wall Mount Base: 237 g (8.4 oz) |
| Interfaces Available | Bluetooth; Cradle Interfaces: USB, Keyboard Wedge, RS-232, IBM 46xx (RS485) |
| Colors Options | Black, Lyric White |
| Scan Method | Area Image (1240 x 800 pixel array) |
| Decoding Capabilities | Reads standard 1D, PDF, 2D, Postal Digimarc, and OCR symbologies Note: Decode capabilities dependent on configuration |
| Mobility/Range | 2.4 GHz to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth® v4.2; Class 2: 10 m (33 ft) line of sight or BLE: 10 m (33 ft) line of sight |
| Motion Tolerance | Up to 460 cm/s (181 in/s) for 13 mil UPC at optimal focus |
| Reading Angle | SR: Horizontal: 41° Vertical: 33° HD: Horizontal: 41° Vertical: 33° |
| Print Contrast | 20% minimum reflectance difference |
| Indicators | Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (adjustable), Charge Status Indicator |
| Healthcare Specific Model | Optional 1932h Healthcare White Version |
| Drivers License Data Parsing | Option DL Parsing Model Available |
| Operating Temperature | Scanner: 0°C to 50°C (32°F to 122°F) 1932g Bases: Charging: 5°C to 40°C (41°F to 104°F) Non-Charging: 0°C to 50°C (32°F to 122°F) |
| Drop Specifications | Engineered to withstand 50 1.8 m (6 ft) drops to concrete |
| IP Seal Rating | IP42 Sealed against large-grit debris and water drops |
| Ambient Light (Max) | 0 to 100,000 lux (9,290 foot-candles) |
| Warranty | 3 Year Factory Warranty (Note: Super-Cap Pack warranty is 5 years; Battery Pack warranty is 1 year.) |
